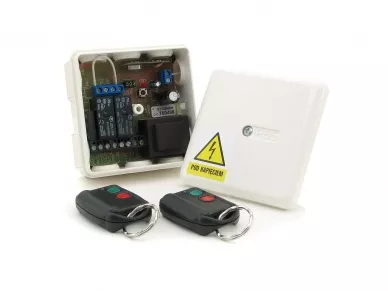

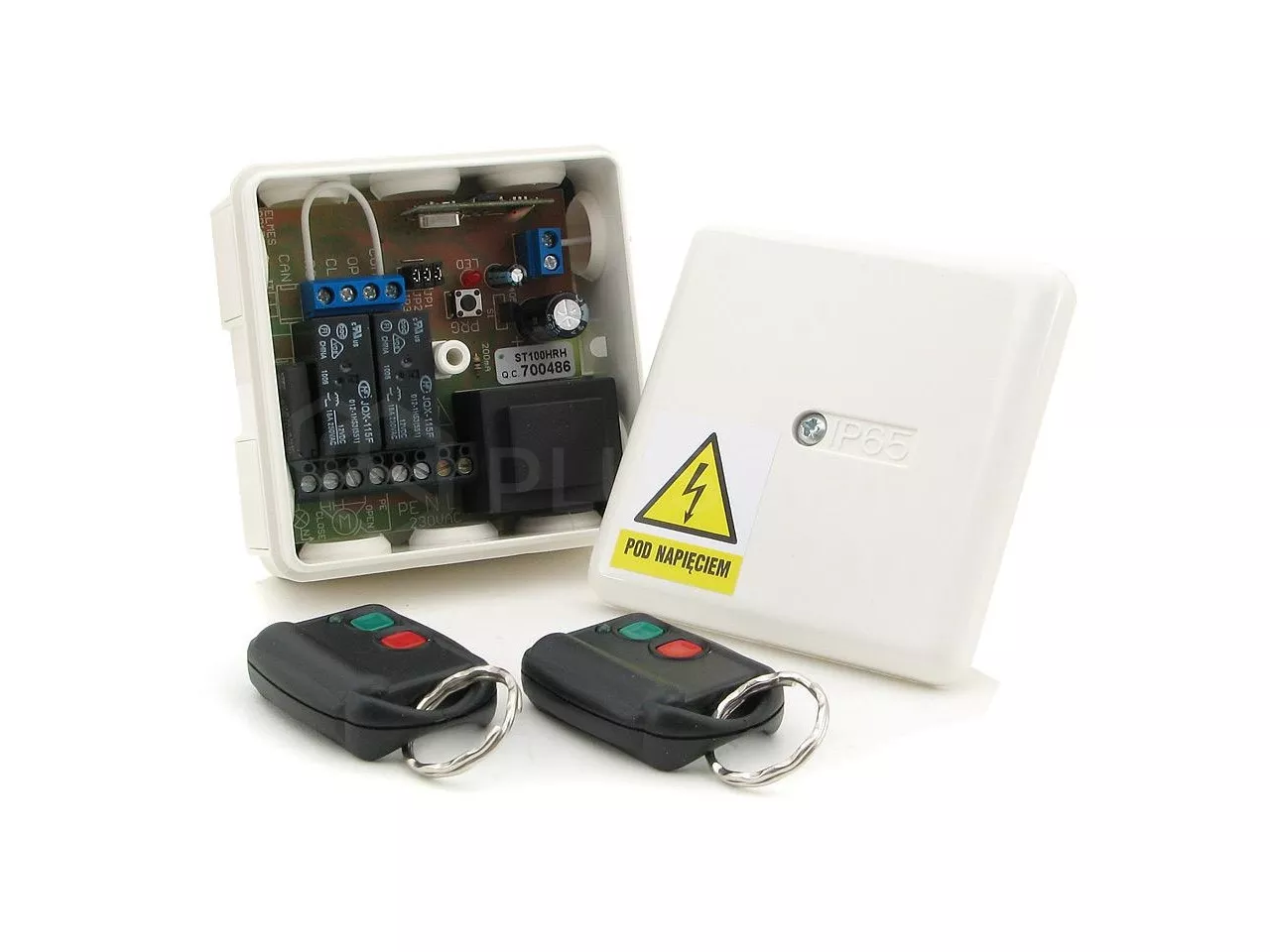

Elmes ST100HS Roller shades control set

The set is intended for remote control of roller shutters, gates and others devices using an AC 230V induction motor.
The set is a comprehensive solution that will allow you to expand the gate drive or blinds with additional useful functions.

The set includes two DWB100HT two-channel remote controls.

REMOTE PARAMETERS

• two-channel remote control

• operating frequency 433.92MHz
• power 3-5mW
• range: 100m in open space

• power supply: GP23A 12V battery
• dimensions (length/width/height) 50x37x14mm


We can program a maximum of 12 remote controls to the receiver.
Wireless transmission is secured by the KEELOQ rolling code system which ensures high safety of use.

The ST100HS set has the following functionalities:

• works with 1 or 2 remote control buttons
• controls an external lamp that can perform the following functions
• • warning light flashes slower when opening, faster during opening closing
  • lighting illuminates continuously while the gate is moving and through programmed time after stopping (this is the time equal to PAUSE)
• automatic closing after the programmed PAUSE time (1s - 4min)
• automatic opening of the gate after the photocell is activated in time closing
• The pause time is automatically extended when the photocell is activated

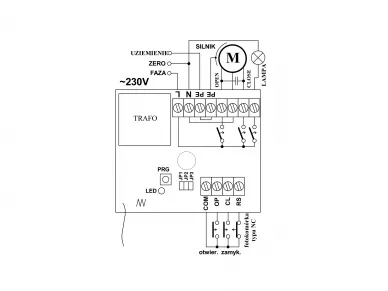

Connect directly to the receiver:

• mains voltage AC 230V
• engine
• warning lamp
• wall switches
• photocells

Depending on the configuration, the controller works with 1 or 2 remote control buttons:

• Mode 1, cooperation with 2 remote control buttons
• • one button switches the controller in the OPEN - STOP - cycle OPENING...,
  • and the second one: CLOSE - STOP - CLOSE...
• Mode 2 cooperation with 1 remote control button
• • OPEN - STOP - CLOSE - STOP…
