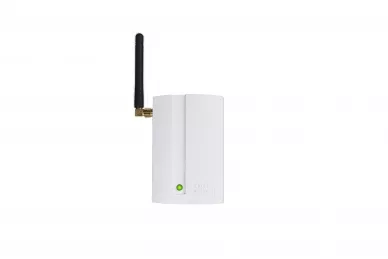

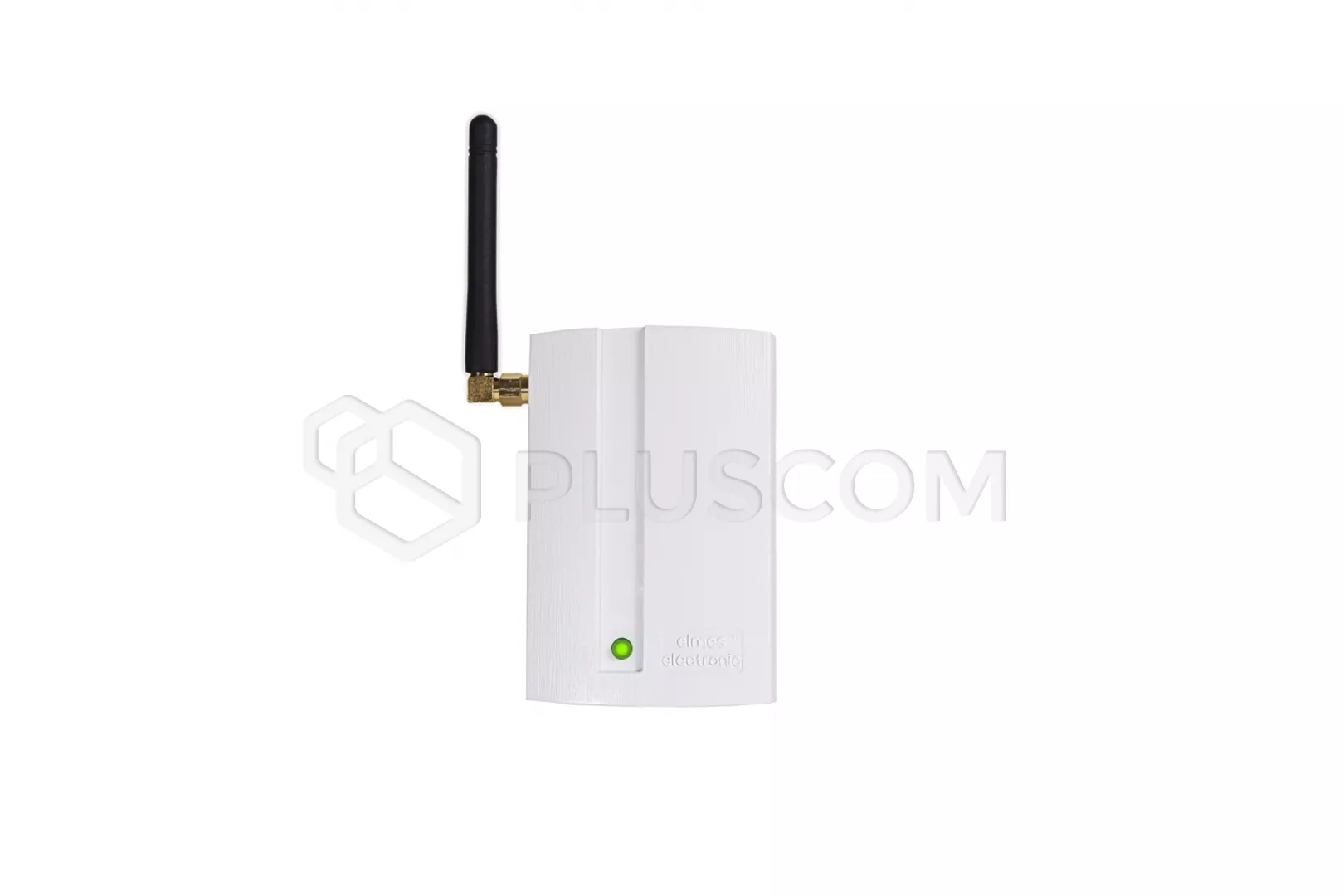

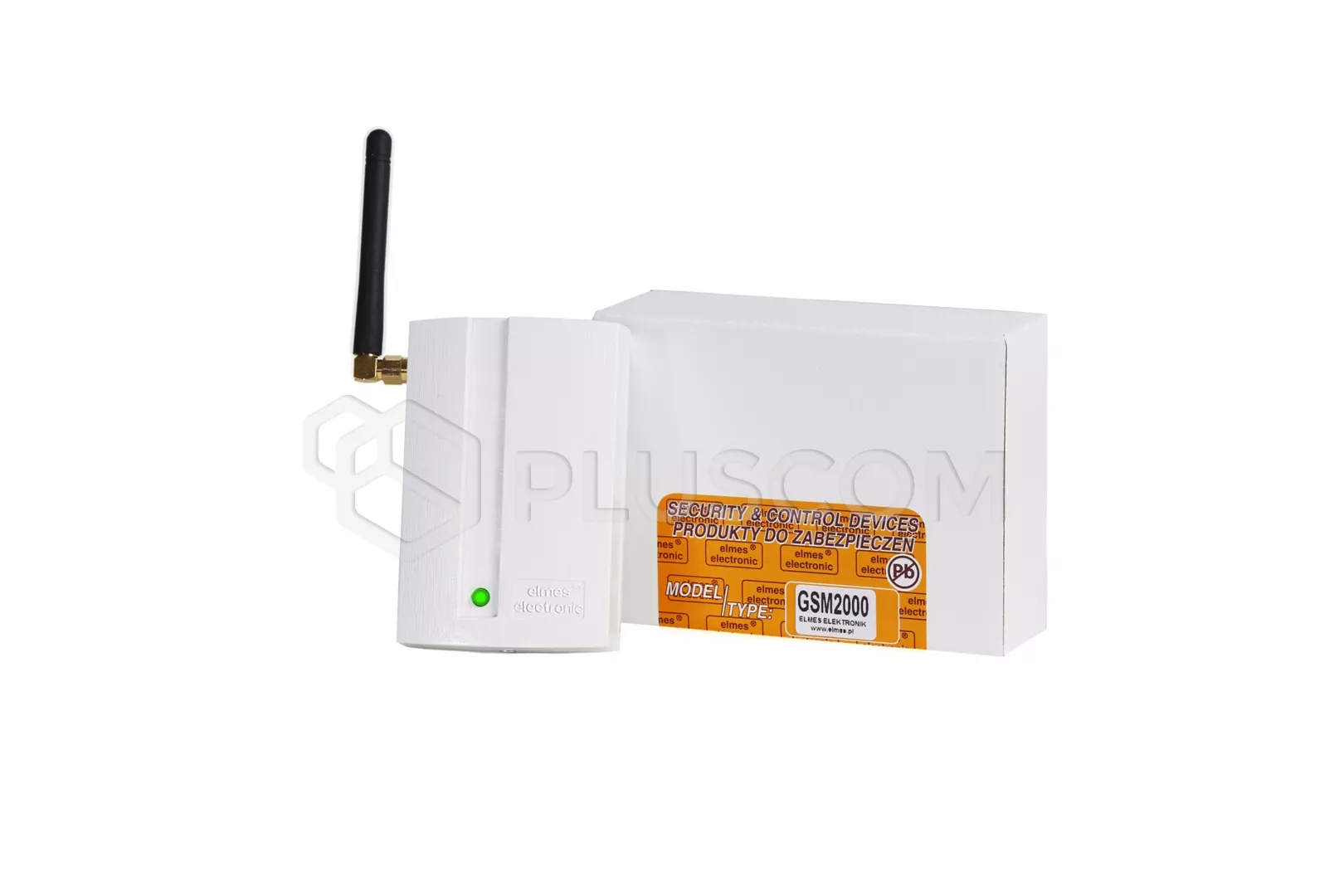

Elmes GSM2000TX Universal GSM module

102,31 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #27216
Manufacturer: Elmes
  • Built-in radio transmitter (434MHz)
  • Implements SMS notification, call CLIP
  • Notifications for 6 numbers
  • Support 2048 phone numbers
  • 4x inputs, 4x outputs NC/NO
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Elmes ANTENA GSM external antenna

Elmes GSM2000TX Universal GSM module

The GSM2000TX module has all the features of the GSM2000 module, and additionally has a built-in radio transmitter for the 434 MHz band, which allows you to control Elmes Elektronik receivers. Control is carried out by sending an SMS with the content Pmn to the module, where m=1..8 is the remote control number and n=1..8 is the remote control button number. For example, sending an SMS with the content P72 will result in sending a 1-s radio transmission corresponding to pressing the second button of the seventh remote control. One SMS can be included up to 15 such commands, which will be sent sequentially every second. Attention. The GSM2000TX module does not have a TAMPER anti-sabotage terminal.

Works perfectly with the CB32 alarm control panel or ELMES receivers systems from other manufacturers.

  • The module informs about events in alarm systems or systems control via SMS and CLIP
  • messages
  • The module allows you to remotely control the devicesand which ones are connected to its outputs via SMS or CLIP.
Works with any mobile phone network (900/1800/1900MHz).

MOST IMPORTANT FEATURES:
  • Built-in radio transmitter (434MHz)
  • integrated GSM mobile telephony module
  • 4 control inputs with programmable switching level
  • 4 outputs relay, galvanically isolated NO or type NC
  • output operating modes: monostable / bistable
  • memory of 6 numbers for notificationsSMS and CLIP
  • activating SMS and CLIP outputs from up to 2048 numbers
  • fully editable phone list
  • GSM module self-diagnosis by sending SMS or CLIP to one or more two telephone numbers at a specific time of day or every specific period
  • limiting the number of SMS messages per day

Programming and configuration of the module settings is performed from a computer PC with the "GSM2 Configurator" program installed connect the module to computer using the popular mini-USB type B cable. The cable must be purchased separately. Connecting to a computer requires installing appropriate drivers available in the DOWNLOAD section on our website.
- mini-USB Cable drivers - drivers for modules currently produced
- USB Cable drivers - drivers for older versions of modules

INSTALLATION and CONSTRUCTION
The module should be installed indoors. You should choose a place where there is good GSM network coverage. It is possible to connect to the SMA input external GSM antenna. The device housing is equipped with an opening sensor tamper.

Preparing the SIM card:
  • cleared SMS memory and phone book
  • voicemail disabled
  • disable PIN security
  • or when the function is enabled, set the PIN to 1234, otherwise the card will be blocked
