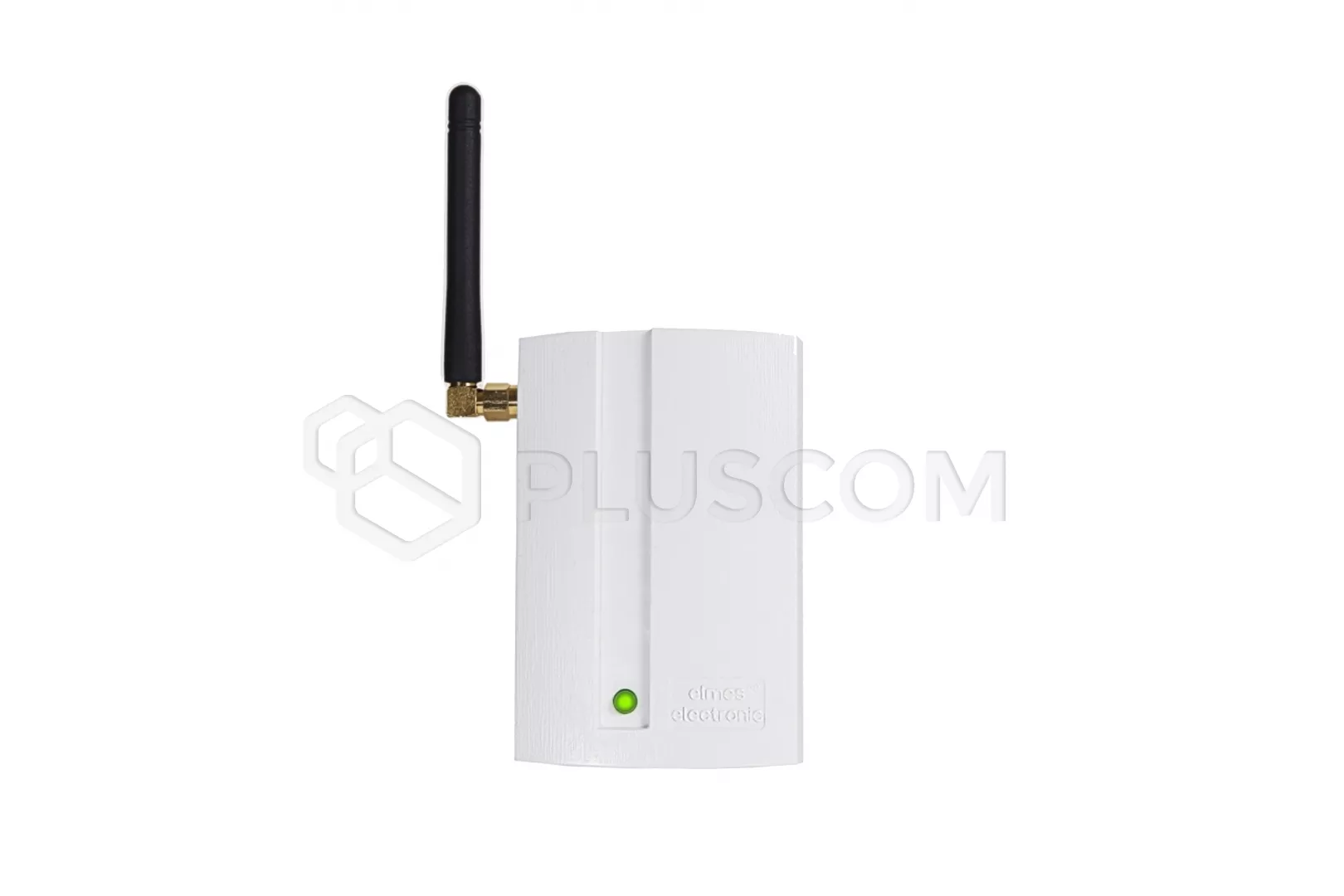

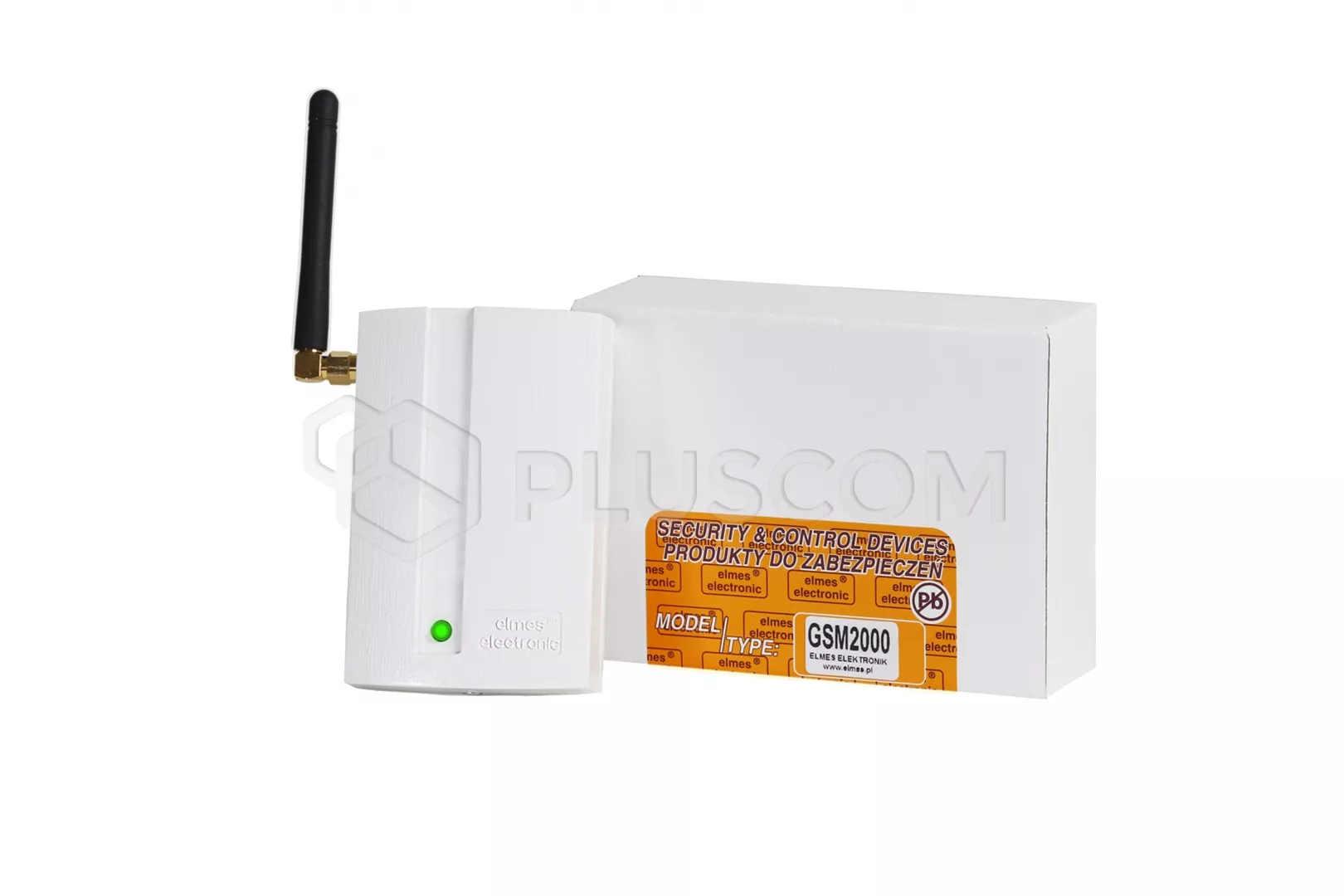

Elmes GSM2000 Universal GSM module

Elmes GSM2000 is a universal GSM module alerts and remote control.

PRODUCT UNAVAILABLE, HAS BEEN REPLACED WITH THE GSM2000LTE MODULE

It works perfectly with the CB32 control panel or receivers ELMES as well as with systems from other manufacturers.

• The module informs about events in alarm systems or control systems via SMS and CLIP
• The module allows for remote control of devices that are connected to the outputs via SMS or CLIP.


It works with any mobile network (900/1800/1900MHz).

KEY FEATURES:

• integrated module GSM mobile phone
• 4 control inputs with programmable switching levels
• 4 relay outputs, galvanically isolated NO or NC
• Output modes: monostable / bistable
• the memory of 6 numbers for SMS notifications and CLIP
• switching outputs SMS, CLIP with up to 2048 numbers
• fully editable phone list
• autodiagnostics GSM module by sending an SMS or CLIP to one or two phone numbers at a specific time of the day or at a specified time
• limiting the number of SMS messages per day


Programming and configuration settings for the module is made with a PC with installed "GSM2 Configurator" module is connected to the computer using the popular mini-USB cable type B cable must be purchased separately. Connecting to a computer requires that you install the appropriate drivers available in the DOWNLOAD section on our website.

• Mini-USB Cable drivers - drivers for modules produced currently
• USB Cable drivers - drivers for older versions of the modules


INSTALLATION AND CONSTRUCTION
Module should be installed indoors. Select a place which is good GSM coverage. You can connect to the input of an external GSM antenna SMA. The housing is equipped with a sensor to open the tamper.

Preparing the SIM card:

• erased SMS memory and phonebook
• off voicemail
• disable the PIN code protection
• or when a function is included to set the PIN to 1234 in another case, the card will be blocked
