Elero JA 06 Comfort-SMI Shutter motor 6Nm

286,45 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #27524
  • Venetian blind motor
  • Electronic limit switch
  • SMI interface
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

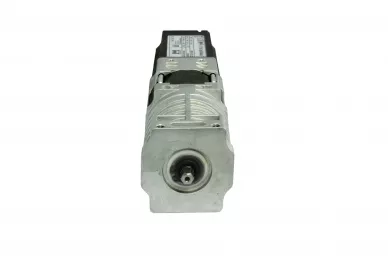

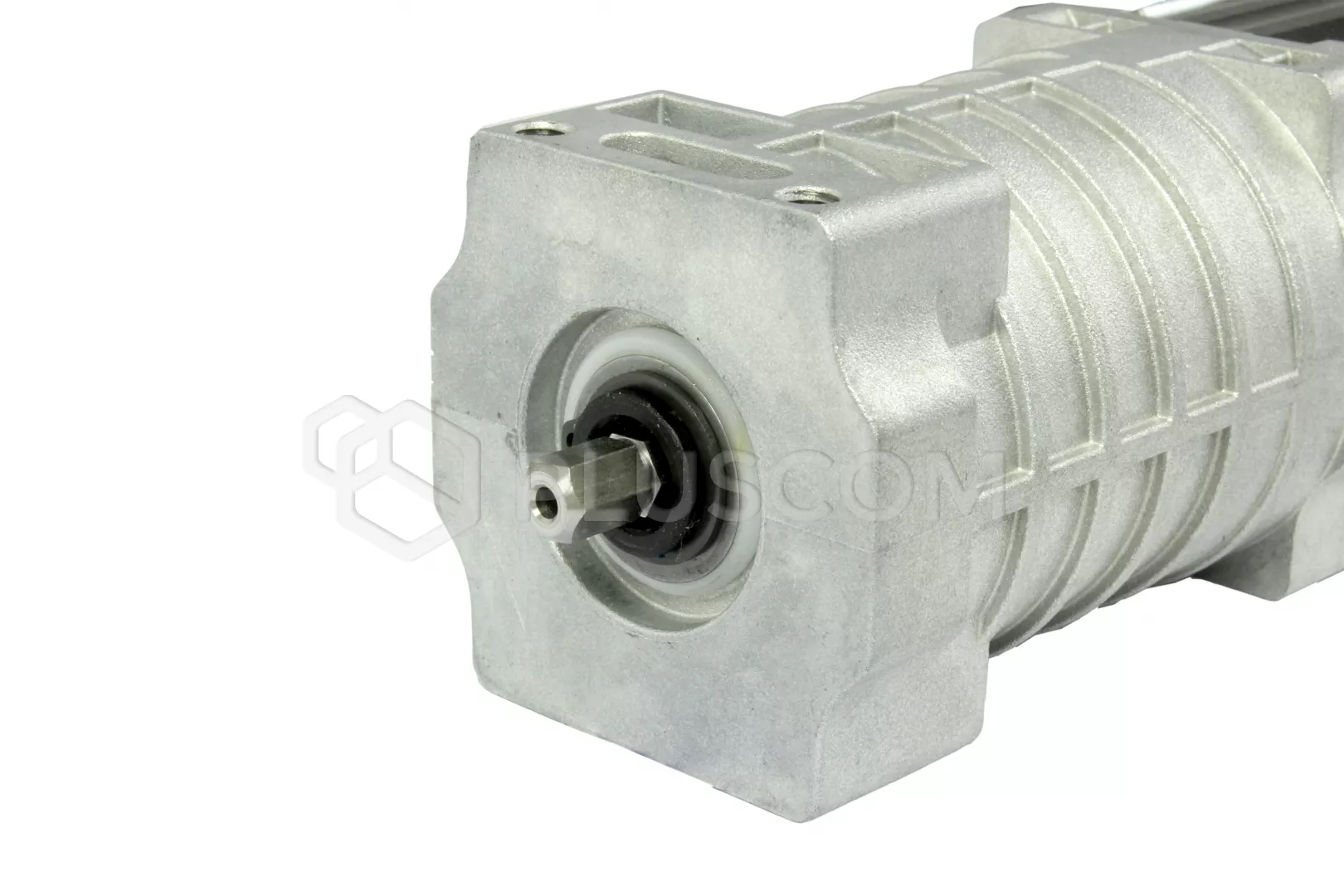

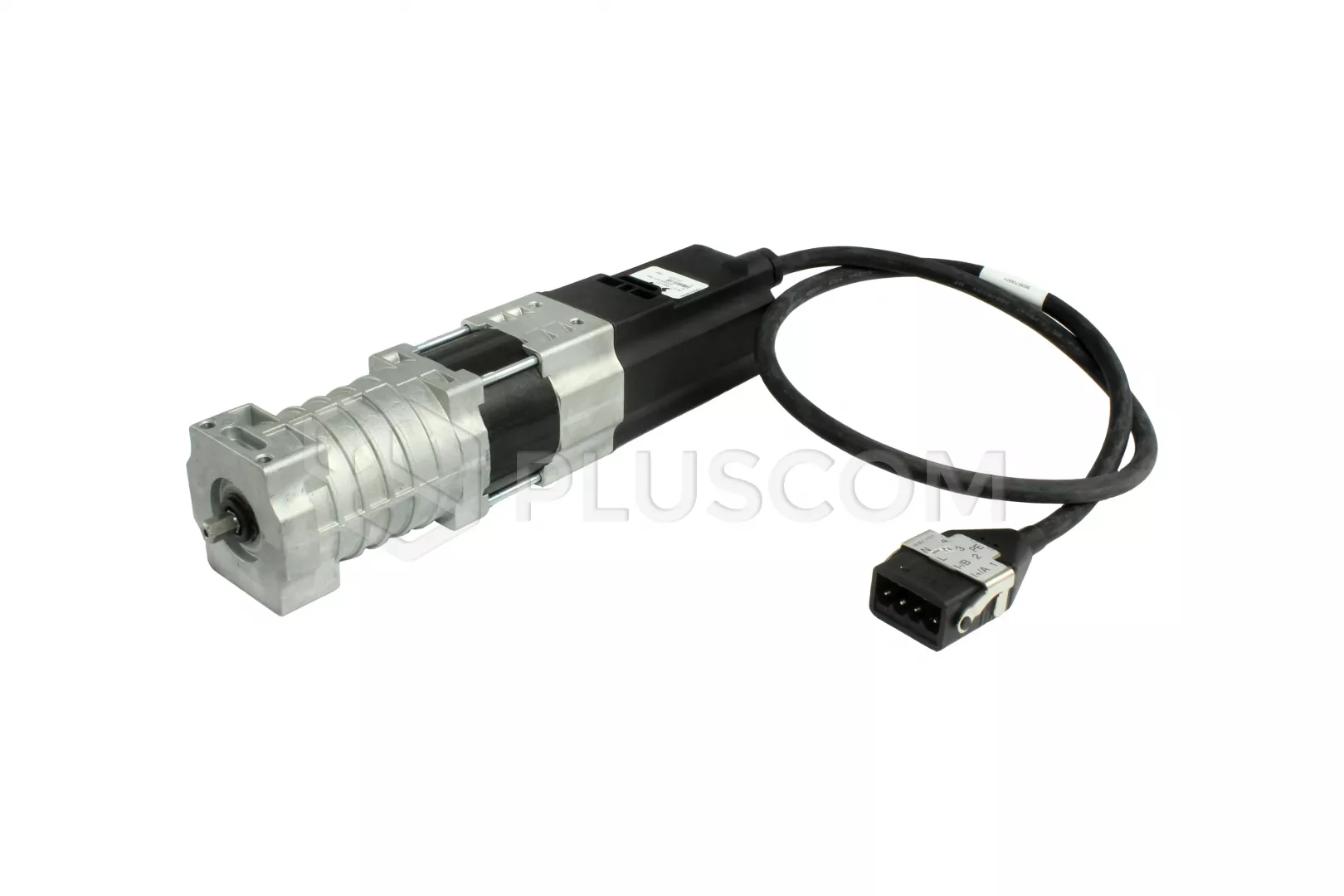

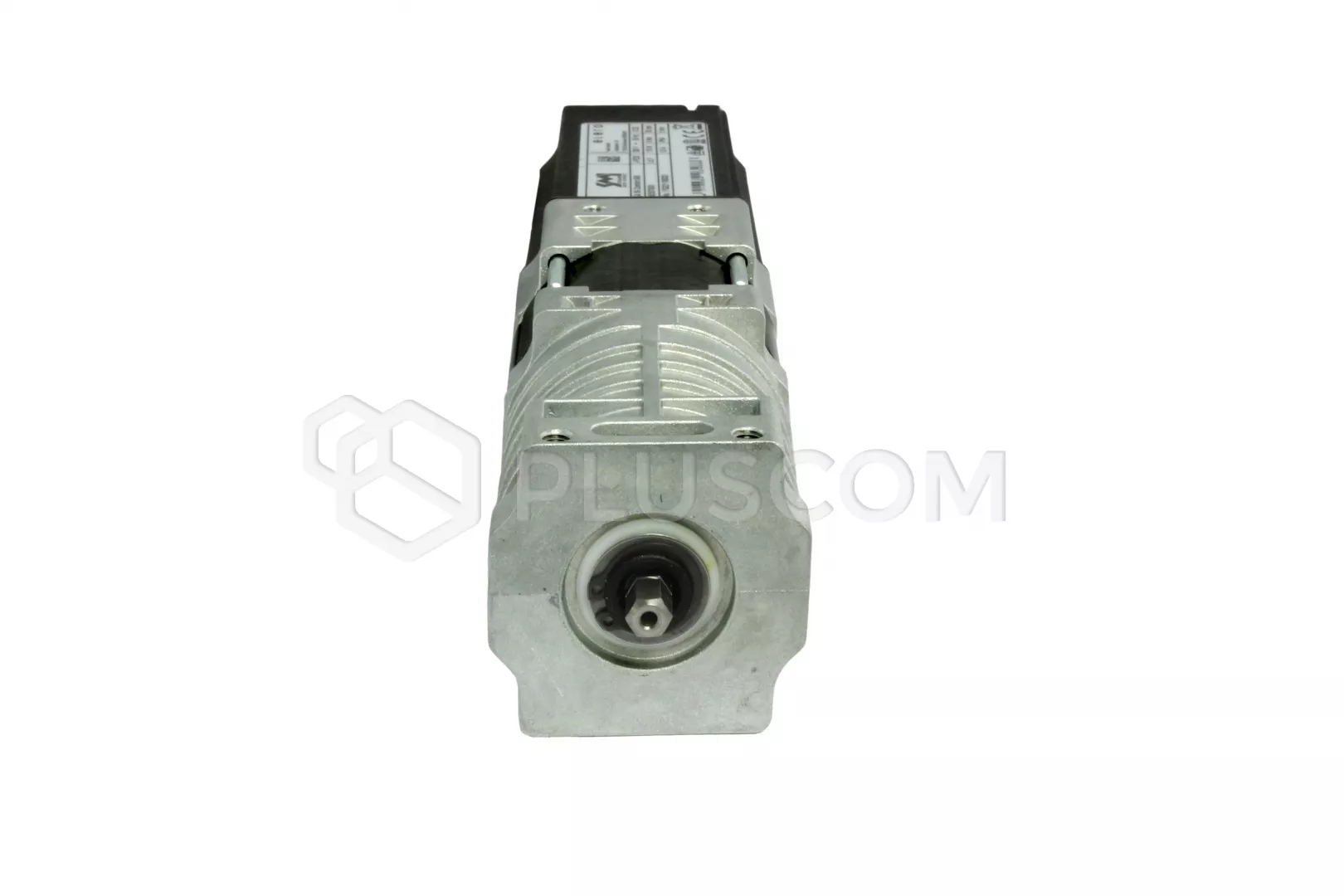

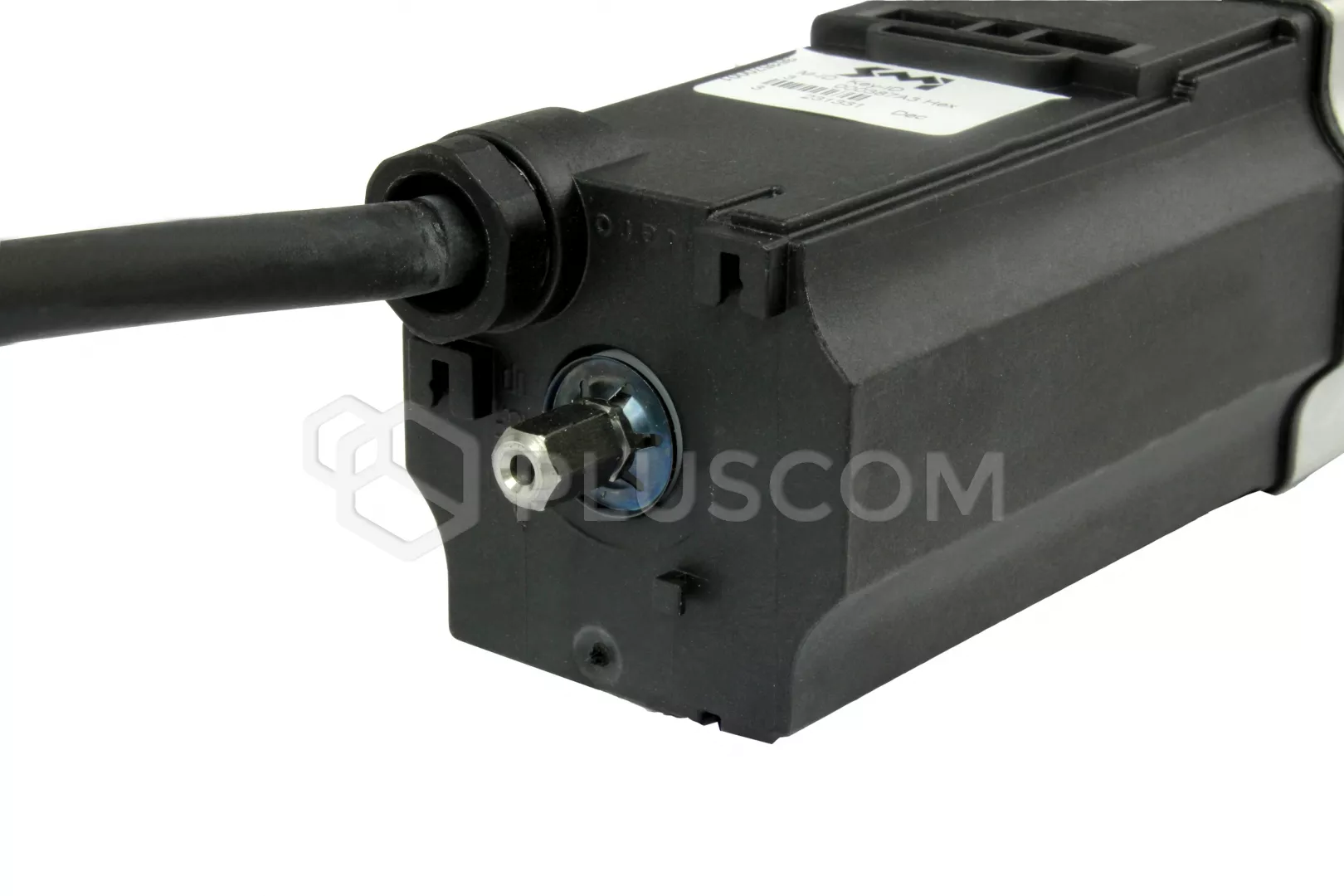

JA 06 Comfort SMI Venetian blind motor with electronic limit switch and integrated SMI


JA 06 Comfort SMI is a shutter drive with electronic limit switch i integrated SMI interface. This drive provides feedback and can communicate with the bus system (e.g. KNX, LOX) via the appropriate actuator. For commissioning via bus system SMI actuator is required.

Features:
  • standard data protocols
  • precise approach to specific items
  • possible use of subaddresses
  • stop recognition
  • driving slowly while moving the slats and approaching the position
  • mushroom-shaped safety switch
  • freely programmable shading position
  • available in 26, 35 and 50 rpm
  • silent soft brake
  • diagnostics and updates via SMI
  • standby power < 0.3W
Download
Manual 1.37 MB
