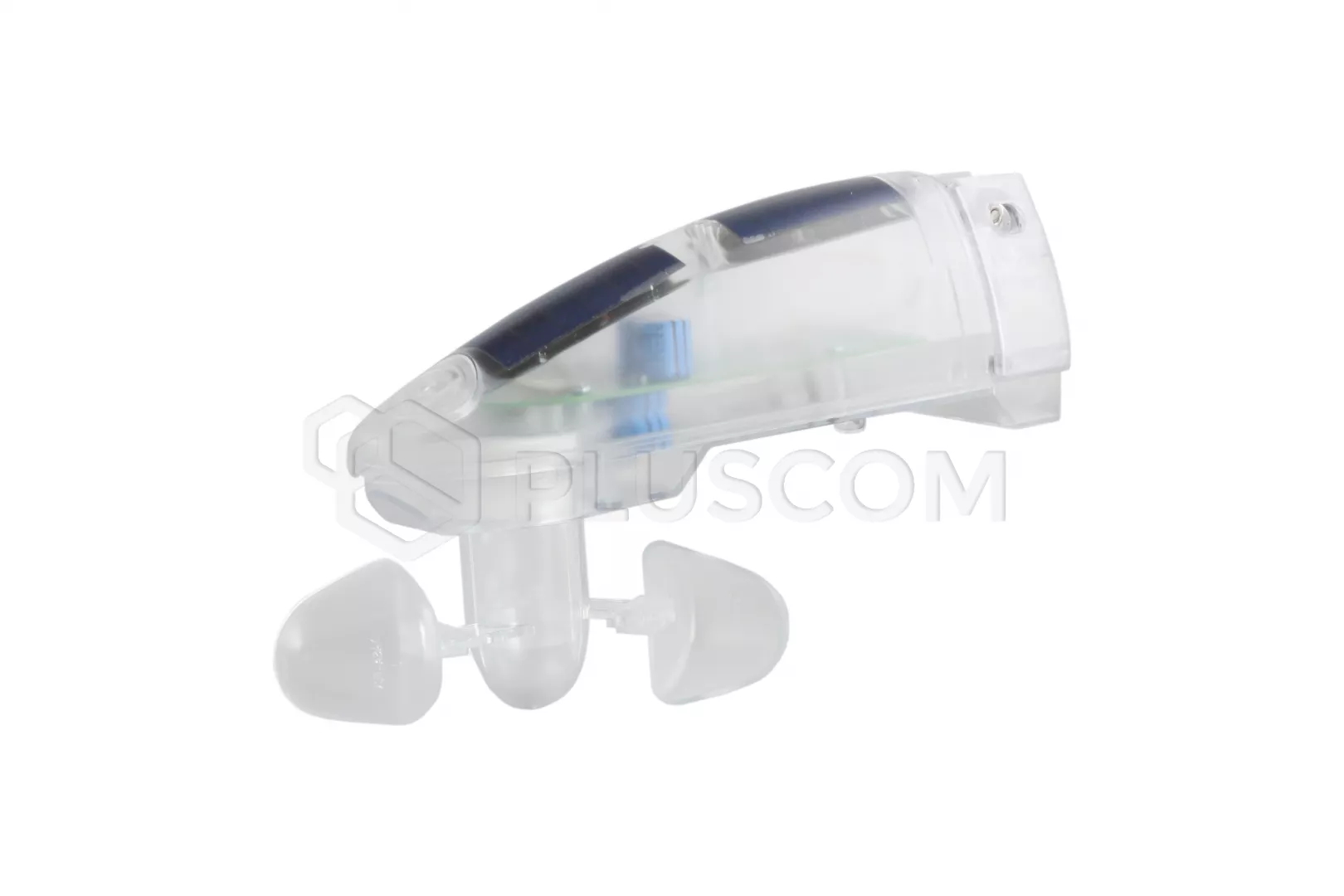

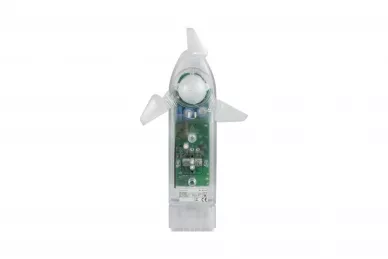

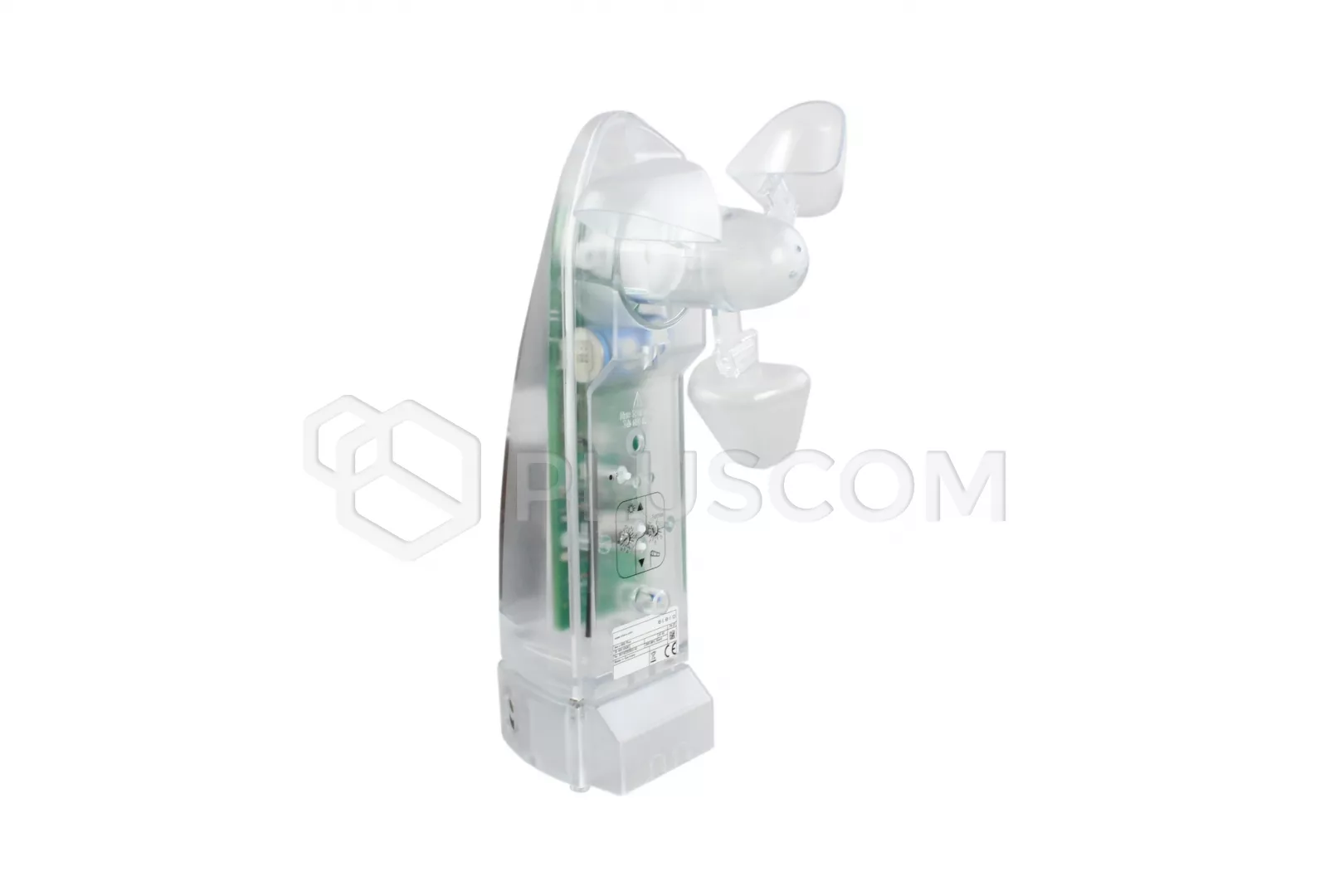

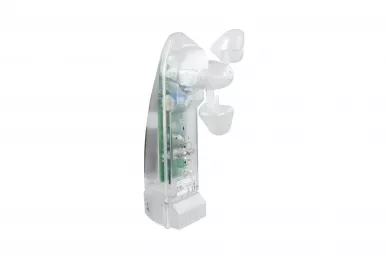

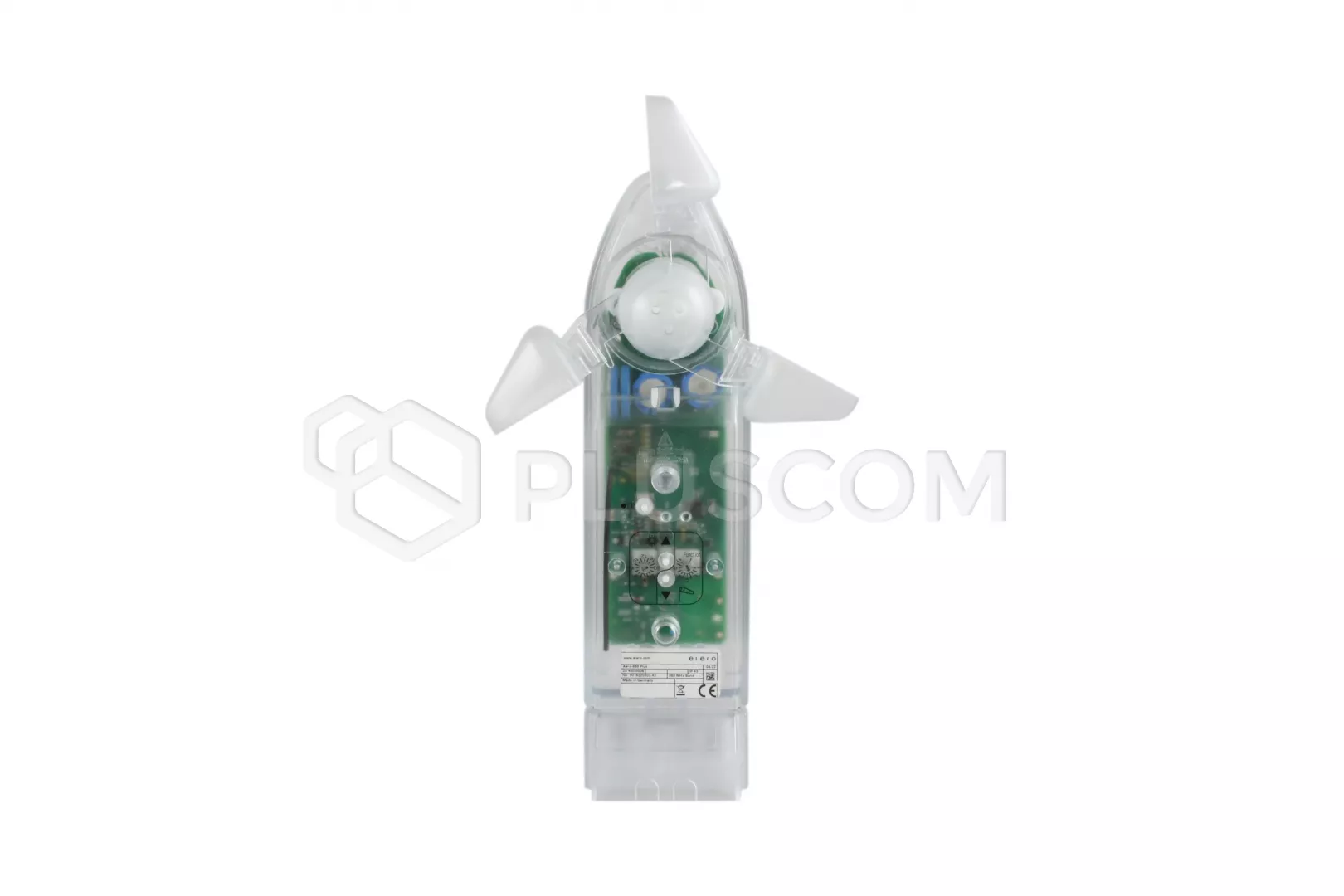

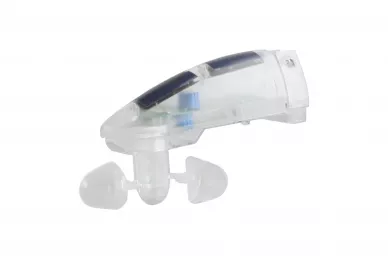

Elero Aero 868 Plus radio sensor for blinds

Elero Aero 868 Plus Wireless radio sensor for blinds

Wireless radio sensor for the automation of awnings and shutters Venetian. The adjustment depends on the light intensity and the wind intensity.
Aero-868 Plus has an additional solar-storage element providing additional standby time.

Device features
The illumination intensity and the wind speed are measured equally intervals and is compared with the desired values

• higher insolation (delay time approx. 5 minutes) - the awning extends after a delay time
• insolation below the set value (delay time approx. 15 min.) - after the delay time, the awning retracts or remains not ejected
• wind force above the set value - the awning retracts or remains unlocked and is blocked for approx. 15 minutes. (red LED flashing).

You can use the slide switch on the programmed remote control turn the light function on or off. The wind function is active in all switch position. The position of the slide switch has no effect on operation of the movement switches, however, while the wind function is active these switches are locked for 15 minutes.

Aero-868 Plus can be used in three different modes:

• Marquee use mode - The awning is run automatically when the the current measured value of the sunlight intensity changes from 1 to 0 (late in the evening) or when the current measured light intensity changes from 0 to 1 (early morning)
• Window curtain mode - to keep it in the evening too cover closed, close it manually using the hand-held transmitter or clock. The current changes in the measured values ​​of light intensity from 1 to 0 (late evening) or 0 to 1 (early morning) are not taken into account. The veil stays closed all night. The next day of the command to turn on, such as the retracting position (louvre) or the ventilation position (roller shutter) are provided done automatically
• Roller shutter usage mode - If the shutter is manually operated using clock or shifted to the lower position by the "twilight" function end limit, the "light" function (shifting according to the set values lights) is turned off. Current changes in the measured values ​​of intensity lights from 1 to 0 (late in the evening) or from 0 to 1 (early in the morning) no are included

Technical data

• power: solar energy
• temperature range: –25 ° C to +60 ° C
• range angle (light sensor): 150 °
• radio frequency: 868.3 MHz
• on alert: ~ 16 Std
• protection: IP 43
