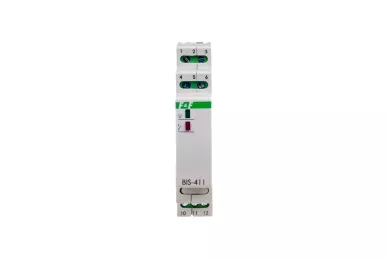

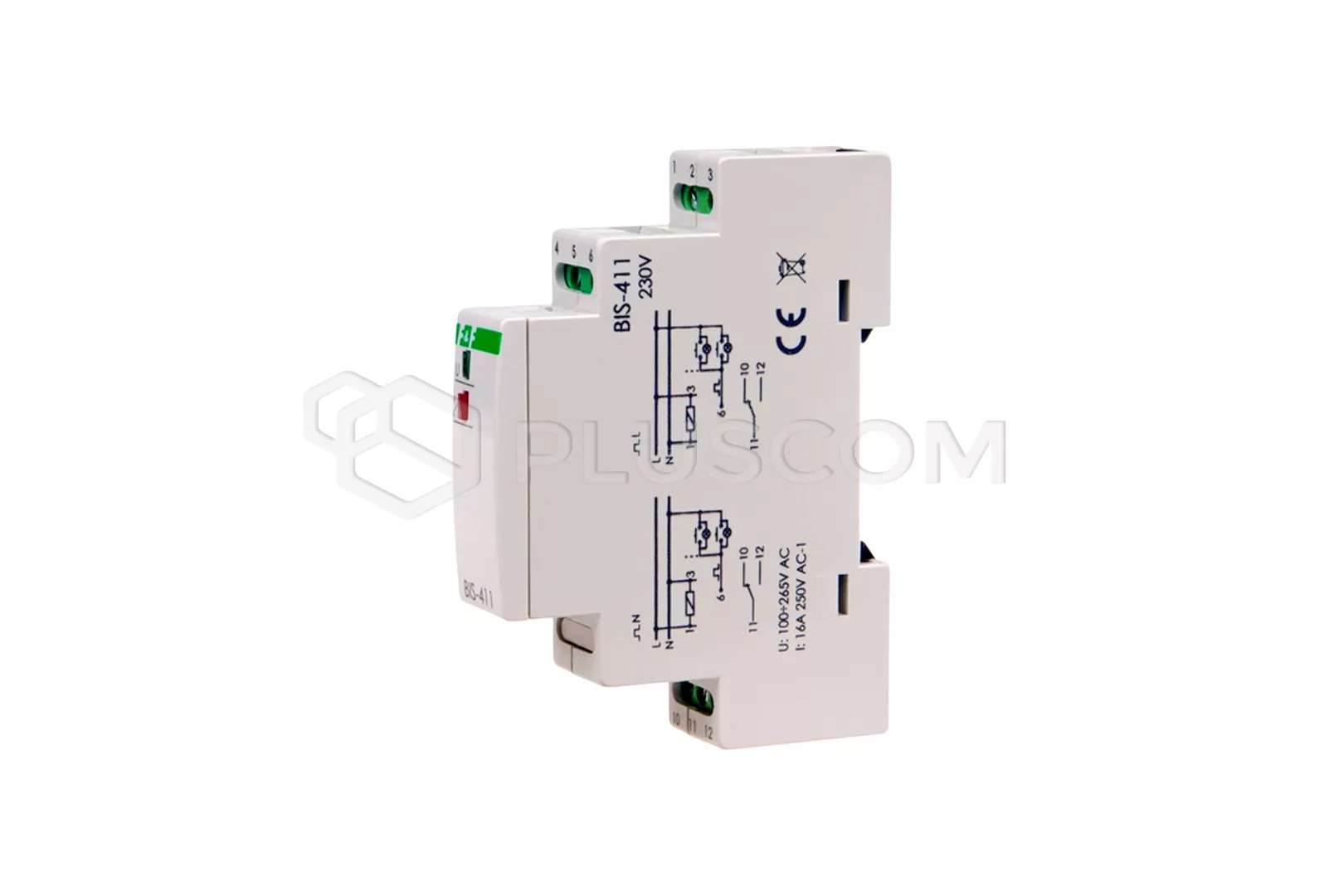

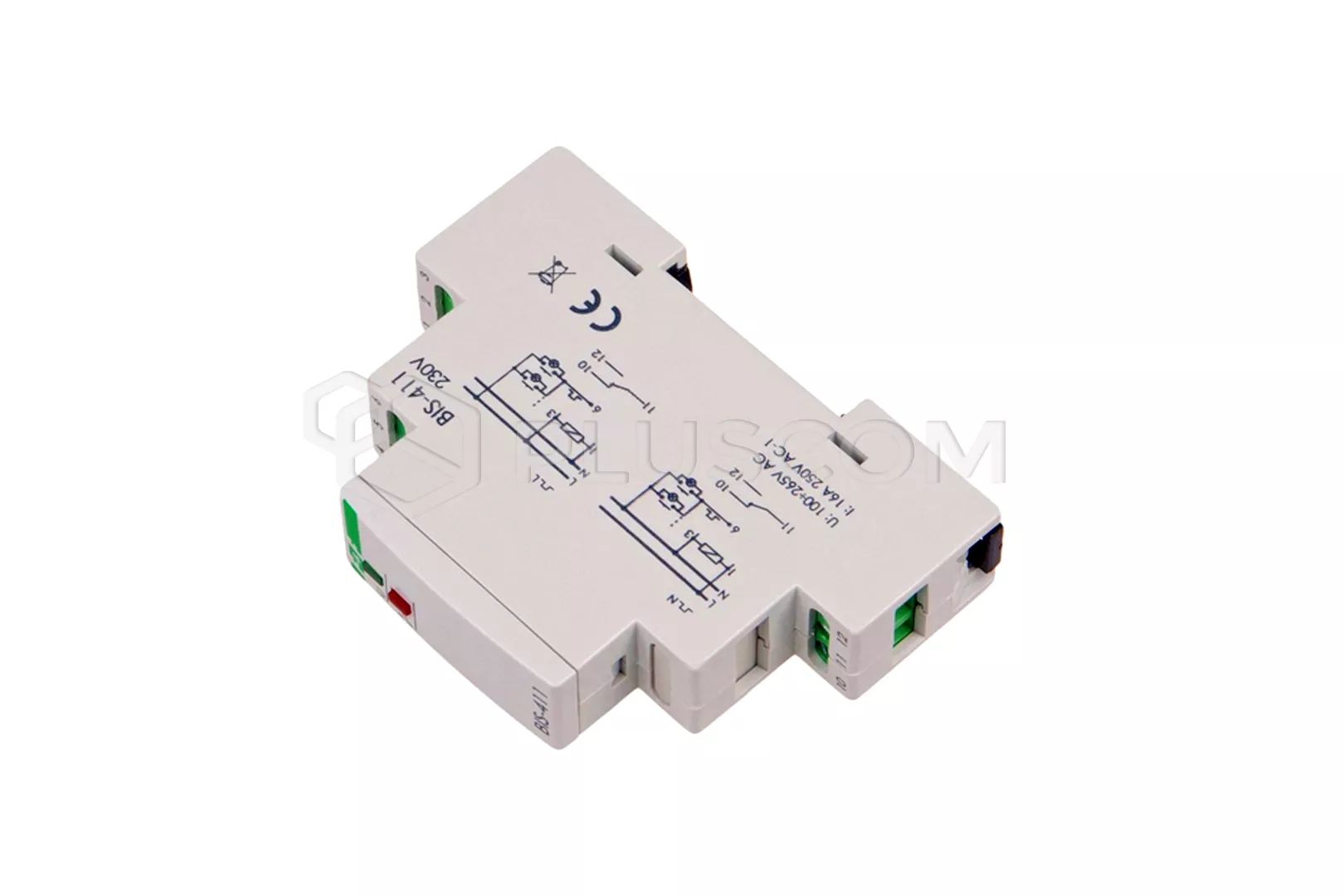

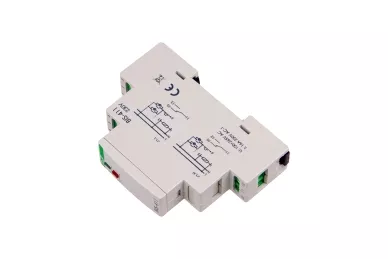

Electronic bi-stable pulse relay F&F BIS-411 230V

13,11 EUR including 23.00% VAT
In stock. Ships today!
Product code: #7686
  • Power: 100-265V AC
  • Maximum load current AC-1: 16A
  • Works with illuminated buttons
  • 35 mm rail mounting
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

F&F BIS-411 Bistable relay 230V with DIN rail mounting

F&F BIS-411

F&F BIS-411

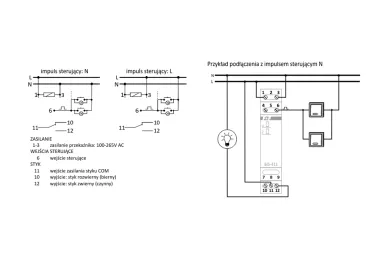

The electronic bistable relay enables switching on the lighting or other device from several different points by means of parallel connected control buttons.
BIS-411 can work with illuminated buttons.
F&F BIS-411

F&F BIS-411

The relay does not have a "memory" of the contact position, which prevents automatic switching on of the controlled receivers without supervision, after a long power failure.

PARAMETERS:
  • power supply: 100-265V AC
  • maximum load current AC-1: 16A
  • contact configuration: 1 × NO / NC
  • number of channels: 1
  • response delay: 0.1 ÷ 0.2 s
  • connection: 2.5 mm² screw terminals
  • power consumption: 0.7 W
  • working temperature: -25 ÷ 50 ° C
  • dimensions: 1 module (18 mm)
  • mounting: on a 35 mm rail
  • protection: IP20
Specification
Supply voltage: 100 - 265V AC
Operating temperature: -25 ... +50°C
Protection class: 20IP
