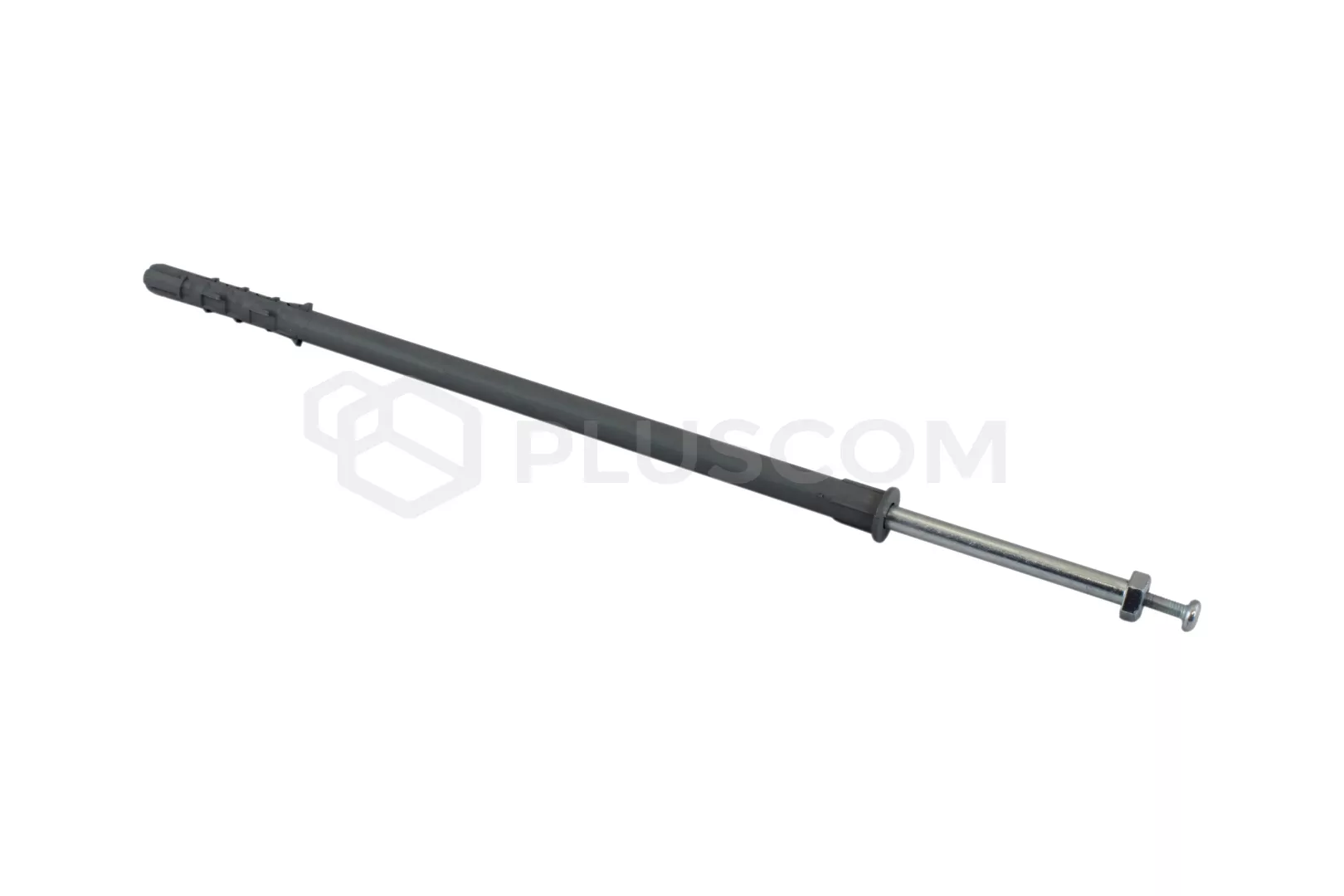

Ebolt 12x300 with internal thread M5 - 1pcs

4,70 EUR including 23.00% VAT
Product code: #14228
  • diameter 12mm length 300mm
  • interna thread: M5
  • attaching the object directly to the wall on the insulated facades
  • price per 1pcs

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Ebolt EBZ 12x300 with internal thread M5

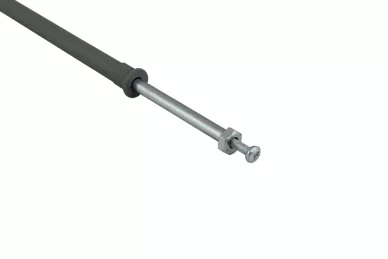

Screw head with screw M5:

Screw head with screw M5:

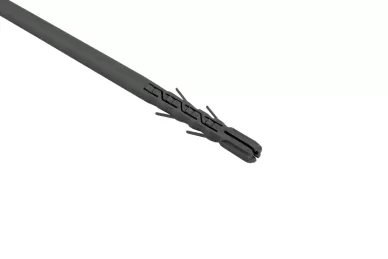

Ebolt 12x260 with internal thread M5

Ebolt 12x260 with internal thread M5

EBOLT is an innovative wall mounting system with a thick insulation layer.

Ideal for mounting devices with small mounting holes on the insulated floors of the building
  • camera
  • detectors
  • alarm lights
  • plates
DIMENSIONS:
  • drill diameter: 12mm
  • pin Size: 12x300
  • screw size: 8x300
  • screw head: hex key 13mm
  • thread length M5 screw length 16mm (cylindrical lenticular)
MATERIAL:
  • jacket - polypropylene
  • screw - galvanized steel
  • fixing screw - galvanized steel

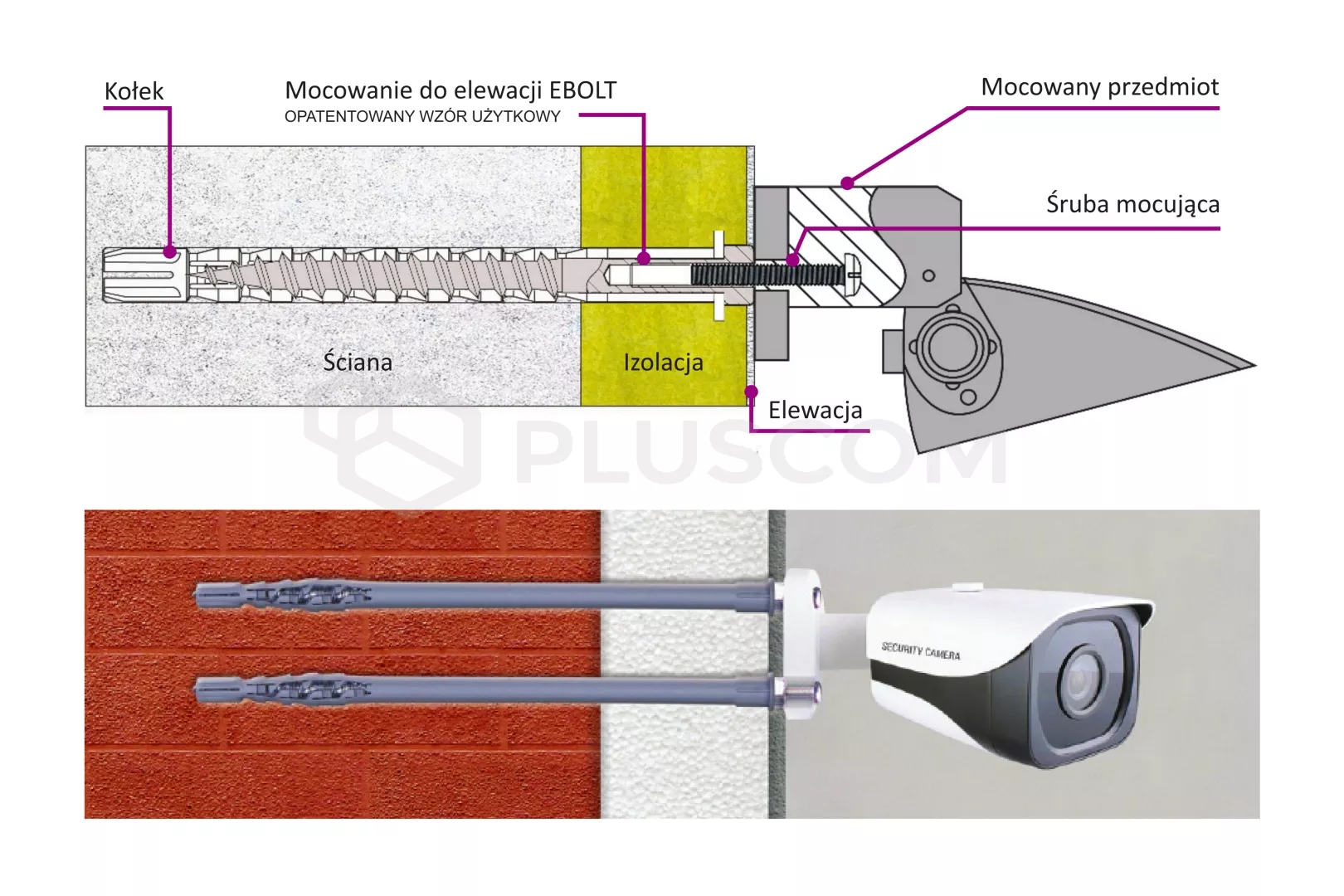

How to install the Ebolt system:

How to install the Ebolt system:



Download
Datasheet 3.03 MB
Product card 0.65 MB
