DRS-480-48 Mean Well 48V/480W/2.3A/7.7A DIN rail power supply

382,68 EUR including 23.00% VAT
Product code: #27335
Manufacturer: Pulsar
  • Output parameters: DC 48V 10A max 480W
  • Width: 110mm
  • Depth: 150.7mm
  • Fire protection standard EN54-4
  • Technical outputs relay type
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar DRS-480-24 DRS 24V/480W/4.6A/15.4A DIN rail power supply units DRS-240-48 Mean Well 48V/240W/1.15A/3.85A DIN rail power supply DRS-240-24 Mean Well 24V/240W/2.3A/7.7A DIN rail power supply DRS-240-12 Mean Well 12V/240W/15.4A DIN rail power supply

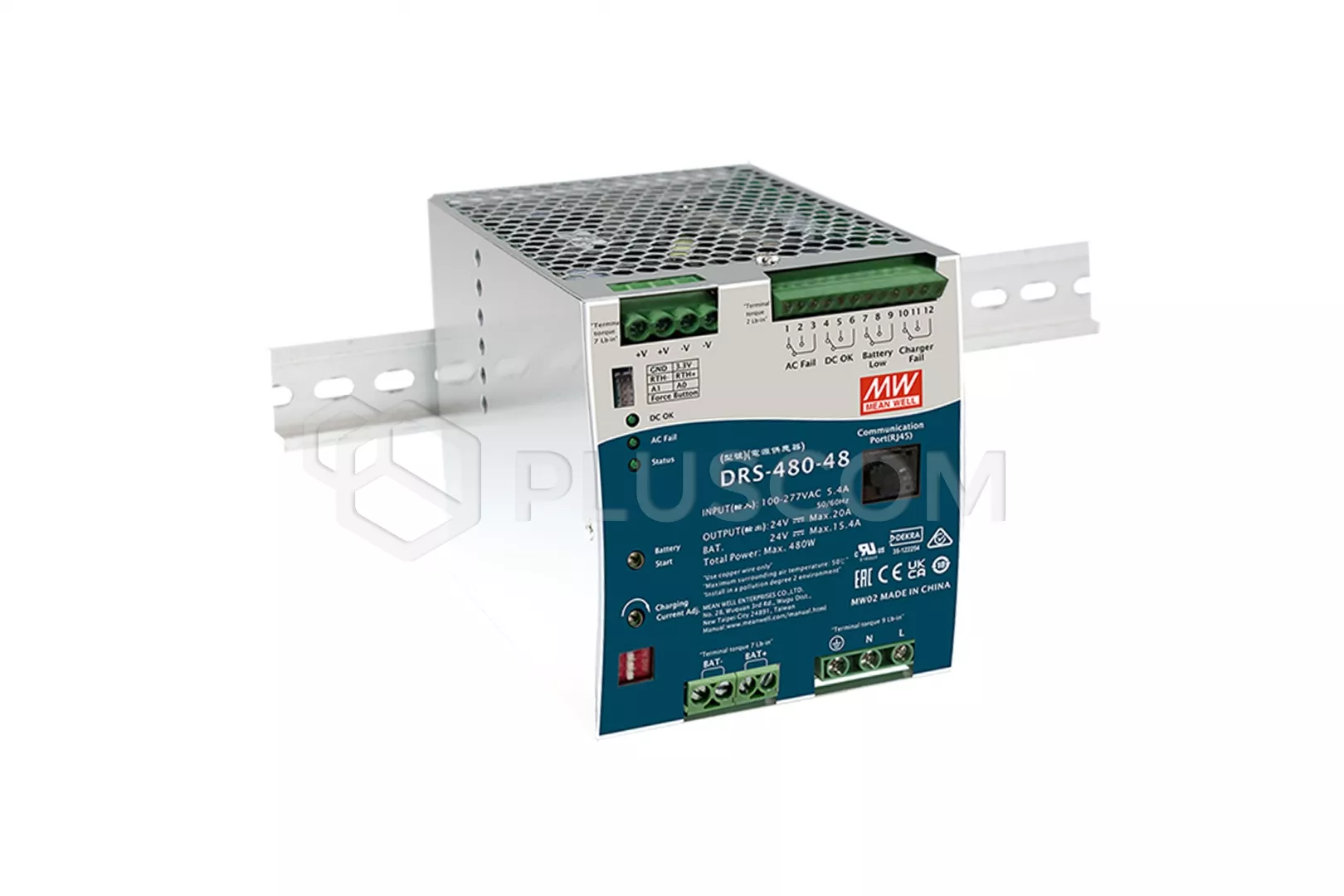

Mean Well DRS-480-48 DIN rail power supply


Mean Well DRS-480-48 is a power supply mounted on a DIN TS-35 rail, meeting the EN54-4 fire standard.
The power supply is enclosed in a metal housing. Cooling takes place free air flow, no additional fans. While installation, pay attention to the possibility of free air flow inside an enclosure or switchgear.

DRS-480-48 has the following protections:
  • short-circuit proof SCP
  • overload OLP
  • overvoltage OVP
  • thermal
Versatile function with power supply, DC-UPS, battery charger and condition monitoring all in one compact device.

PARAMETERS AND FEATURES:
  • output: DC 48V 10A power 480W
  • wide input voltage range: AC 90-305V
  • efficiency: 93.5%
  • LED signaling presence of DC output voltage OK
  • RJ45 port
  • operating temperature: -30°C...70°C
  • dimensions: 85.5x125.2x129.2mm
  • weight: 1.19kg
Download
Datasheet 1.5 MB
CE Declaration 0.36 MB
