DC/DC Converter Pulsar DC/DC05

6,33 EUR including 19.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #18243
Manufacturer: Pulsar
  • Input voltage: 12-30V DC
  • Output voltage: DC 12V
  • Max output current: 0.5A
  • High efficiency
  • Protection against reverse input voltage polarity

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

DC/DC 0.5A Step down DC/DC converter with separation DC/DC05

The converter is designed to supply devices requiring stabilized voltage of 12V DC. The maximum load current is 0,5A (Pmax= 6W). The module does not feature galvanic isolation between input/output (Input-Output), and operates on common ''ground'' (0V) potential. The inverter is protected against reverse polarity of the input voltage.

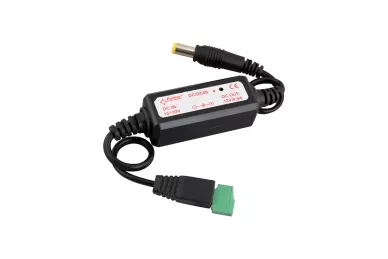

DC/DC Converter Pulsar DC/DC05

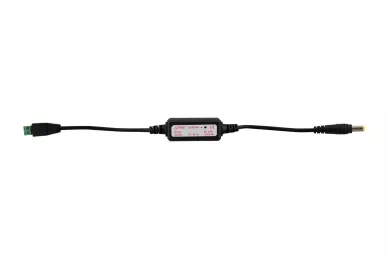

DC/DC Converter Pulsar DC/DC05


SPECIFICATIONS:
  • The input voltage range: 12-30V DC
  • The output voltage range: 12V DC
  • The maximum load current 0.5A (6W)
  • High efficiency: 86%
  • Length of DC input cable: 0,13m + screw connection Ф0,51÷1,15 (AWG 24-17), 0,2÷1mm2
  • Length of DC output cable: 0,13m + plug JACK 5,5/2,1 female
  • Protections: against reverse input voltage polarity
  • Dimensions: 50x20x18mm
  • Weight:0.04kg

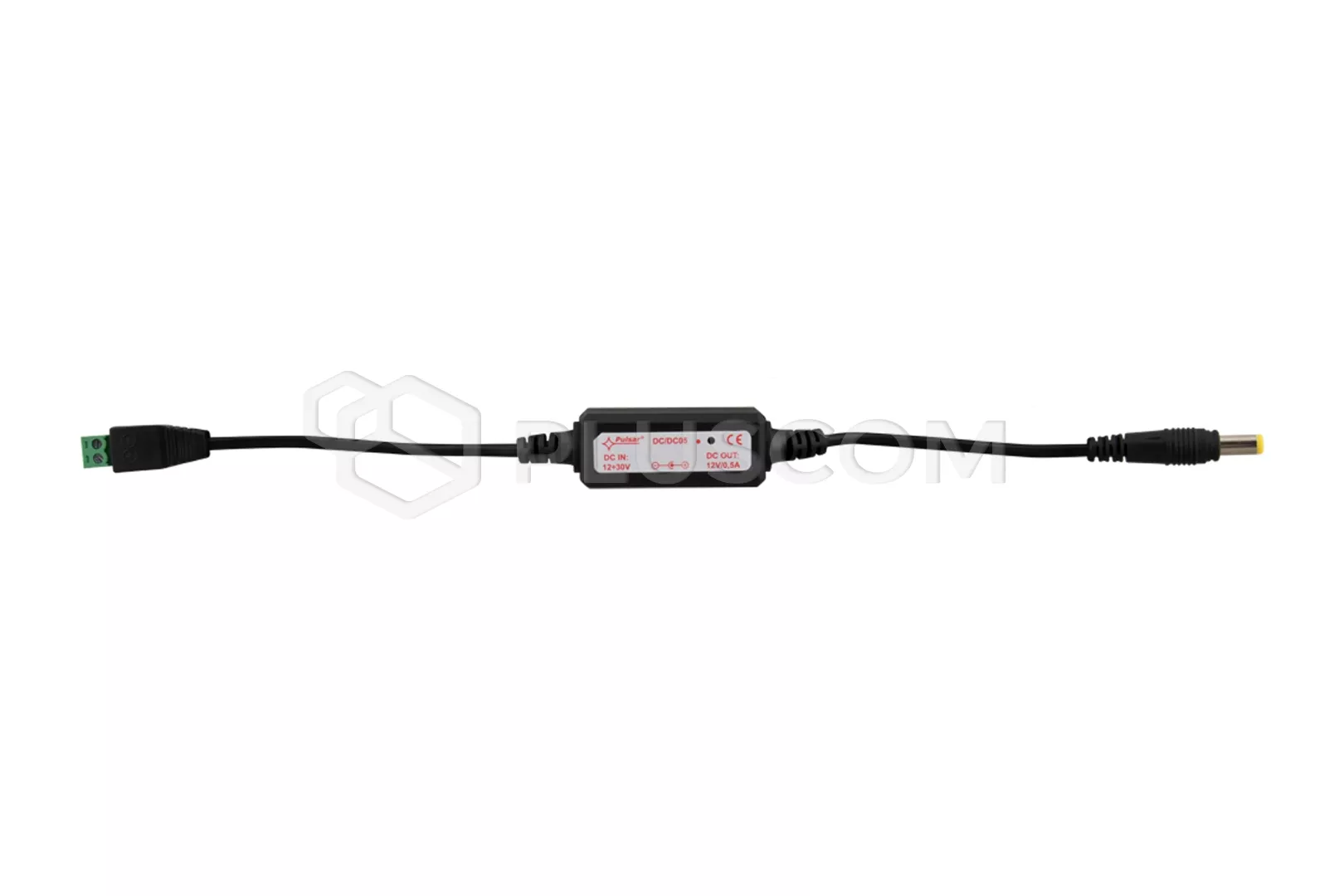

DC/DC Converter Pulsar DC/DC05

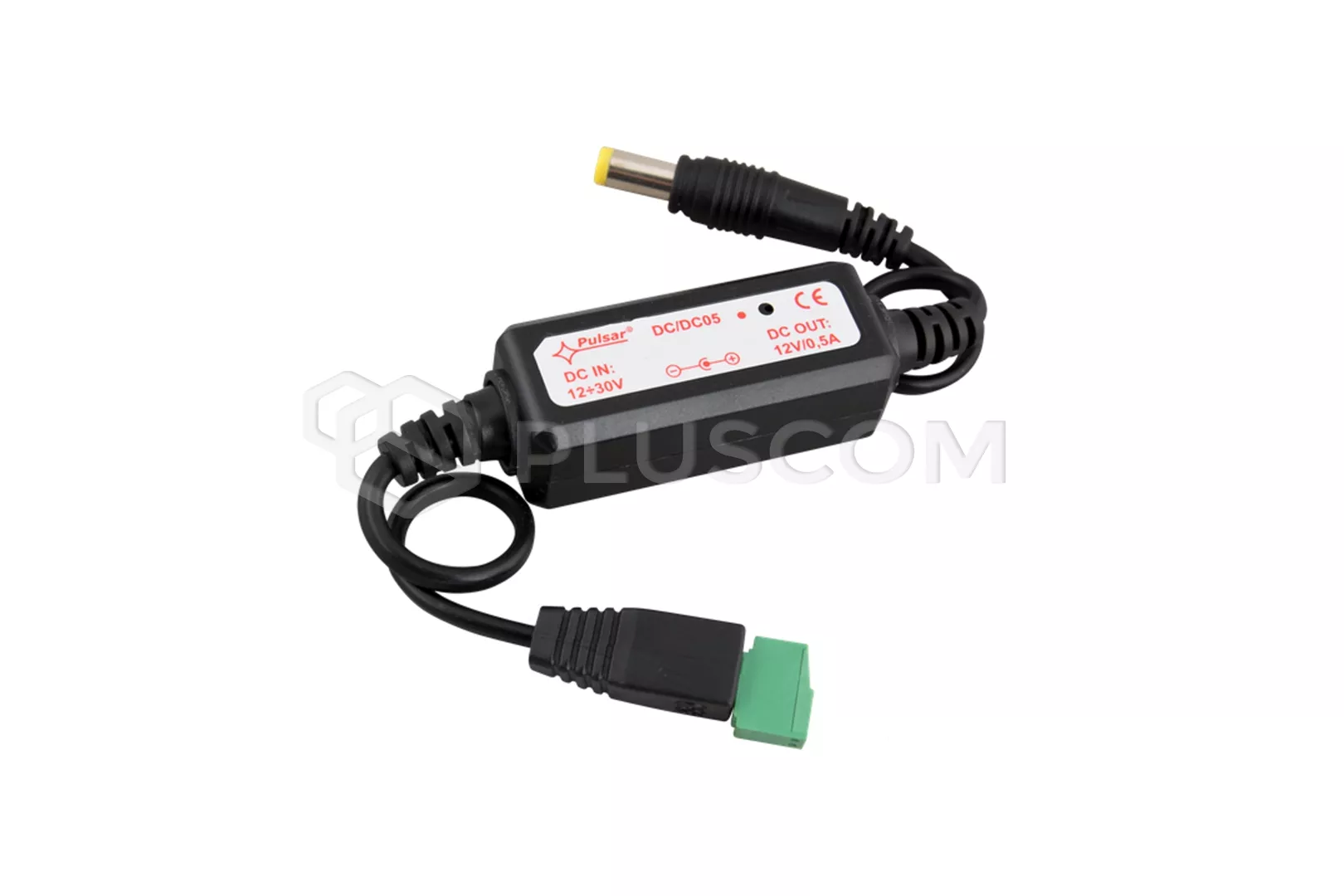

DC/DC Converter Pulsar DC/DC05

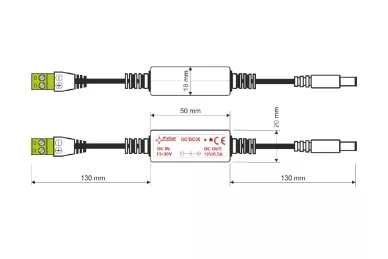

Dimensions:

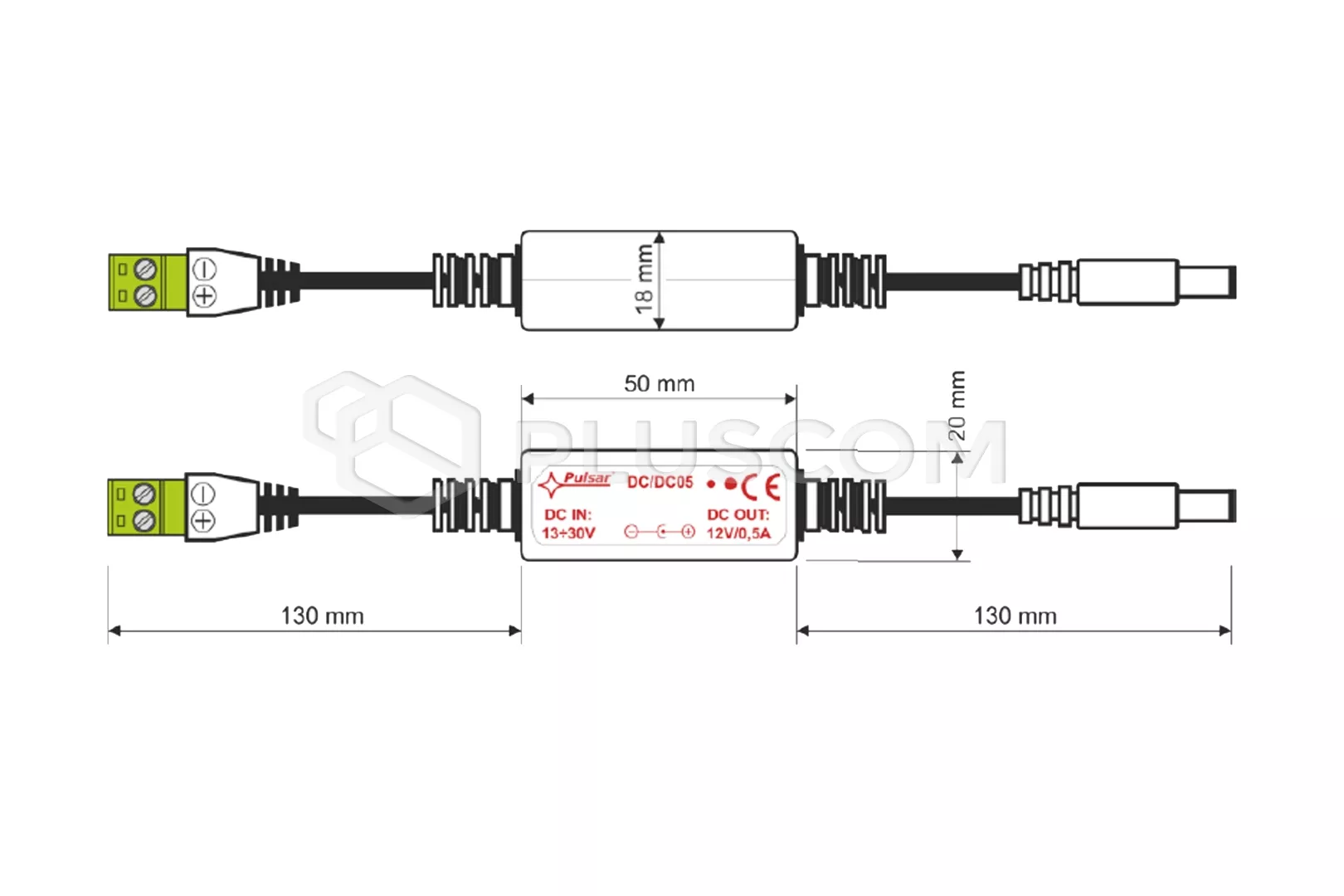

Dimensions:


Download
Datasheet 0.13 MB
Declaration CE 0.32 MB
Instruction 0.22 MB
