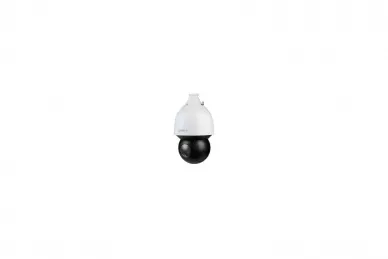

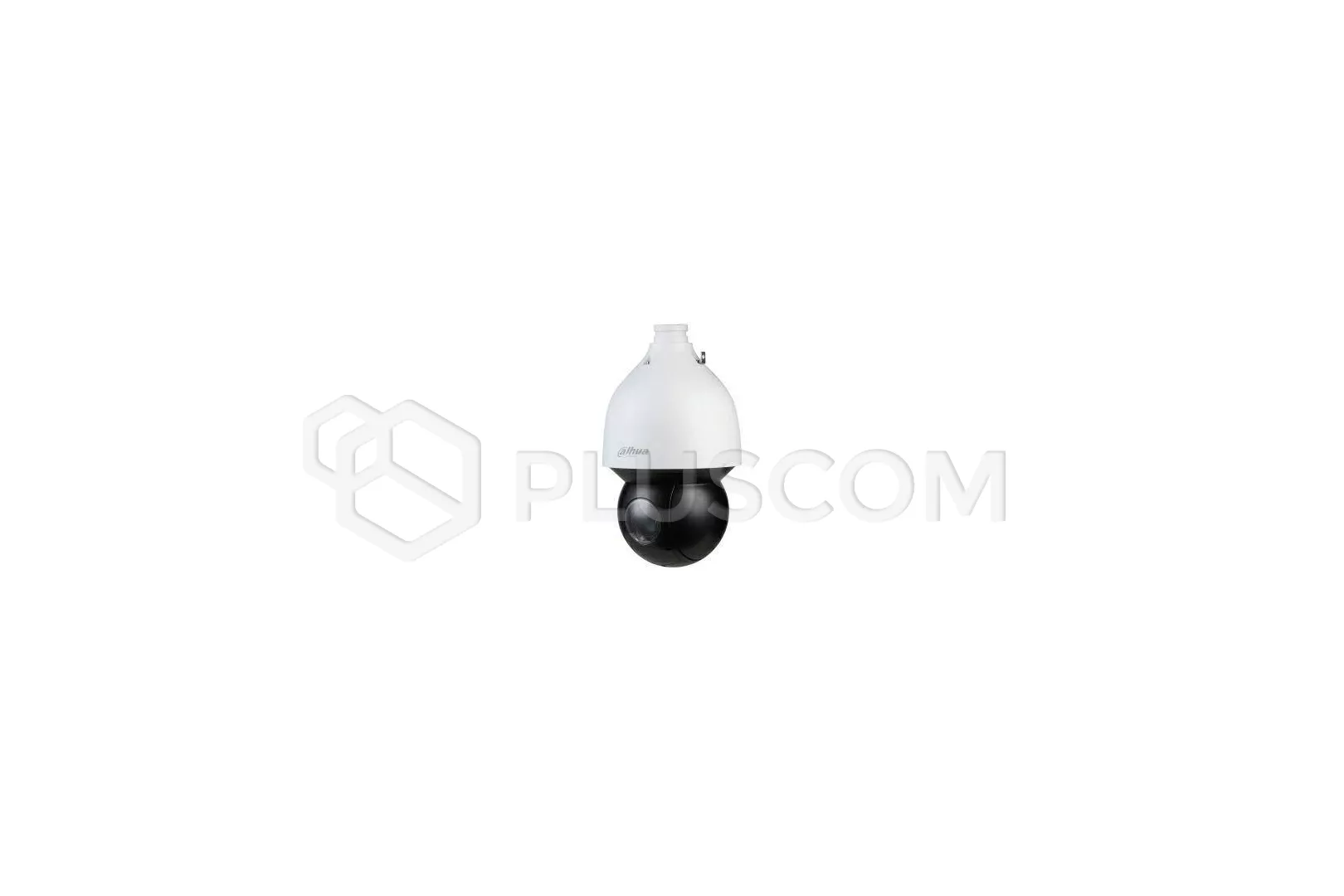

Dahua SD5A432XB-HNR IP PTZ Camera

2498,75 EUR including 23.00% VAT
Product code: #36208
Manufacturer: Dahua
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Dahua SD5A432XB-HNR IP PTZ Camera


Technical parameters:

  • Camera:
  • Image Sensor: 1/2.8" CMOS
  • Pixel: 4 MP
  • Max. Resolution: 2560 (H) × 1440 (V)
  • ROM: 4 GB
  • RAM: 1 GB
  • Electronic Shutter Speed: 1/1 s–1/30,000 s
  • Scanning System: Progressive
  • Min. Illumination: Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on)
  • Illumination Distance: 150 m (492.13 ft) (IR)
  • Illuminator On/Off Control: Zoom Prio; Manual; SmartIR
  • Illuminator Number: 4 (IR)
  • Lens:
  • Focal Length: 4.8 mm–154 mm
  • Max. Aperture: F1.6–F4.0
  • Field of View: H: 55.81°–2.37°; V: 31.92°–1.34°; D: 63.71°–2.71°
  • Optical Zoom: 32×
  • Focus Control: Auto; Semi-auto; Manual
  • Close Focus Distance: 0.8 m–5.0 m (2.62 ft–16.40 ft)
  • Iris Control: Auto; Manual
  • DORI Distance: Detect
  • 2,124 m (6,968.50 ft): 839 m (2,752.62 ft)
  • PTZ:
  • Pan/Tilt Range: Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180°
  • Manual Control Speed: Pan: 0.1°–300°/s Tilt: 0.1°–200°/s
  • Preset Speed: Pan: 400°/s; Tilt: 300°/s
  • Preset: 300
  • Tour: 8 (up to 32 presets per tour)
  • Pattern: 5
  • Scan: 5
  • Power-off Memory: Yes
  • Idle Motion: Preset; Pattern; Tour; Scan
  • PTZ Protocol: DH-SD Pelco-P/D (Auto recognition)
  • Intelligence:
  • Smart Capture: Support human, motor vehicle and non-motor vehicle image capture.
  • IVS (Perimeter Protection): Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
  • Face Detection: Yes
  • Auto Tracking: Yes
  • SMD PLUS: Yes
  • Video:
  • Video Compression: Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream)
  • Streaming Capability: 3 streams
  • Resolution: 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
  • Video Frame Rate: Main stream: 4M/3M/2M/1.3M/720p (1-25/30 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 2M/1.3M/720p (1–25/30 fps)
  • Bit Rate Control: CBR; VBR
  • Video Bit Rate: H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps
  • Day/Night: Auto (ICR); Color; B/W
  • BLC: Yes
  • WDR: 120 dB
  • HLC: Yes
  • White Balance: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
  • Gain Control: Auto; Manual
  • Noise Reduction: 2D NR; 3D NR
  • Motion Detection: Yes
  • Region of Interest (RoI): Yes
  • Image Stabilization: EIS
  • Defog: Electronic
  • Digital Zoom: 16×
  • Image Rotation: 180°
  • Privacy Masking: Up to 24 areas can be set, with up to 8 areas in the same view
  • S/N Ratio: ≥ 55 dB
  • Audio:
  • Audio Compression: G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723
  • Network:
  • Network Port: RJ-45 (10/100 Base-T)
  • Network Protocol: HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
  • Interoperability: ONVIF Profile S&G&T CGI
  • Streaming Method: Unicast; Multicast
  • User/Host: 20 (total bandwidth: 64 M)
  • Storage: FTP; Micro SD card (512 GB); NAS
  • Browser: IE: IE7 and later Chrome: 42 and earlier Firefox: 52 and earlier Safari
  • Management Software: Smart PSS; DSS; DMSS; Easy4ip; IVSS
  • Mobile Client: iOS; Android
  • Certification:
  • Certifications: CE-LVD: EN 62368-1 CE-EMC: EN55032:2015/EN61000-3-2; 2019/EN61000-3-3: 2013+A1: 2019 /EN50130-4: 2011/A1: 2014/EN55024: 2010/A1: 2015/EN55035: 2017 FCC: CFR 47 FCC Part15, Subpart B UL: UL60950-1+CAN/CSA C22.2, No.60950-1
  • Port:
  • Two-way Audio: Yes
  • Alarm Linkage: Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email
  • Alarm Event: Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection
  • Alarm I/O: 2/1
  • Audio I/O: 1/1
  • Power:
  • Power Supply: 24 VDC, 2.5 A (± 25%) PoE+ (802.3at)
  • Power Consumption: Basic: 13 W Max.: 22 W (illuminator + PTZ working)
  • Environment:
  • Operating Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
  • Operating Humidity: ≤ 95%
  • Protection: IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection
  • Structure:
  • Product Dimensions: 331.9 mm × Φ190.4 mm (13.07" × Φ7.50")
  • Net Weight: 4.7 kg (10.36 lb)
  • Gross Weight: 8 kg (17.64 lb)
