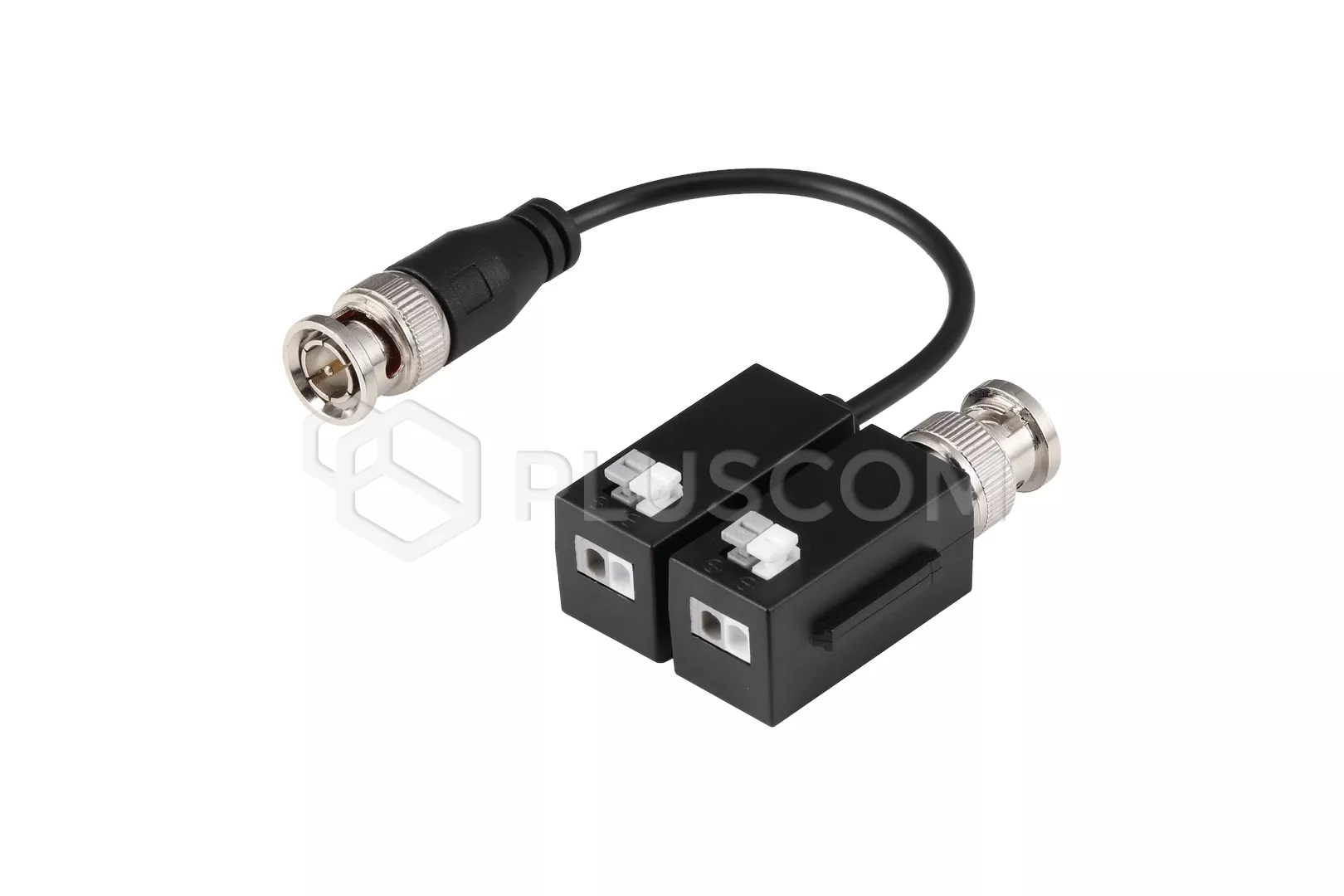

Dahua PFM800B-4K

15,88 EUR including 23.00% VAT
Product code: #18952
Manufacturer: Dahua
  • Technical Specification:
  • Model: DH-PFM800B-4K
  • Properties:
  • Transmission Signal: 1-CH
  • Network cable Type: UTP CAT5E/6 (material: CU)
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Dahua PFM800B-4K


Technical parameters:

  • Technical Specification:
  • Model: DH-PFM800B-4K
  • Properties:
  • Transmission Signal: 1-CH
  • Network cable Type: UTP CAT5E/6 (material: CU)
  • Transmission Properties: HDCVI
  • TVI: 720P : max.400m (1312.34ft)
  • AHD: 720P : max.400m (1312.34ft)
  • Video Transmission Properties:
  • Coaxial Video Connector: BNC-M
  • Connection Way: RJ45
  • Compatible Format: HDCVI/TVI/AHD/CVBS
  • Resolution: 720P/1080P/4MP/5MP/4K
  • Protection:
  • ESD: 1a contact discharge electricity level 3
  • 1b air discharge electricity level 3:
  • Per: IEC61000-4-2:
  • UTP Cable Connector: 2KV(different-mode), 4KV(common-mode)
  • Per: IEC61000-4-5:
  • Impedance:
  • BNC Male Impedance: 75 ohms
  • UTP Cable Impedance: 100 ohms
  • Physical Properties:
  • Weight: 34g (0.07lb) (1 pair)
  • Dimension(LxWxH): TX: 173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”) RX: 49.1mm×19.5mm×21mm (1.93”x0.77“x0.83”)
  • Shell: ABS
  • Color: Black
  • Environmental:
  • Operating Temperature: -30℃~+70℃(-22℉~+158℉)
  • Operating Humidity: <95% RH
  • Storage Temperature: -40℃~+80℃(-40℉~+176℉)
