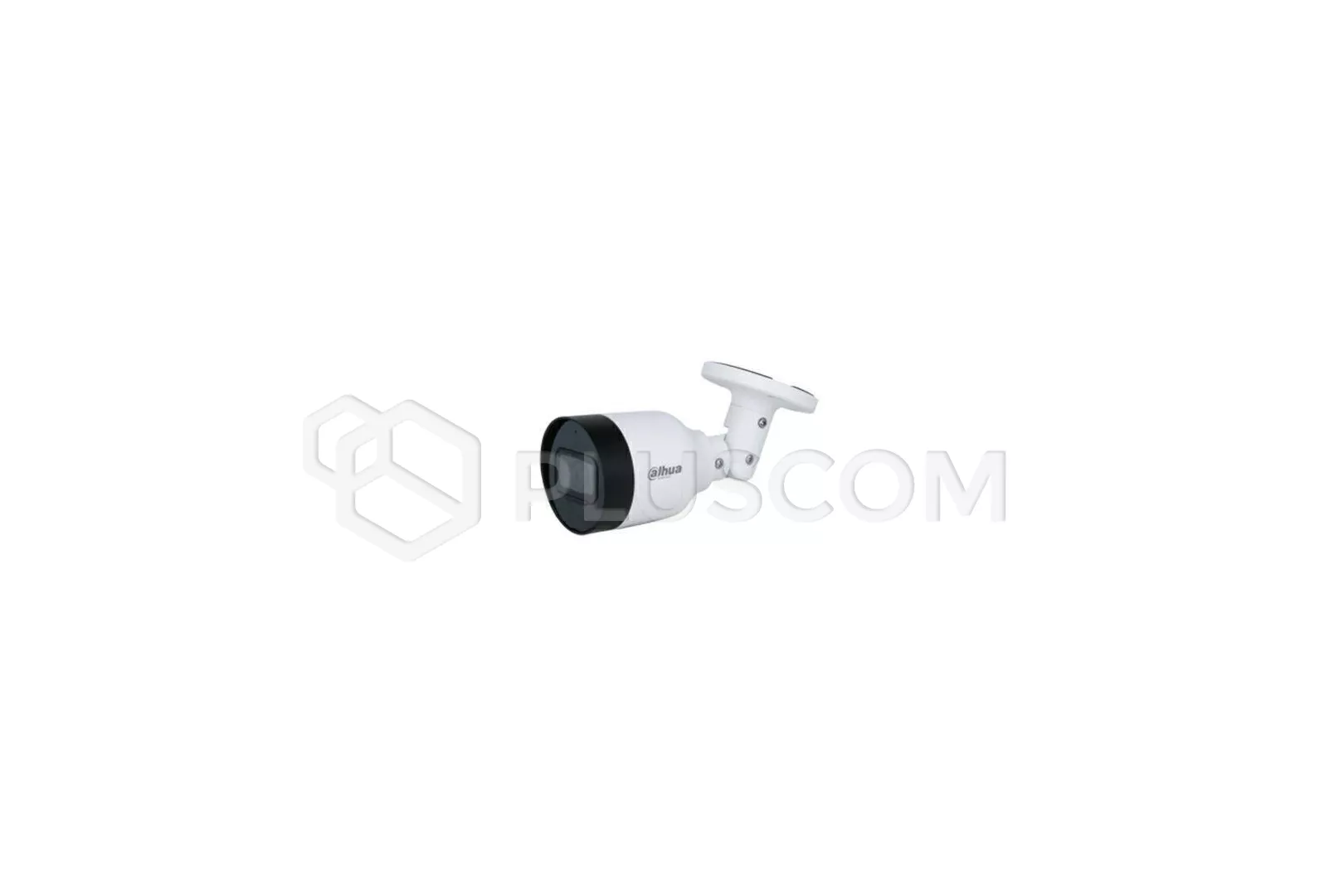

Dahua IPC-HFW1530S-0280B-S6 IP Camera

Dahua IPC-HFW1530S-0280B-S6 IP Camera

Technical parameters:

Camera

• Image Sensor: 1/2.7" CMOS
• Max. Resolution: 2880 (H) × 1620 (V)
• ROM: 16 MB
• RAM: 128 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination: 0.03 Lux@F2.0 (Color, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on)
• S/N Ratio: > 56 dB
• Illumination Distance: 30 m (98.43 ft) (IR)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 1 (IR LED)
• Pan/Tilt/Rotation Range: Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8 mm; 3.6 mm
• Max. Aperture: 2.8 mm: F2.0 3.6 mm: F2.0
• Field of View: 2.8 mm: Horizontal: 106°; Vertical: 56°; Diagonal: 125° 3.6 mm: Horizontal: 92°; Vertical: 48°; Diagonal: 109°
• Iris Control: Fixed
• Close Focus Distance: 2.8 mm: 0.8 m (2.62 ft) 3.6 mm: 1.3 m (4.27 ft)
• DORI Distance: Lens
• 2.8 mm: 56.0 m (183.73 ft)
• 3.6 mm: 76.0 m (249.34 ft)

Video

• Video Compression: H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
• Smart Codec: Smart H.265+; Smart H.264+
• Video Frame Rate: Main stream: 2880 × 1620 (1 fps–20 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability: 2 streams
• Resolution: 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 2560 × 1440(2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate: H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: DWDR
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto; manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror: Yes
• Privacy Masking: 4 areas

Audio

• Built-in MIC: Yes
• Audio Compression: G.711a; G.711Mu; G.726; PCM

Alarm

• Alarm Event: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception

Network

• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Cyber Security: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
• Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
• Interoperability: ONVIF (Profile S/Profile T); CGI; P2P; Genetec; Milestone
• User/Host: 6 (Total bandwidth: 48 M)
• Storage: FTP
• Browser: IE Chrome Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Client: IOS; Android

Certification

• Certifications: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Power

• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption: Basic: 1.9W (12V DC); 2.3W (PoE) Max. (ICR + H.265 + max. resolution + main stream + DWDR + IR intensity): 3.9W (12V DC); 4.5W (PoE)

Environment

• Operating Temperature: –40°C to +60°C (–40°F to +140°F)
• Operating Humidity: ≤95%
• Storage Temperature: –40°C to +60°C (–40°F to +140°F)
• Protection: IP67

Structure

• Casing: Metal
• Product Dimensions: 162.1 mm × Φ70.1 mm (6.38" × Φ2.76")
• Net Weight: 0.32 kg (0.71 lb)
• Gross Weight: 0.45 kg (0.99 lb)
