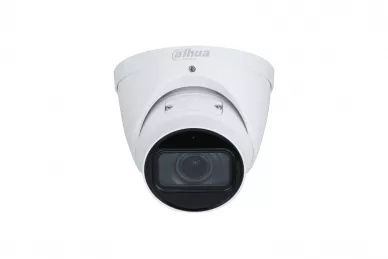

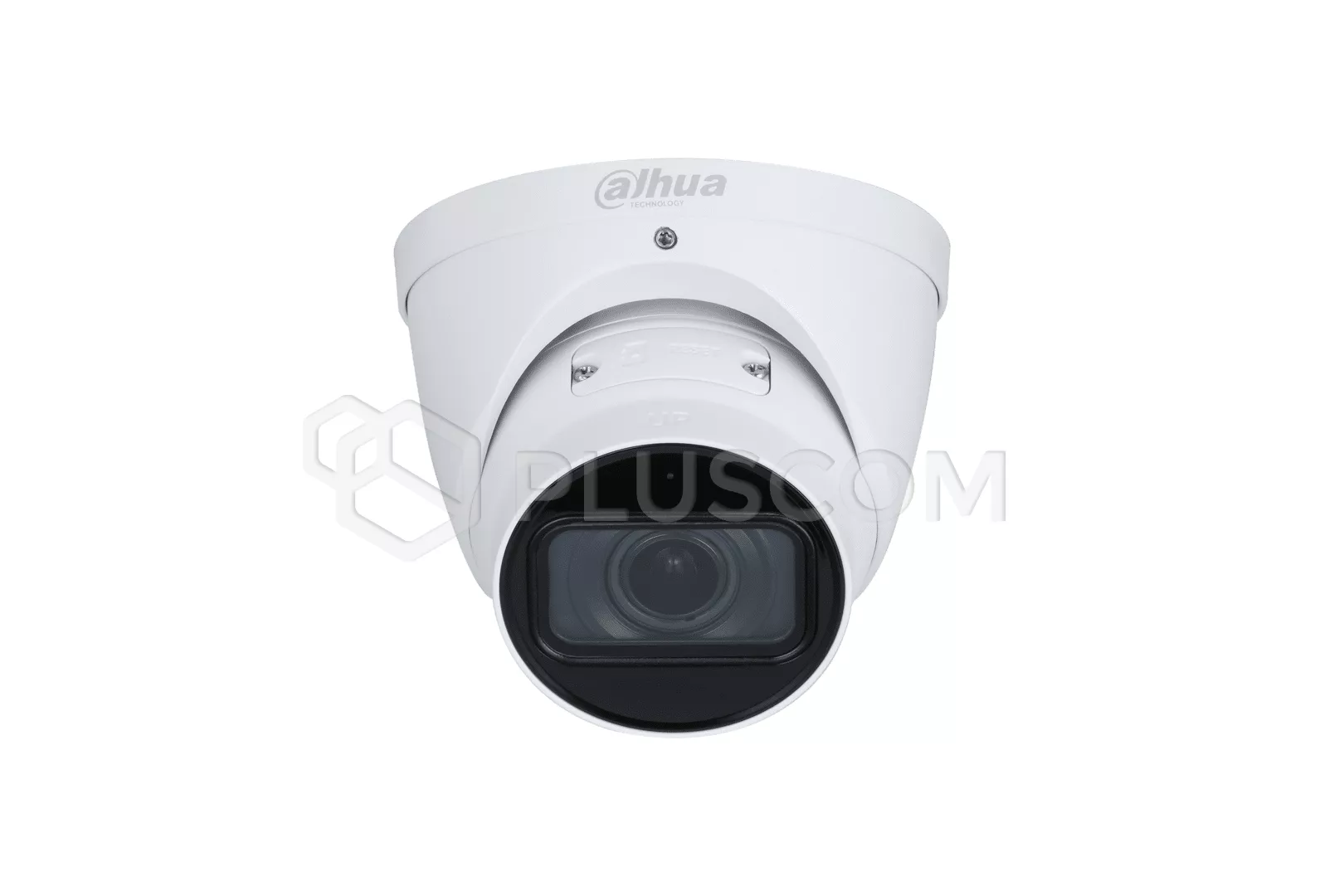

Dahua IPC-HDW3841T-ZAS-27135 IP Camera

755,59 EUR including 23.00% VAT
Product code: #36193
Manufacturer: Dahua

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Dahua IPC-HDW3841T-ZAS-27135 IP Camera


Technical parameters:

  • Camera:
  • Image Sensor: 1/2.8”8Megapixel progressive CMOS
  • Max. Resolution: 3840 (H) × 2160 (V)
  • ROM: 128 MB
  • RAM: 512 MB
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
  • Min. Illumination: 0.007 Lux@F1.5 (Color, 30IRE) 0.0007 Lux@F1.5 (B/W, 30IRE) 0 Lux (Illuminator on)
  • S/N Ratio: > 56 dB
  • Illumination Distance: 50 m (164 ft)
  • Illuminator On/Off Control: Auto/Manual
  • Illuminator Number: 2 (IR LED)
  • Pan/Tilt/Rotation Range: Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
  • Lens:
  • Lens Type: Motorized vari-focal
  • Mount Type: φ14
  • Focal Length: 2.7 mm–13.5 mm
  • Max. Aperture: F1.5
  • Field of View: Horizontal: 113°–31° Vertical: 58°–17° Diagonal:138°–36°
  • Iris Type: Fixed
  • Close Focus Distance: 0.8 m (2.6 ft)
  • DORI Distance: Lens
  • W: 85.3 m (279.9 ft)
  • T: 280.0 m (918.6 ft)
  • Professional, intelligent:
  • Perimeter Protection: Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
  • Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
  • Video:
  • Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
  • Smart Codec: Smart H.265+/ Smart H.264+
  • Video Frame Rate: Main stream: 3840 × 2160 @(1–20 fps by default) 3840 × 2160 @(1–25/30 fps when AI function disabled) sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps) third stream: 1920 × 1080 @(1–25/30 fps)
  • Stream Capability: 3 streams
  • Resolution: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
  • Bit Rate Control: CBR/VBR
  • Video Bit Rate: H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
  • Day/Night: Auto (ICR)/Color/B/W
  • BLC: Yes
  • HLC: Yes
  • WDR: 120 dB
  • Scene Self-adaptation (SSA): Yes
  • White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
  • Gain Control: Auto/Manual
  • Noise Reduction: 3D DNR
  • Motion Detection: OFF/ON (4 areas, rectangular)
  • Region of Interest (RoI): Yes (4 areas)
  • Smart Illumination: Yes
  • Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
  • Mirror: Yes
  • Privacy Masking: 4 areas
  • Audio:
  • Built-in MIC: Yes
  • Audio Compression: G.711a; G.711Mu; G726
  • Alarm:
  • Alarm Event: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception
  • Network:
  • Network: RJ-45 (10/100 Base-T)
  • SDK and API: Yes
  • Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
  • Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
  • Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
  • User/Host: 20 (Total bandwidth: 72 M)
  • Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
  • Browser: IE: IE8; IE9; IE11 Chrome Firefox
  • Management Software: Smart PSS; DSS; DMSS
  • Mobile Phone: IOS; Android
  • Certification:
  • Certifications: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
  • Power:
  • Power Supply: 12V DC/PoE (802.3af)
  • Power Consumption: Basic power consumption: 2.6W (12V DC); 3.3W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 6W (12V DC); 7.3W (PoE)
  • Environment:
  • Operating Conditions: –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
  • Storage Conditions: –40°C to +60°C (–40°F to +140°F)
  • Protection Grade: IP67
  • Structure:
  • Casing: Metal
  • Dimensions: 108.3 mm × Φ122 mm (4.3" × Φ4.8")
  • Net Weight: 685g (1.5 lb)
  • Gross Weight: 828 g (1.8 lb)
