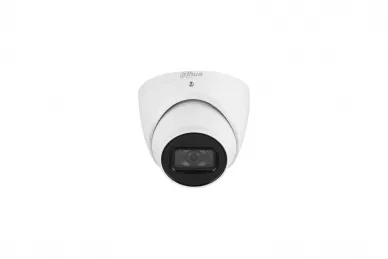

Dahua IPC-HDW3541EM-S-0280B-S2 IP Camera

368,98 EUR including 23.00% VAT
Product code: #35895
Manufacturer: Dahua
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Dahua IPC-HDW3541EM-S-0280B-S2 IP Camera


Technical parameters:

Camera

  • Image Sensor: 1/2.7" CMOS
  • Max. Resolution: 2960 (H) × 1668 (V)
  • ROM: 128 MB
  • RAM: 512 MB
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
  • Min. Illumination: 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
  • S/N Ratio: >56 dB
  • Illumination Distance: 50 m (164.04 ft)
  • Illuminator On/Off Control: Auto/Manual
  • Illuminator Number: 2 (IR LED)
  • Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°

Lens

  • Lens Type: Fixed-focal
  • Lens Mount: M12
  • Focal Length: 2.8 mm; 3.6 mm; 6 mm
  • Max. Aperture: F1.4
  • Field of View: 2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129° 3.6 mm: Horizontal: 80°; Vertical: 57°; Diagonal: 107° 6 mm: Horizontal: 50°; Vertical: 37°; Diagonal: 64°
  • Iris Control: Fixed
  • Close Focus Distance: 2.8 mm: 1.1 m (3.61 ft) 3.6 mm: 1.7 m (5.58 ft) 6 mm: 3.3 m (10.83 ft)
  • DORI Distance: Lens
  • 2.8 mm: 63.6 m (208.66 ft)
  • 3.6 mm: 85.4 m (280.18 ft)
  • 6 mm: 124.0 m (406.82 ft)

Intelligence

  • IVS (Perimeter Protection): Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
  • AI SSA: Yes
  • Quick Pick: With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
  • Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

  • Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
  • Smart Codec: Smart H.265+ Smart H.264+
  • AI Coding: AI H.265 AI H.264
  • Video Frame Rate: Main stream: 2880 × 1620 @ (1–20) fps / 2960 × 1668 @ (1–20) fps / 2688 × 1520@ (1–25/30 fps) Sub stream 1: 704 × 576 @ (1–25 fps)/ 704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
  • Stream Capability: 3 streams
  • Resolution: 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
  • Bit Rate Control: CBR/VBR
  • Video Bit Rate: H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
  • Day/Night: Auto (ICR)/Color/B/W
  • BLC: Yes
  • HLC: Yes
  • WDR: 120 dB
  • Scene Self-adaptation (SSA): Yes
  • White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
  • Gain Control: Auto
  • Noise Reduction: 3D NR
  • Motion Detection: OFF/ON (4 areas, rectangular)
  • Region of Interest (RoI): Yes (4 areas)
  • Defog: Yes
  • AFSA: Yes
  • Image Rotation: 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
  • Mirror: Yes
  • Privacy Masking: 4 areas

Audio

  • Built-in MIC: Yes
  • Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723

Alarm

  • Alarm Event: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception

Network

  • Network Port: RJ-45 (10/100 Base-T)
  • SDK and API: Yes
  • Network Protocol: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
  • Cyber Security: Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
  • Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
  • User/Host: 20 (Total bandwidth: 64 M)
  • Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
  • Browser: IE:IE11 Chrome Firefox
  • Management Software: Smart PSS; DSS; DMSS
  • Mobile Client: iOS; Android

Certification

  • Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

  • Power Supply: 12 VDC/PoE (802.3af)
  • Power Consumption: Basic: 4.3 W (12 VDC); 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)

Environment

  • Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH)
  • Storage Temperature: –40 °C to +60 °C (–40 °F to 140 °F)
  • Protection: IP67

Structure

  • Casing: Metal
  • Product Dimensions: 93.6 mm × Φ106.0 mm (3.69" × Φ4.17")
  • Net Weight: 500 g (1.10 lb)
  • Gross Weight: 770 g (1.70 lb)
