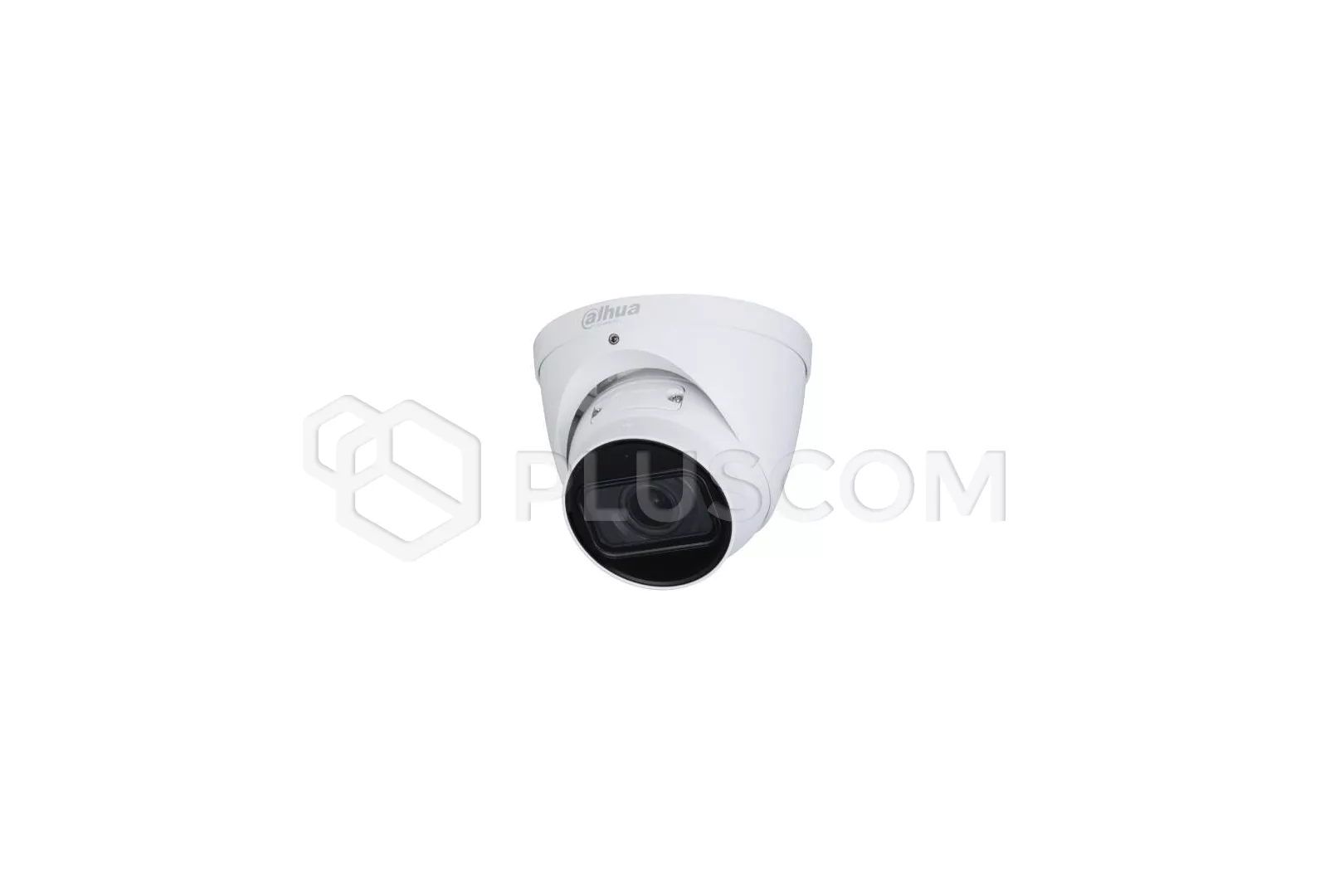

Dahua IPC-HDW3241T-ZAS-27135 IP Camera

Dahua IPC-HDW3241T-ZAS-27135 IP Camera

Technical parameters:

• Technical Specification:
• Camera:
• Image Sensor: 1/2.8” 2Megapixel progressive CMOS
• Max. Resolution: 1920 (H) ×1080 (V)
• ROM: 128 MB
• RAM: 256 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
• Min. Illumination: 0.002 Lux@F1.5 (Color, 30IRE) 0.0002 Lux@F1.5 (B/W, 30IRE) 0 Lux (Illuminator on)
• S/N Ratio: > 56 dB
• Illumination Distance: 40 m (131.2 ft)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 2 (IR LED)
• Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
• Lens:
• Lens Type: Motorized vari-focal
• Mount Type: φ14
• Focal Length: 2.7 mm–13.5 mm
• Max. Aperture: F1.5
• Field of View: Horizontal: 108°–28° Vertical: 57° –16° Diagonal: 130° –33°
• Iris Type: Fixed
• Close Focus Distance: 0.8 m (2.6 ft)
• DORI Distance: Lens
• W: 44.1 m (144.7 ft)
• T: 153.1 m (502.3 ft)
• Professional, Intelligent:
• Perimeter Protection: Tripwire; intrusion (Recognition of human and vehicle)
• Intelligent Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
• Video:
• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream)
• Smart Codec: Smart H.265+/ Smart H.264+
• Video Frame Rate: Main stream (1920 × 1080@1–25/30 fps) sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps) third stream(1280 × 720@1–25/30 fps)
• Stream Capability: 3 streams
• Resolution: 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate: H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto/Manual
• Noise Reduction: 3D DNR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest(RoI): Yes (4 areas)
• Smart Illumination: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
• Mirror: Yes
• Privacy Masking: 4 areas
• Audio:
• Built-in MIC: Yes
• Audio Compression: G.711a; G.711Mu; G726
• Alarm:
• Alarm Event: No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD
• Network:
• Network: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
• Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
• Interoperability: ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone; Genetec
• Scene Self-adaptation (SSA): Yes
• User/Host: 20 (Total bandwidth: 64 M)
• Storage: FTP; SFTP; Micro SD Card (support max. 256 G); NAS
• Browser: IE: IE8, IE9, IE11 Chrome Firefox
• Management Software: Smart PSS, DSS, DMSS
• Mobile Phone: IOS; Android
• Certification:
• Certifications: CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
• Power:
• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption: <7.8W
• Environment:
• Operating Conditions: -30°C to +60°C (-22°F to +140°F)/less than 95%
• Storage Conditions: -40°C to +60°C (-40°F to +140°F)
• Protection Grade: IP67
• Structure:
• Casing: Metal
• Dimensions: 108.3 mm × Φ122 mm (4.3" × Φ4.8")
• Net Weight: 685g (1.5 lb)
• Gross Weight: 828 g (1.8 lb)
