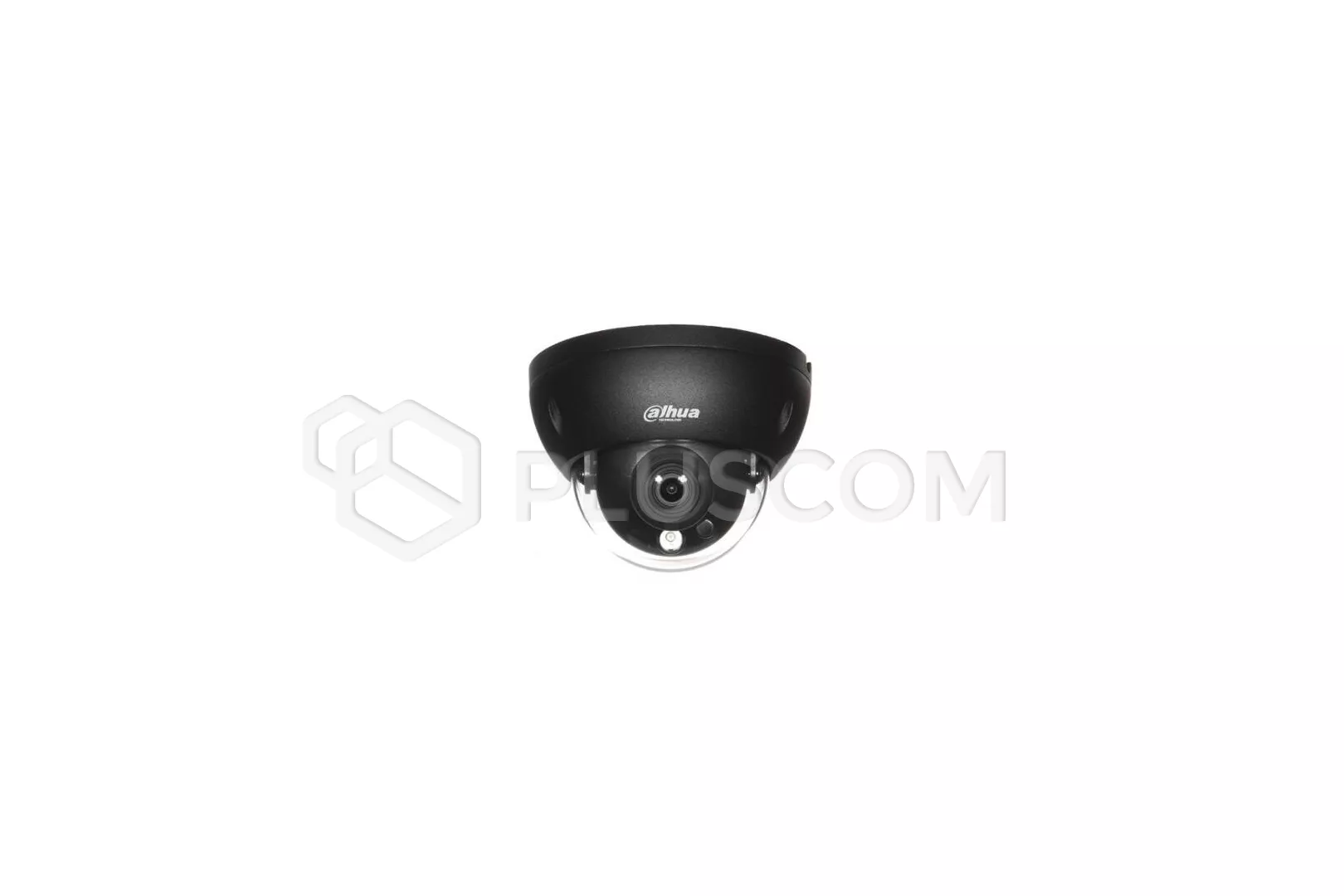

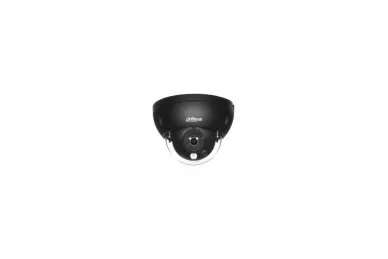

Dahua IPC-HDBW5241R-ASE-0280B-BLACK IP Camera

Dahua IPC-HDBW5241R-ASE-0280B-BLACK IP Camera

Technical parameters:

• Camera:
• Image Sensor: 1/2.8" CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• ROM: 128 MB
• RAM: 512 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Min. Illumination: 0.002 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
• S/N Ratio: >56 dB
• Illumination Distance: 50 m (164.04 ft) (IR)
• Illuminator On/Off Control: Auto; manual
• Illuminator Number: 1 (IR LED)
• Pan/Tilt/Rotation Range: Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
• Lens:
• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8 mm; 3.6 mm; 6 mm
• Max. Aperture: F1.6
• Field of View: 2.8 mm: Horizontal: 106°; Vertical: 57°; Diagonal: 126° 3.6 mm: Horizontal: 87°; Vertical: 46°; Diagonal: 104° 6 mm: Horizontal: 53°; Vertical: 30°; Diagonal: 60°
• Iris Control: Fixed
• Close Focus Distance: 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.2 m (3.94 ft) 6 mm: 2.5 m (8.20 ft)
• DORI Distance: Lens
• 2.8 mm: 38.6 m (126.64 ft)
• 3.6 mm: 55.2 m (181.10 ft)
• 6 mm: 82.8 m (271.65 ft)
• Smart Event:
• IVS: Abandoned object; missing object
• Heat Map: Yes
• Professional, intelligent:
• IVS (Perimeter Protection): Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
• SMD 3.0: Less false alarm, longer detection distance
• Face Detection: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face snapshot set as face, one-inch photo or custom; 3 snapshot strategies (real-time snapshot, optimization snapshot and quality first); face angle filter; optimization time setting
• People Counting: Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
• Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
• Video:
• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec: Smart H.265+; Smart H.264+
• AI Coding: AI H.265; AI H.264
• Video Frame Rate: Main stream: 1080p@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability: 3 streams
• Resolution: 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control: CBR/VBR
• Video Bit Rate: H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps
• Day/Night: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: 120 dB
• Scene Self-adaptation (SSA): Yes
• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control: Auto; manual
• Noise Reduction: 3D NR
• Motion Detection: OFF/ON (4 areas, rectangular)
• Region of Interest (RoI): Yes (4 areas)
• Defog: Yes
• Image Rotation: 0°/90°/180°/270°
• Mirror: Yes
• Privacy Masking: 8 areas
• Audio:
• Audio Compression: PCM; G.711a; G.711Mu; G.726; G.723
• Alarm:
• Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; face detection; SMD; people counting in area; stay detection; people counting; security exception
• Network:
• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Cyber Security: Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
• Network Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P
• User/Host: 20 (Total bandwidth: 80 M)
• Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS
• Browser: IE: IE 8 and later Chrome Firefox
• Management Software: Smart PSS; DSS; DMSS
• Mobile Client: iOS; Android
• Certification:
• Certifications: CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
• Port:
• Audio Input: 1 channel (RCA port)
• Audio Output: 1 channel (RCA port)
• Alarm Input: 1 channel in: 5 mA 3–5 VDC
• Alarm Output: 1 channel out: 300 mA 12 VDC
• Power:
• Power Supply: 12 VDC/PoE (802.3af)/ePoE
• Power Consumption: Basic: 2.3 W (12 VDC); 2.8 W (PoE) Max. (H.265 + three streams + intelligence on + IR on ): 4.8 W (12 VDC); 5.5 W (PoE)
• Environment:
• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: ≤95%
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Protection: IP67; IK10
• Structure:
• Casing: Metal + plastic
• Product Dimensions: Φ122 mm × 88.9 mm (4.80" × Φ3.50")
• Net Weight: 455 g (1.00 lb)
• Gross Weight: 615 g (1.36 lb)
