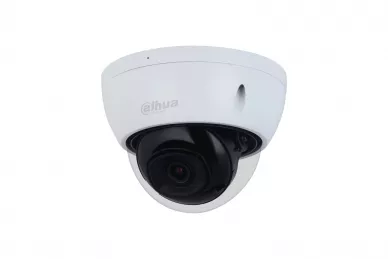

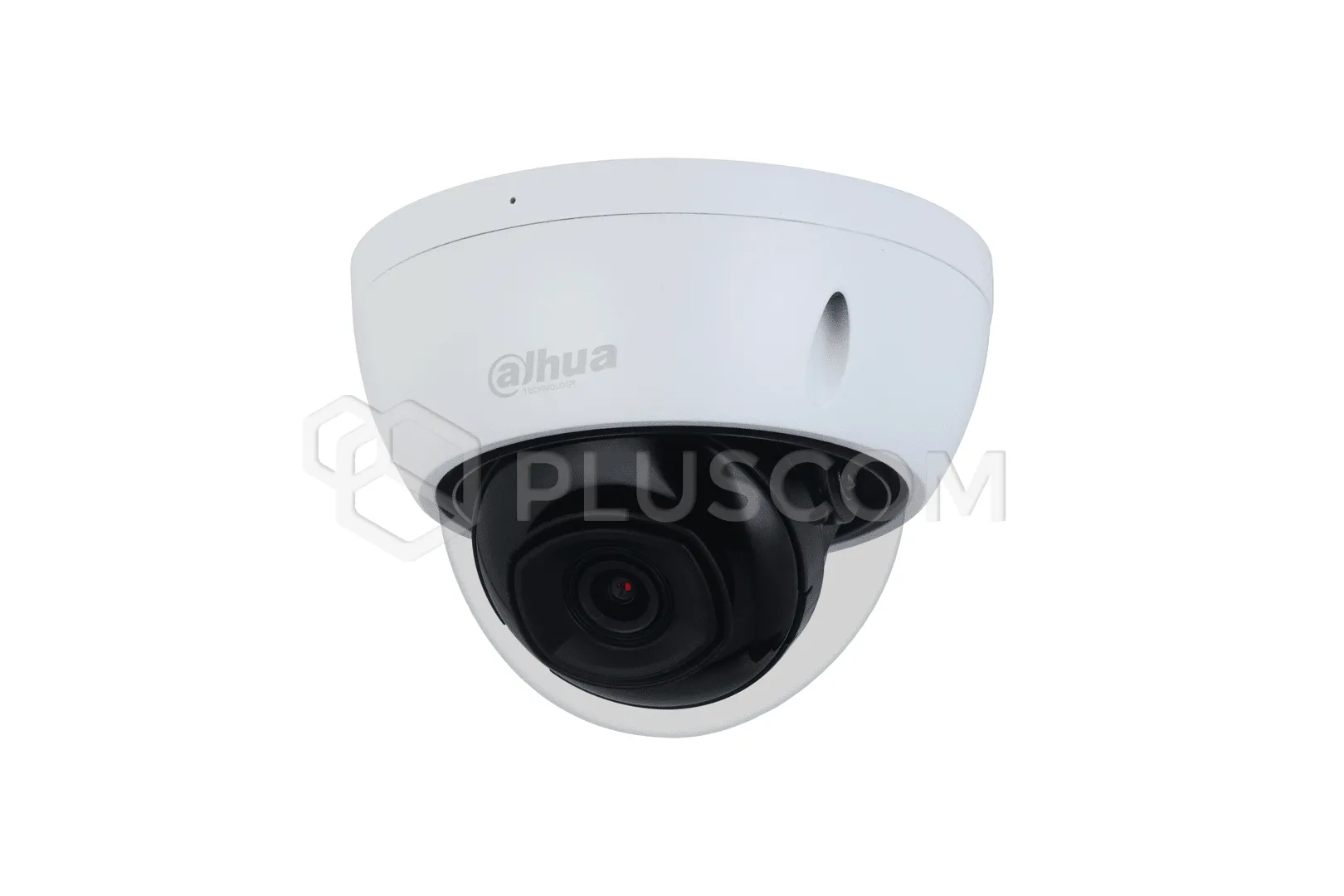

Dahua IPC-HDBW2441E-S-0280B IP Camera

319,78 EUR including 23.00% VAT
Product code: #35855
Manufacturer: Dahua
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Dahua IPC-HDBW2441E-S-0280B IP Camera


Technical parameters:

Camera

  • Image Sensor: 1/2.9" CMOS
  • Max. Resolution: 2688 (H) × 1520 (V)
  • ROM: 128 MB
  • RAM: 128 MB
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
  • Min. Illumination: 0.006 lux@F1.6 (Color, 30 IRE) 0.0006 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
  • S/N Ratio: >56 dB
  • Illumination Distance: up to 30 m (98.43 ft) (IR LED)
  • Illuminator On/Off Control: Auto;Manual
  • Illuminator Number: 3 (IR LED)
  • Pan/Tilt/Rotation Range: Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355°

Lens

  • Lens Type: Fixed-focal
  • Lens Mount: M12
  • Focal Length: 2.8 mm; 3.6 mm
  • Max. Aperture: F1.6
  • Field of View: 2.8 mm: H: 102°; V: 54°; D: 121° 3.6 mm: H: 84°; V: 42°; D: 101°
  • Iris Control: Fixed
  • Close Focus Distance: 2.8 mm: 1.1 m (2.30 ft) 3.6 mm: 1.7 m (4.27 ft)
  • DORI Distance: Lens
  • 2.8 mm: 63.6 m (208.66 ft)
  • 3.6 mm: 85.4 m (280.18 ft)

Intelligence

  • IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

  • Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
  • Smart Codec: Smart H.265+; Smart H.264+
  • Video Frame Rate: Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
  • Stream Capability: 2 streams
  • Resolution: 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
  • Bit Rate Control: CBR/VBR
  • Video Bit Rate: H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
  • Day/Night: Auto(ICR)/Color/B/W
  • BLC: Yes
  • HLC: Yes
  • WDR: 120 dB
  • White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
  • Gain Control: Manual;Auto
  • Noise Reduction: 3D NR
  • Motion Detection: OFF/ON (4 areas, rectangular)
  • Region of Interest (RoI): Yes (4 areas)
  • Smart Illumination: Yes
  • Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
  • Mirror: Yes
  • Privacy Masking: 4 areas

Audio

  • Built-in MIC: Yes
  • Audio Compression: G.711a; G.711Mu; G.726; PCM

Alarm

  • Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception;

Network

  • Network Port: RJ-45 (10/100 Base-T)
  • SDK and API: Yes
  • Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
  • Interoperability: ONVIF (Profile S/Profile G); CGI; P2P
  • User/Host: 6 (Total bandwidth: 36 M)
  • Storage: FTP;SFTP; Micro SD card (support max. 256 GB)
  • Browser: IE; Chrome; Firefox
  • Management Software: DSS; DMSS
  • Mobile Client: iOS; Android
  • Cyber Security: Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

  • Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

  • Power Supply: 12 VDC/PoE
  • Power Consumption: Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (ICR + H.265 + WDR + max. Illumination + intelligence on): 5 W (12 VDC); 6 W (PoE)

Environment

  • Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
  • Operating Humidity: ≤95%
  • Protection: IP67; IK10

Structure

  • Casing Material: Metal
  • Product Dimensions: 81.0 mm × Φ109.9 mm (3.19"× Φ4.33")
  • Net Weight: 0.34 kg (0.75 lb)
  • Gross Weight: 0.49 kg (1.08 lb)
