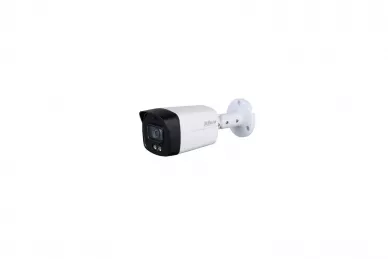

Dahua HAC-HFW1509TLM-A-LED-0360B

112,72 EUR including 23.00% VAT
Product code: #36260
Manufacturer: Dahua
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Dahua HAC-HFW1509TLM-A-LED-0360B


Technical parameters:

Camera

  • Image Sensor: 5MP CMOS
  • Max. Resolution: 2880 (H) × 1620 (V)
  • Pixel: 5MP
  • Scanning System: Progressive
  • Electronic Shutter Speed: PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 s
  • S/N Ratio: > 65 dB
  • Min. Illumination: 0.001 Lux/F1.0, 0 Lux warm light on
  • Illumination Distance: 40 m (131.2 ft)
  • Illuminator On/Off Control: Auto; manual
  • Illuminator Number: 2
  • Pan/Tilt/Rotation Range: Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°

Lens

  • Lens Type: Fixed lens
  • Mount Type: M12
  • Focal Length: 2.8 mm; 3.6 mm
  • Max. Aperture: F1.0
  • Field of View: 2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88; V: 46°; D: 104°
  • Iris Type: Fixed iris
  • Close Focus Distance: 2.8 mm: 1.6 m (5.25 ft); 3.6 mm: 2.3 m (7.5 ft)
  • DORI Distance: Lens
  • 2.8 mm: 67.4 m (212.3 ft)
  • 3.6 mm: 80.0 m (262.5 ft)

Video

  • Frame Rate: CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
  • Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
  • BLC: BLC/HLC/WDR/HLC-Pro
  • WDR: 120 dB
  • White Balance: Auto; Area WB
  • Gain Control: Auto; manual
  • Noise Reduction: 3D NR
  • Smart Light: Yes
  • Mirror: Off/On
  • Privacy Masking: Off/On (8 areas, rectangle)

Certifications

  • Certifications: CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

  • Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
  • Audio Input: One channel built-in mic (-A)

Power

  • Power Supply: 12 V ±30% DC
  • Power Consumption: Max 6.4 W (12 V DC, warm light on)

Environment

  • Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
  • Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F); < 95% (non-condensation)
  • Protection Grade: IP67

Structure

  • Casing: Metal front cover + plastic main body + metal bracket
  • Camera Dimensions: 198.4 mm × 80.2 mm × 76.2 mm (7.81" × 3.15" × 3")
  • Net Weight: 0.33 Kg (0.73 lb)
  • Gross Weight: 0.52 Kg (1.15 lb)
