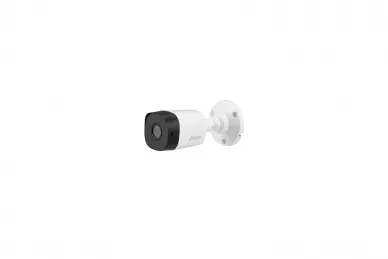

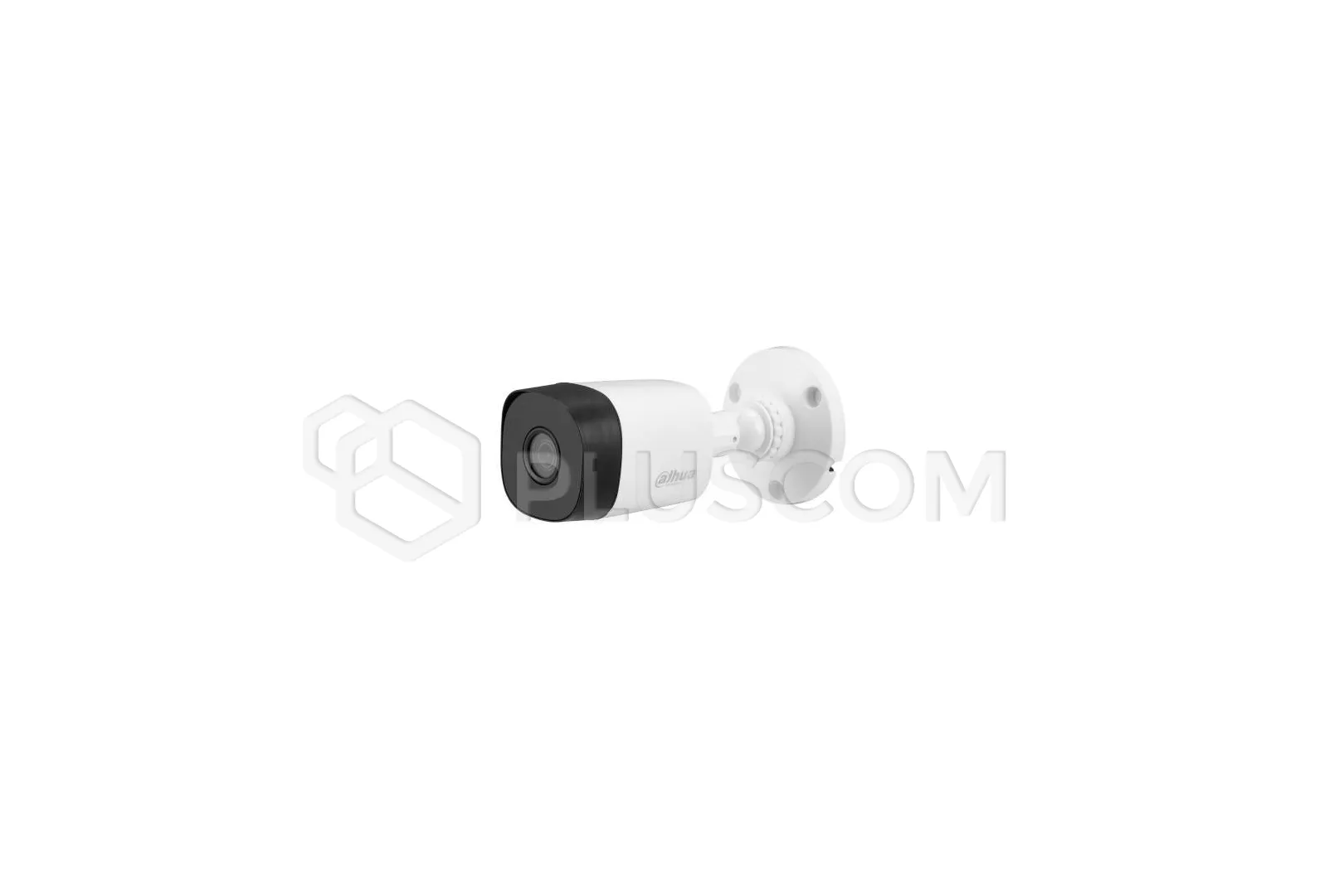

Dahua HAC-B1A21-0360B Cooper Camera

Dahua HAC-B1A21-0360B Cooper Camera

Technical parameters:

• Camera:
• Pixel: 2 MP
• Image Sensor: 2MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Scanning System: Progressive
• Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
• Min. Illumination: 0.04 lux@F2.0 (Color, 30 IRE) 0.004 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
• S/N Ratio: >65 dB
• Illumination Distance: 20 m (65.62 ft)
• Illuminator On/Off Control: Auto/Manual
• Illuminator Number: 2 (IR light)
• Pan/Tilt/Rotation Range: Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360°
• Lens:
• Lens Type: Fixed-focal
• Lens Mount: M12
• Focal Length: 2.8 mm; 3.6 mm; 6 mm
• Max. Aperture: F2.0
• Field of View: 2.8 mm: H: 100°; V: 53°; D: 120° 3.6 mm: H: 82°; V: 42°; D: 98° 6 mm: H: 53°; V: 30°; D: 60°
• Iris Control: Fixed
• Close Focus Distance: 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.0 m (3.28 ft) 6 mm: 2.0 m (6.56 ft)
• DORI Distance: Lens
• 2.8 mm: 46.9 m (153.87 ft)
• 3.6 mm: 60.9 m (199.80 ft)
• 6 mm: 82.8 m (271.65 ft)
• Video:
• Video Frame Rate: CVI: PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30 fps; 720p@30 fps TVI: PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30 fps; 720p@30 fps AHD: PAL: 1080p@25 fps; 720p@25 fps NTSC: 1080p@30 fps; 720p@30 fps CVBS: PAL: 960H NTSC: 960H
• Resolution: 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 576/960 × 480)
• Day/Night: Auto (ICR)/Color/B/W
• BLC: BLC; HLC; DWDR
• WDR: DWDR
• White Balance: Auto; Area white balance
• Gain Control: Auto/Manual
• Noise Reduction: 2D NR
• Smart Illumination: Yes
• Mirror: Yes
• Privacy Masking: Off/On (8 areas, rectangle)
• Certification:
• Certifications: CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
• Port:
• Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Power:
• Power Supply: 12 VDC ± 30%
• Power Consumption: Max. 2.7 W (12 VDC, IR on)
• Environment:
• Operating Temperature: –40 °C to +60 °C (–40 °F to 140 °F)
• Operating Humidity: <95% (RH), non-condensing
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Protection: IP67
• Structure:
• Casing: Plastic
• Product Dimensions: 149.3 mm × 69.8 mm × 69.8 mm (5.88" × 2.75" × 2.75")
• Packaging Dimensions: 164 mm × 79 mm × 90 mm (6.46" × 3.11" × 3.54")
• Net Weight: 0.14 kg (0.31 lb)
• Gross Weight: 0.17 kg (0.37 lb)
• Installation: Wall mount; ceiling mount; horizontal pole mount
