Came VER13DMS ATOMO Automation kit for garage doors with a door area of ​​up to 21m2

420,35 EUR including 23.00% VAT
Product code: #26458
Manufacturer: CAME
  • Gate area: up to 21m2
  • Included: actuator, frequency card, 4-channel remote control
  • Power supply: 230V
  • Engine power supply: 24 V
  • Thrust force: 1300 N
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came V 0682 Chain rail 3.52m Came V 0679 Chain rail 3.02m long Came V005 Chain Rail Extension 1.45 m Came V122 Transmission arm for sectional doors Came V121 External actuator release with 3 m cable Came PL0243 Key operated emergency release mounted on the gate Came 806LA-0060 KLT warning lamp Came 801XC-0010 Card for powering the system with batteries Came V 0688 Rail with strap 4.02m Came V 0686 Rail with strap 3.52m

CAME VER13DMS ATOMO Automation kit for garage doors with a surface area of ​​21m2

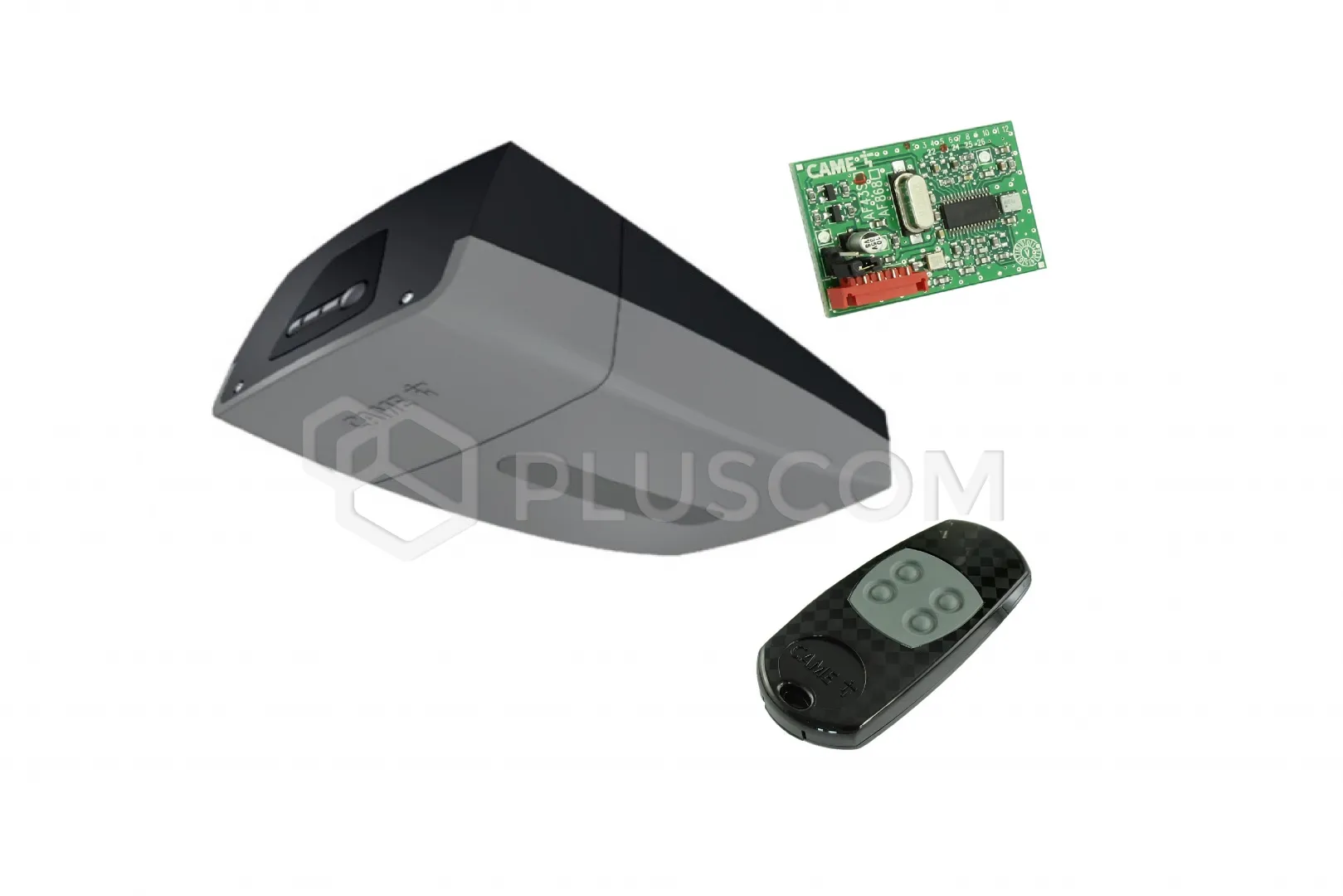

The kit includes:

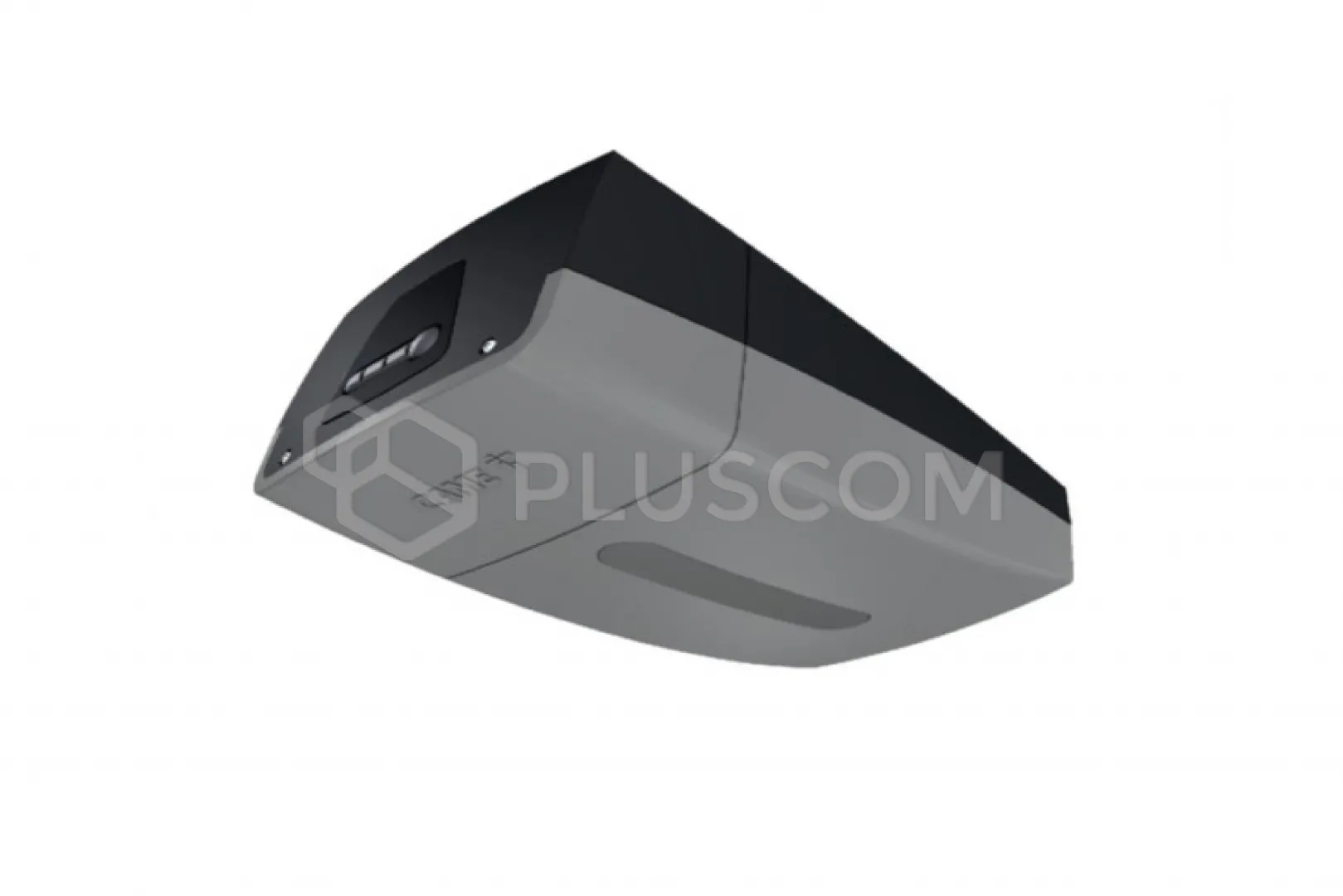

  • VER13DMS actuator

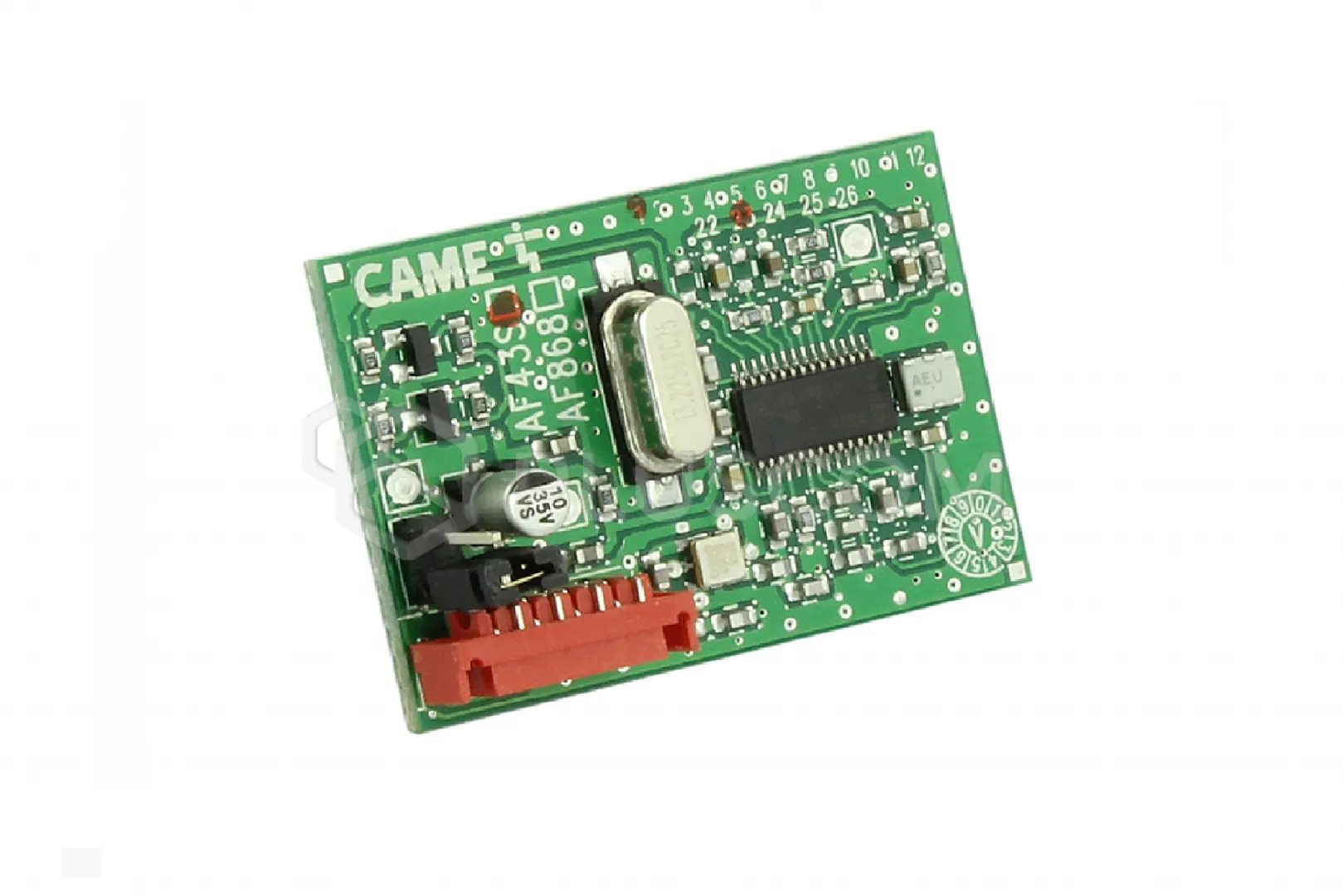

  • AF43S Frequency card

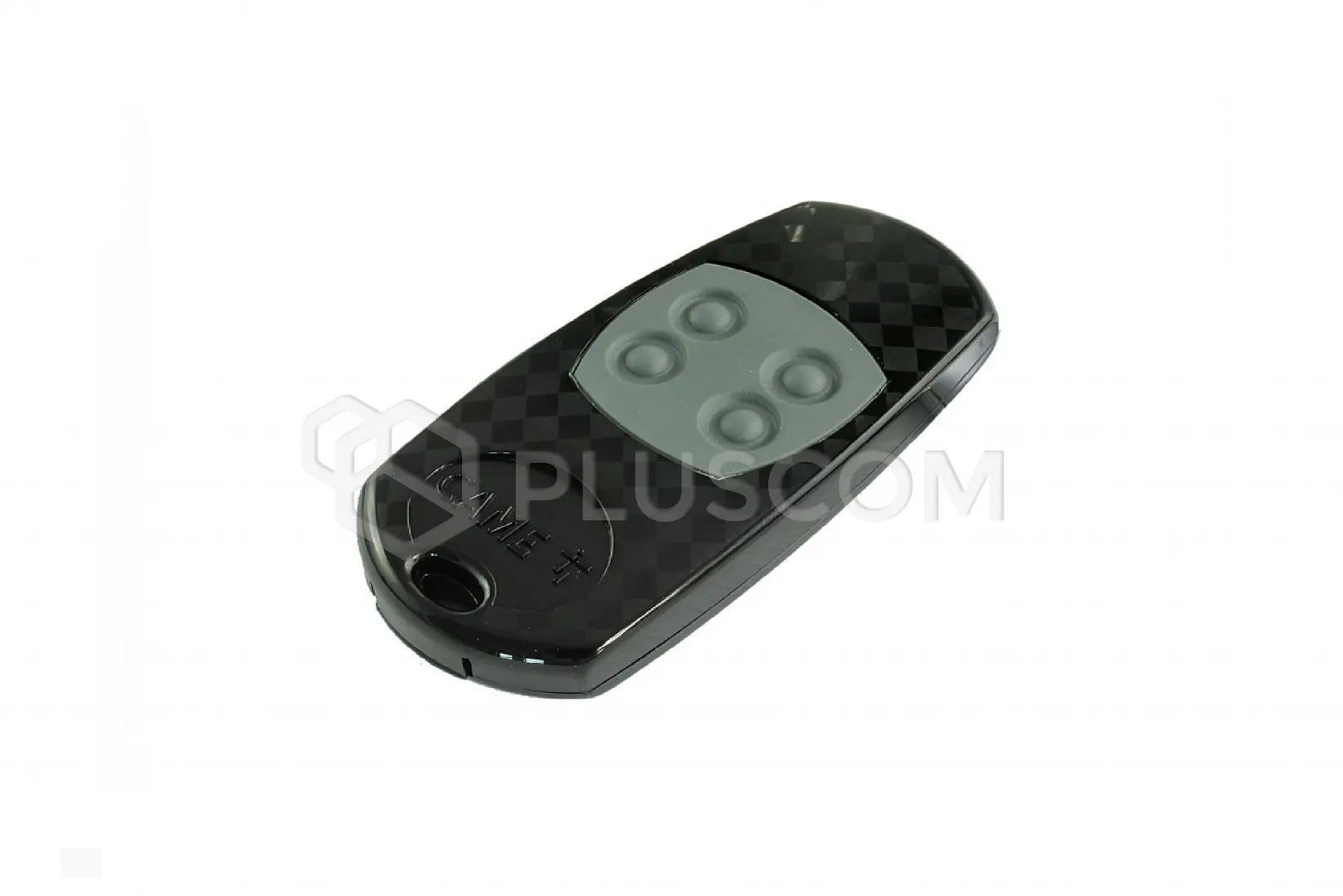

  • AT04EV Four-channel rolling code remote control
CAME VER13DMS ATOMO Automation kit for garage doors with a door area of ​​up to 21m2

CAME VER13DMS ATOMO Automation kit for garage doors with a door area of ​​up to 21m2
The kit does not include a transfer rail.

CAME VER PLUS 10 VER13DMS KIT AUTOMATION FOR GARAGE DOORS WITH A SURFACE AREA OF UP TO 21m2.

A complete automation set for Came tilting and sectional garage doors VER PLUS 10.

VER PLUS 10 VER13DMS actuators - thanks to the VER system, garage door automation has become very simple. Just connect the rail carrying the drive with the actuator and the automaton is ready for installation.
VER is quick to install and does not require modifying the gate, because it is mounted to the lintel and ceiling halfway across the width of the gate.

All VER series actuators are powered by 24V voltage, which makes them not only cheap but also very safe. The actuator is simple in design and assembly.
Also the rails carrying the drive (available in several versions) are immediately ready for use. We supply them in lengths corresponding to different gate heights.

FEATURES:

  • Self-coding between transmitter and receiver
  • Amperometric obstacle detection: adjustable with trimmer
  • Stop gate movement with remote control
  • Moving gate protection. Open/close commands are ignored if there is an obstacle in the gate opening
  • Emergency power supply thanks to the connected V0670 card

Inside the actuator housing there is space for mounting the card and emergency batteries that power the motor during power outages. Total 24V safety. The control board built into the unit powers the motor and all accessories with low voltage.

Technical data:

  • Protection class: IP40
  • Power supply: 230V AC 50/60Hz
  • Motor power supply: 24 V D.C.
  • Maximum current consumption: 7 A
  • Maximum motor power (W): 280
  • Operating temperature (°C): -20 - +55
  • Travel speed: 7m/min.
  • Thrust force: 1300N
