CAME VER08DES 24V actuator with control unit, max. gate area 12m2

234,49 EUR including 23.00% VAT
Product code: #26083
Manufacturer: CAME
  • Gate area: up to 12m2
  • Power supply: 230 V
  • Engine power supply: 24 V
  • Thrust force: 800 N
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,54 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came V121 External actuator release with 3 m cable Came V06007 Kevlar rail with strap 4.02m Came V06006 Kevlar rail with strap 3.52m Came V06005 Kevlar rail with strap 3.02 m Came V06003 Chain rail 4.02 m Came V06002 Chain rail 3.52 m Came V06001 Chain rail 3.02 m Came PL0324 Rail with strap, combined, total length 3.3 m Came PL0323 Chain rail, combined, total length 3.3 m Came PL0243 Key operated emergency release mounted on the gate

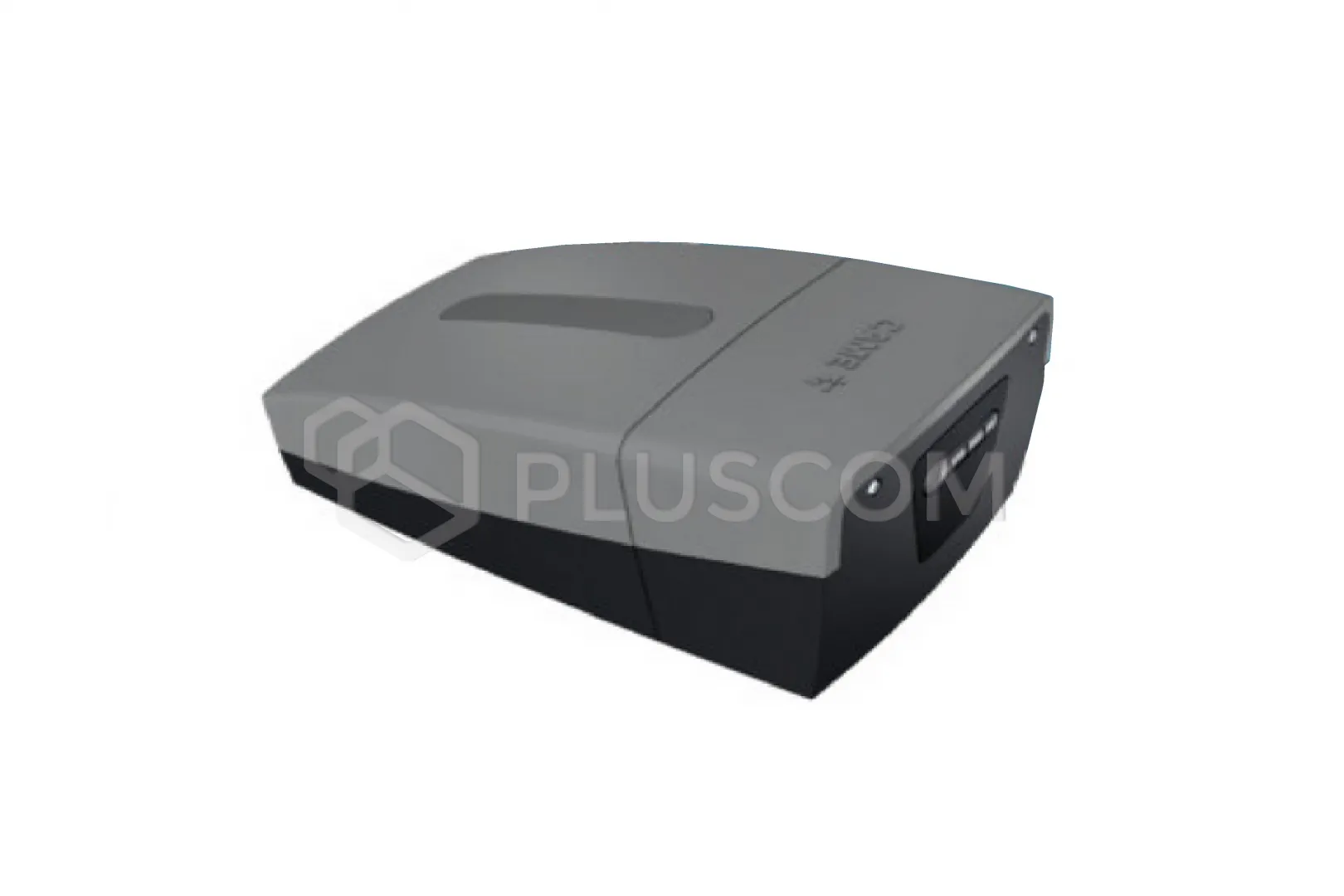

CAME VER08DES 24V actuator with control unit, max. gate area 12m2


An electromechanical actuator with a pulling force of 800 N, designed for sectional and overhead garage doors in residential buildings. Depending on the type and height of the door, the appropriate guide must be purchased. We offer chain and belt guides.

Inside the actuator housing, there is space for installing a card and emergency batteries that power the motor during power outages.

FEATURES:

  • Ready-to-use kit, a simple way to automate your gate
  • Simple installation of the automation to the drive rail
  • Reliable and safe 24 V DC power supply system
  • Accessibility to connect accessories for increased safety or additional control
  • Transmission guides (chain and belt) are compatible with the drive. They ensure reliable and quiet operation.
  • Additionally, there is an external release system mounted via a cable directly to the door handle.
  • All models are tested in accordance with applicable regulations.
  • Thanks to the included rolling code decoder, it is possible to program up to 250 different users.
  • Programming and using functions is performed via a display integrated with the electronic board.
  • The drive automatically regulates the force.

Ideal solution for sectional and up-and-over doors for use in residential buildings.

Technical Specifications:

  • Power Supply: 230 V
  • Motor Power Supply: 24 V
  • Power Consumption in Stand-By Mode: 6.5 W
  • Accessory Power: 20 W
  • Traverse Speed: 8 m/min
  • Thrust Force: 800 N
  • Number of Cycles per Hour: 10
  • Operating Temperature Range: -20°C to +55°C
  • Protection Rating: IP20
  • Weight: 5.1 kg
