Came V6000 ATOMO Automation kit for garage doors with a door area of ​​up to 9m2

210,17 EUR including 23.00% VAT
Product code: #26453
Manufacturer: CAME
  • Gate area: up to 9m2
  • Included: actuator, frequency card, 4-channel remote control
  • Power supply: 230V
  • Engine power supply: 24 V
  • Thrust force: 600 N
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came V06007 Kevlar rail with strap 4.02m Came V06006 Kevlar rail with strap 3.52m Came V06005 Kevlar rail with strap 3.02 m Came V06003 Chain rail 4.02 m Came V06002 Chain rail 3.52 m Came V06001 Chain rail 3.02 m Came PL0324 Rail with strap, combined, total length 3.3 m Came PL0323 Chain rail, combined, total length 3.3 m

CAME V6000 ATOMO Automation kit for garage doors with a door surface area of ​​up to 9 m2

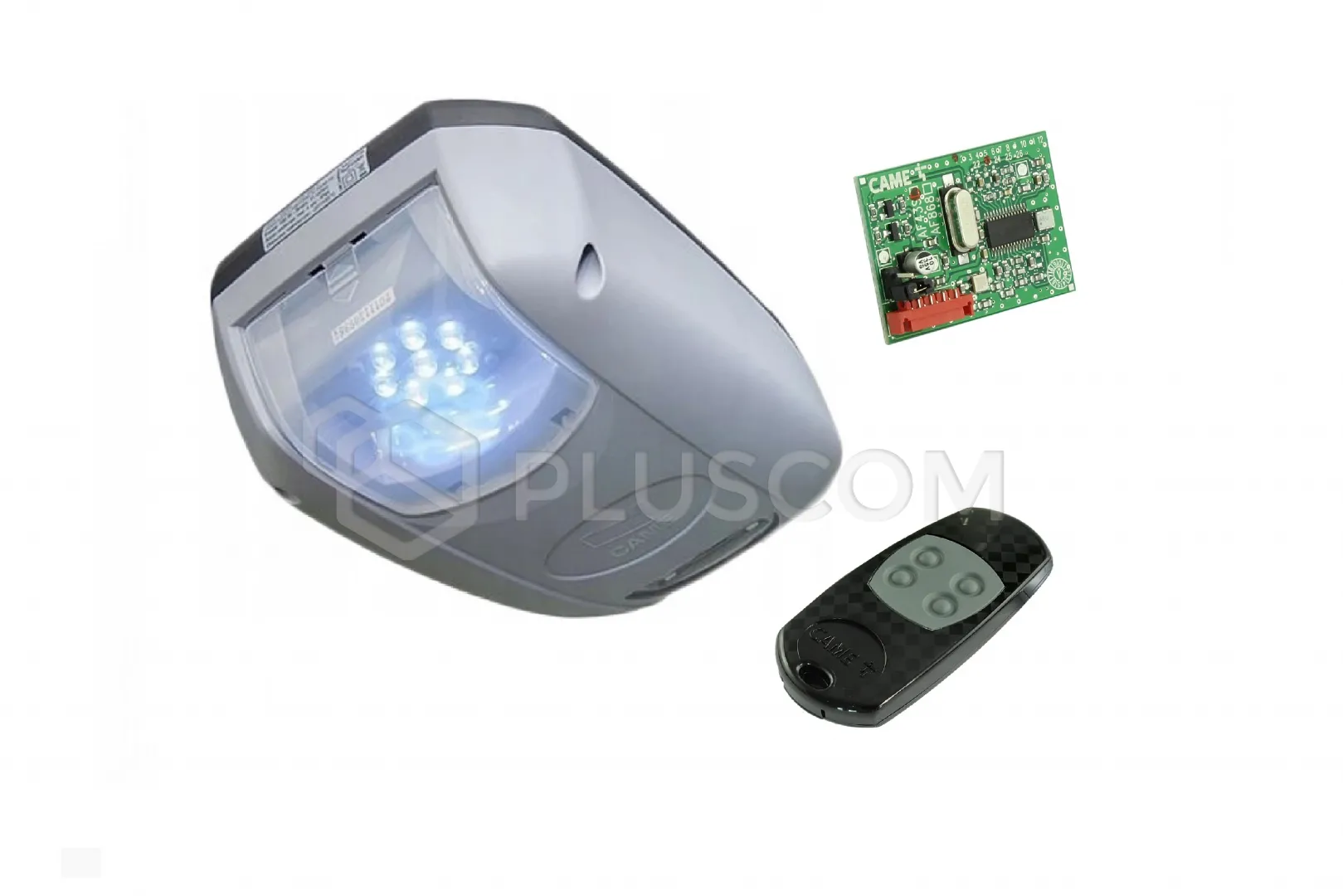

The kit includes:

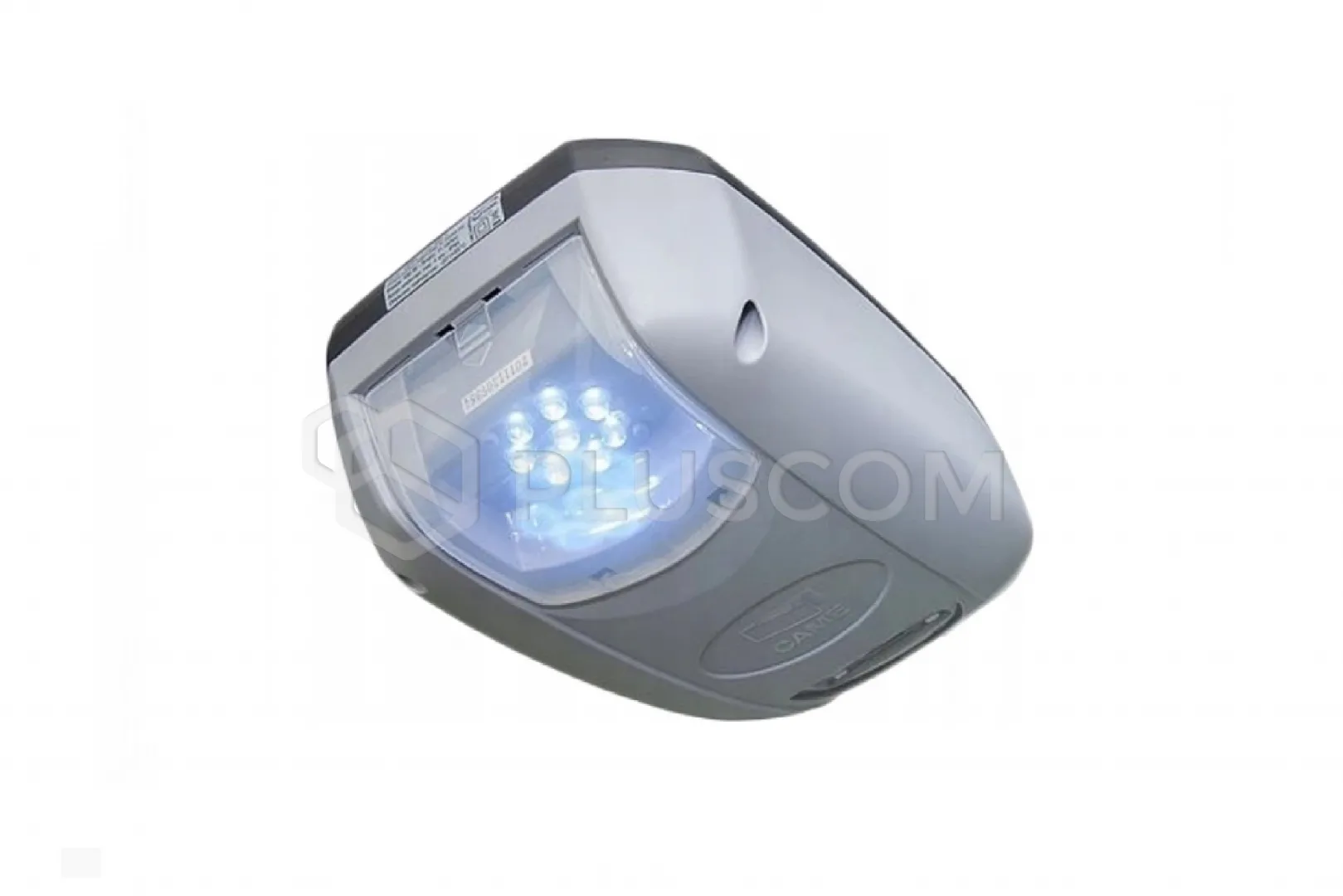

  • V6000 actuator

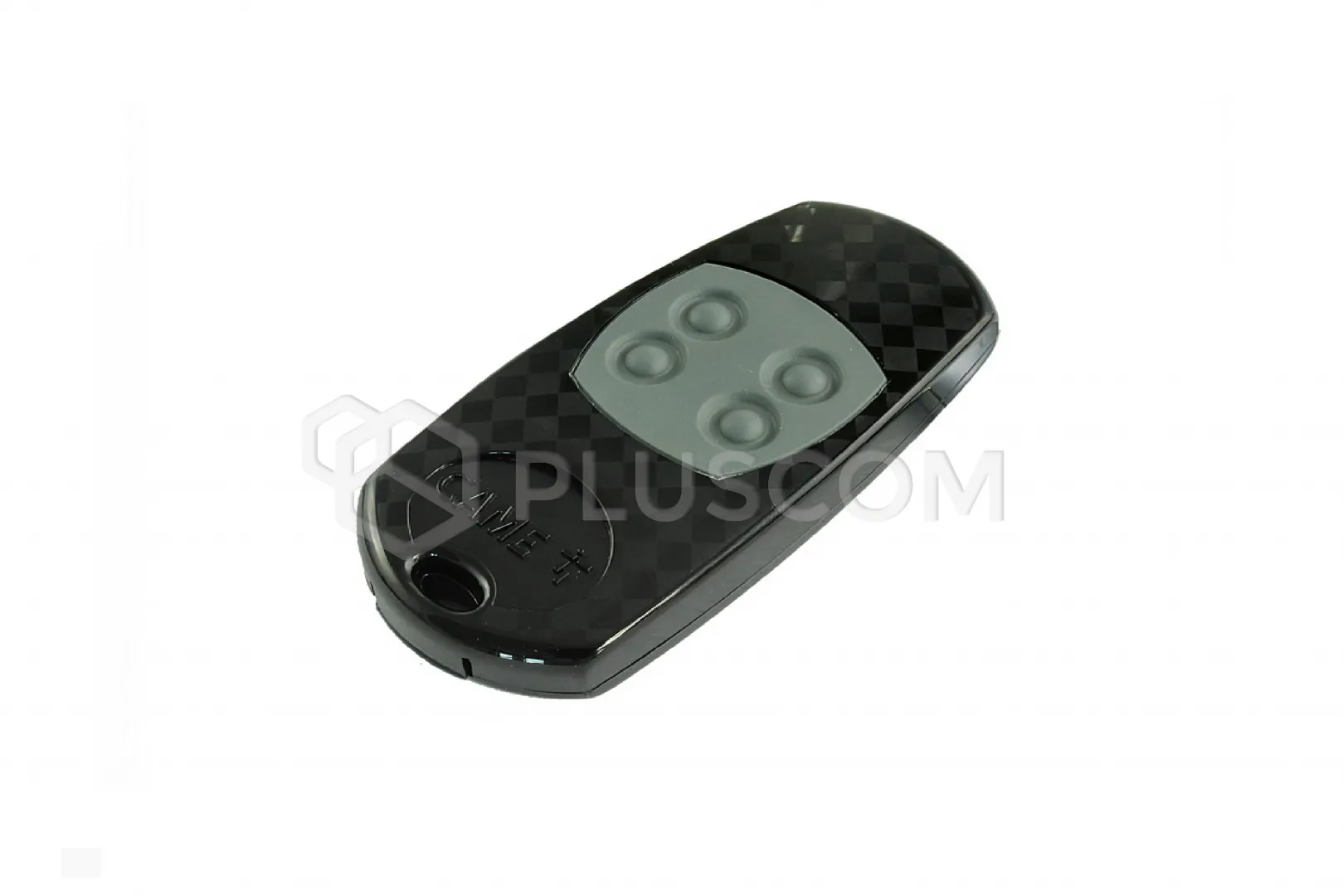

  • AT04EV Four-channel rolling code remote control

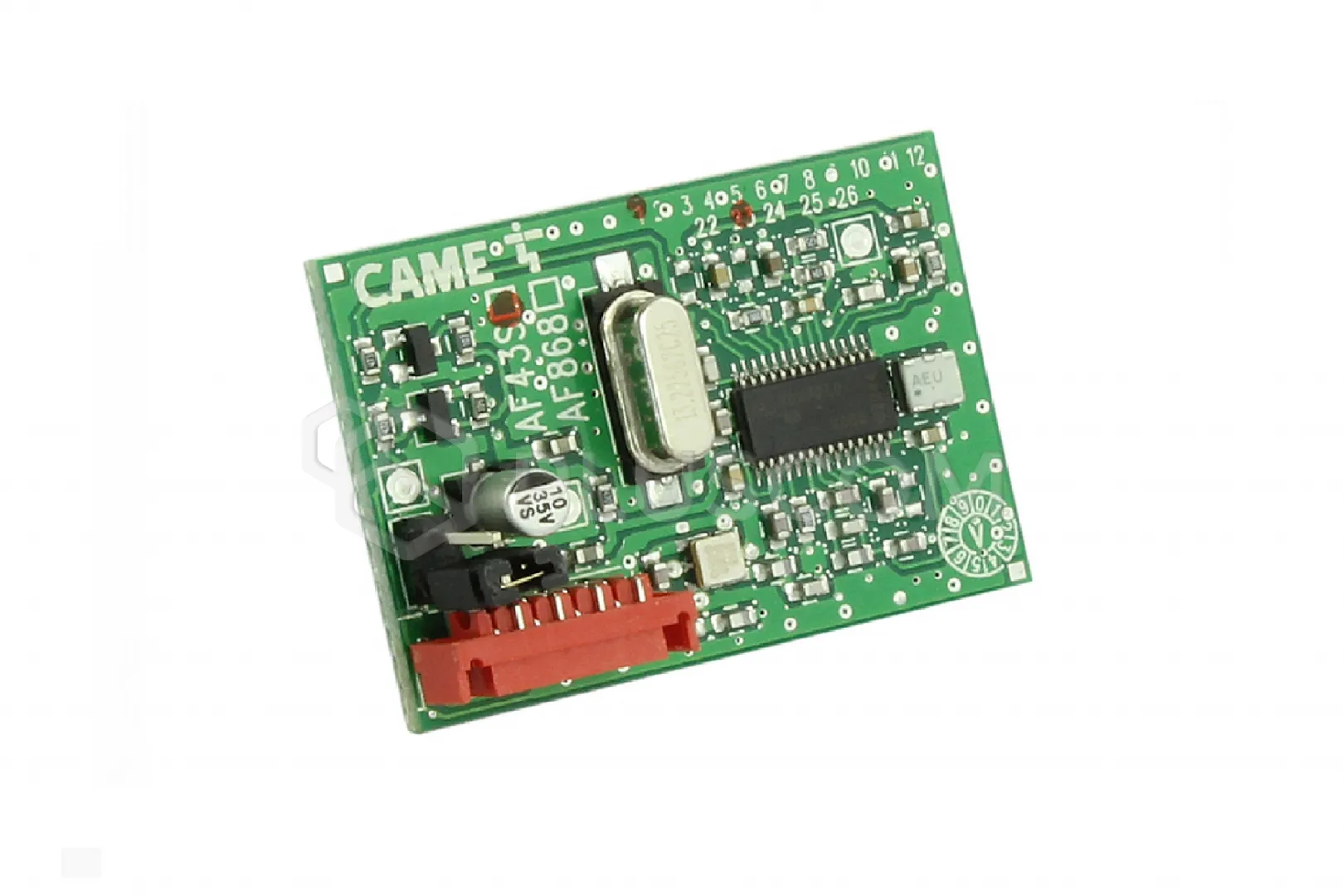

  • AF43S Frequency card
CAME V6000 ATOMO Automation kit for garage doors with a door area of ​​up to 9 m2

CAME V6000 ATOMO Automation kit for garage doors with a door area of ​​up to 9 m2
The kit does not include a transfer rail.

A system that will satisfy almost any installation requirement.

The new V6000 automation has been designed to automate all types of garage doors for residential use. Counterbalanced overhead doors and sectional doors are devices that are easy to manoeuvre and simple to install.

The V6000 operates at 24V DC, providing the user with maximum functionality and combining modern EN TESTED technology with the traditional safety functions offered by the CAME electronic system.

The display integrated in the electronic board allows the use of various functions and facilitates programming. The actuator is equipped with a lamp that illuminates the room.

Total 24V safety. The control board built into the unit powers the motor and all accessories with low voltage.

Technical data:

  • Gate area: up to 9m2
  • Power supply: 230 V
  • Motor power supply: 24 V
  • Nominal motor power: 90 W
  • Motor current consumption: 6 A max
  • Thrust: 600 N
  • Operating temperature: -20°C ÷ +55°C
  • Protection class: IP20
  • Weight: 4.9kg
  • Driver dimensions [mm]: 210 x 365 x 115
  • Max. height for swing gates with counterweight: 2.4 m
  • Max. height for spring swing gates: 3.25 m
  • Max. gate height: 3.2 m
