Came V1000 Operator equipped with a control unit with a built-in encoder for gates up to 14 m2

225,74 EUR including 23.00% VAT
Product code: #26072
Manufacturer: CAME
  • Power supply: 230V AC
  • Engine power supply: 24V
  • Thrust force 1000 N
  • Opening speed 8 m/min
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came PL0323 Chain rail, combined, total length 3.3 m Came PL0243 Key operated emergency release mounted on the gate Came V06007 Kevlar rail with strap 4.02m Came V06006 Kevlar rail with strap 3.52m Came V06005 Kevlar rail with strap 3.02 m Came V06003 Chain rail 4.02 m Came V06002 Chain rail 3.52 m Came V06001 Chain rail 3.02 m Came PL0324 Rail with strap, combined, total length 3.3 m

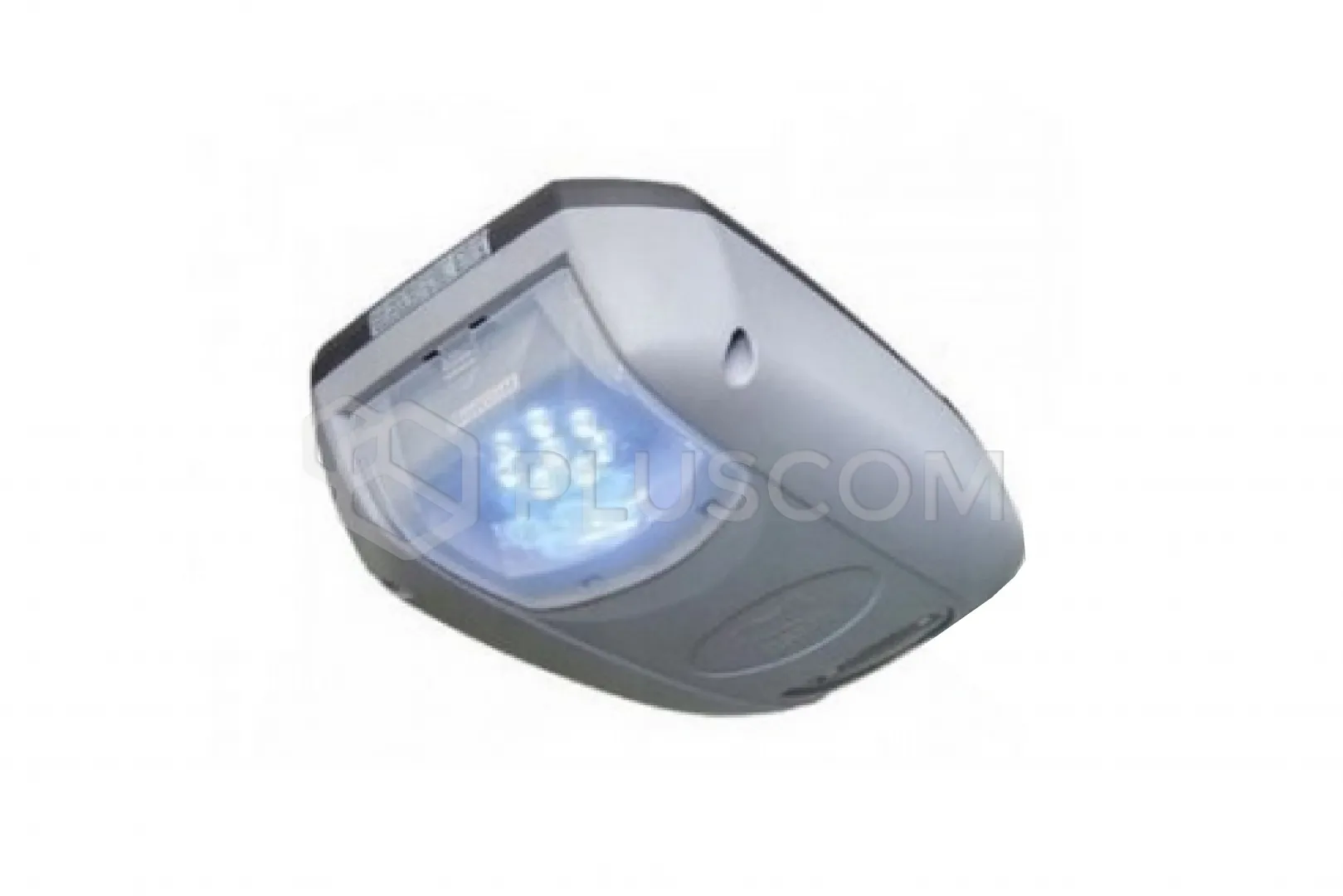

CAME V1000 Operator equipped with a control unit with built-in encoder for gates up to 14m2


Operator equipped with a control unit with built-in encoder for sectional and swing gates.

The operator is simple in construction and assembly. The rails carrying the drive (available in several versions) are also ready for immediate use.

The display integrated with the electronic board enables the use of individual functions and facilitates programming. The system is also equipped with a lamp illuminating the room, which significantly facilitates all maneuvers.

Total 24V safety. The control board built into the unit supplies the motor and all accessories with low voltage.

Technical data:

  • Protection class IP20
  • Power supply 230 V A.C.
  • Motor power supply 24 V D.C.
  • Power consumption in standby mode 6.5 W
  • Maximum power of accessories 20 W
  • Nominal power 150 W
  • Opening speed 8 m/min
  • Thrust force 1000 N
  • Operating temperature -20°C ÷ +55°C
  • Device class II
  • Weight 5.1 kg
