Came UNIP Actuator for individual parking spaces

253,76 EUR including 23.00% VAT
Product code: #26268
Manufacturer: CAME
  • Opening time 10s
  • Max. parking space width 2.45m
  • For one position
  • Just the base
  • 24V motor
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came ZL22 Control unit supporting one Unipark as standard (801QA-0030) Came ARK2 Large barrier, 800 mm wide Came ARK1 Small barrier, 350 mm wide

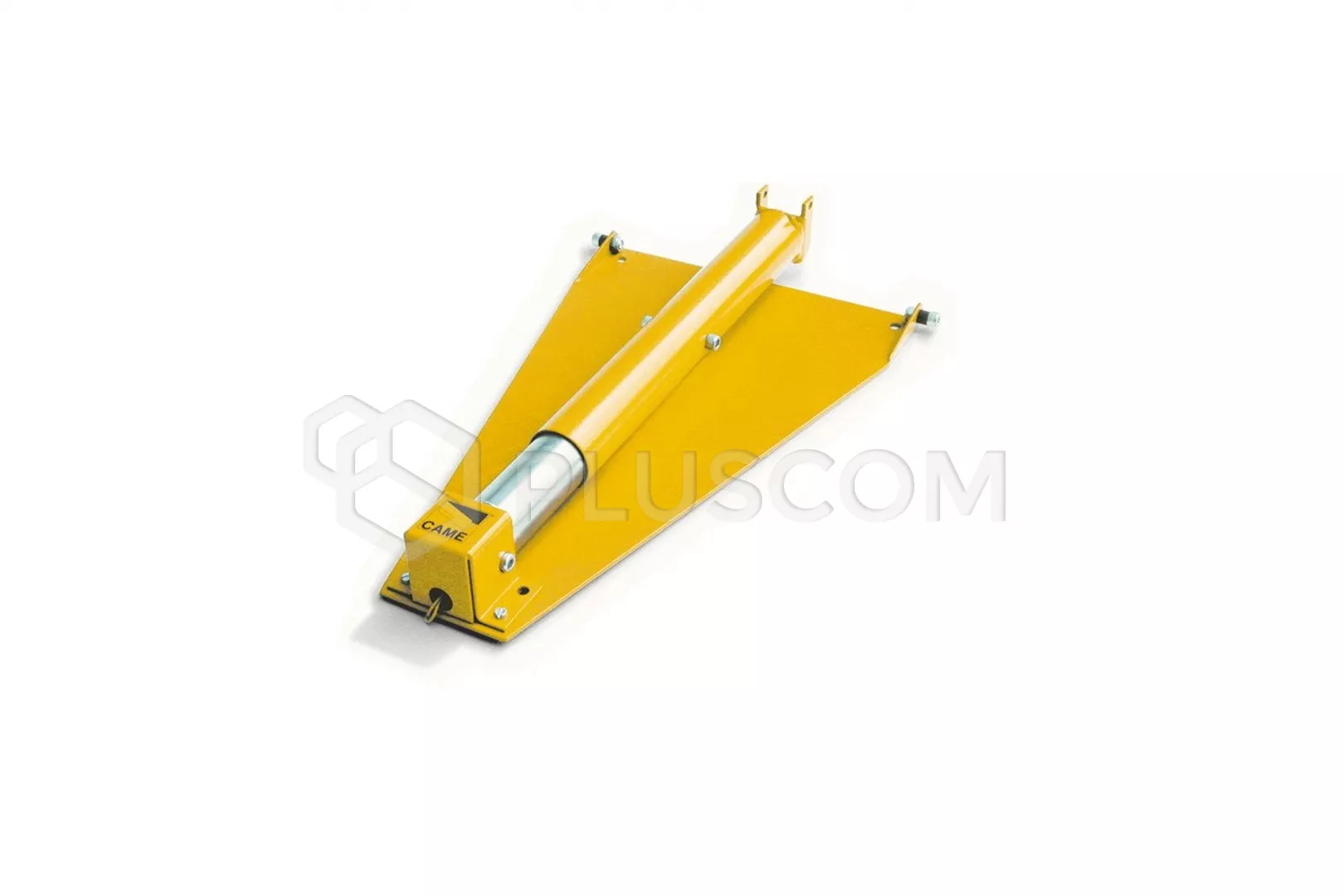

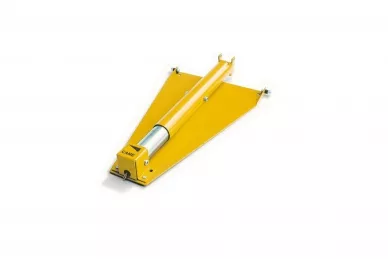

CAME UNIP Actuator for individual parking spaces

UNIP is self-locking electromechanical actuator with a 24V motor for the ARK1 or ARK2 parking barrier.
The gearmotor is designed for intensive use and guarantees operation even in the event of a power outage.
Fully automatic, remote-controlled, quickly unlocks and locks a single parking space.

UNIPARK is designed for quick installation on a flat surface. It is used in private and public buildings and industrial facilities.

Main functions:
  • self-coding: between transmitter and receiver
  • amperometric obstacle detection: adjustable
  • stopping traffic: when an obstacle is detected, it provides greater safety
  • connection of up to 4 firewalls in one control panel after using the appropriate number of LM22 cards
There are two versions of the actuator barrier: standard version of the ARK1 firewall version with a wide arm ARK2 to increase the reserved space

TECHNICAL DATA

  • Power supply: 230 V 50/60 Hz
  • Motor power supply: 24 V D.C.
  • Maximum engine power: 20 W
  • Motor current consumption: 1.7 A max.
  • Duty cycle: 50%
  • Open time: 10 s
  • Color: RAL 1024
  • Protection rating: IP54
  • Operating temperature: -20°C min. +55°C max.
