Came SELD2FDG Surface-mounted key switch with DIN insert 806SL-0060

48,39 EUR including 23.00% VAT
In stock. Ships today!
Product code: #26292
Manufacturer: CAME
  • DIN insert
  • Surface mounting
  • Blue backlight
  • Power: 24V
  • IP44

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

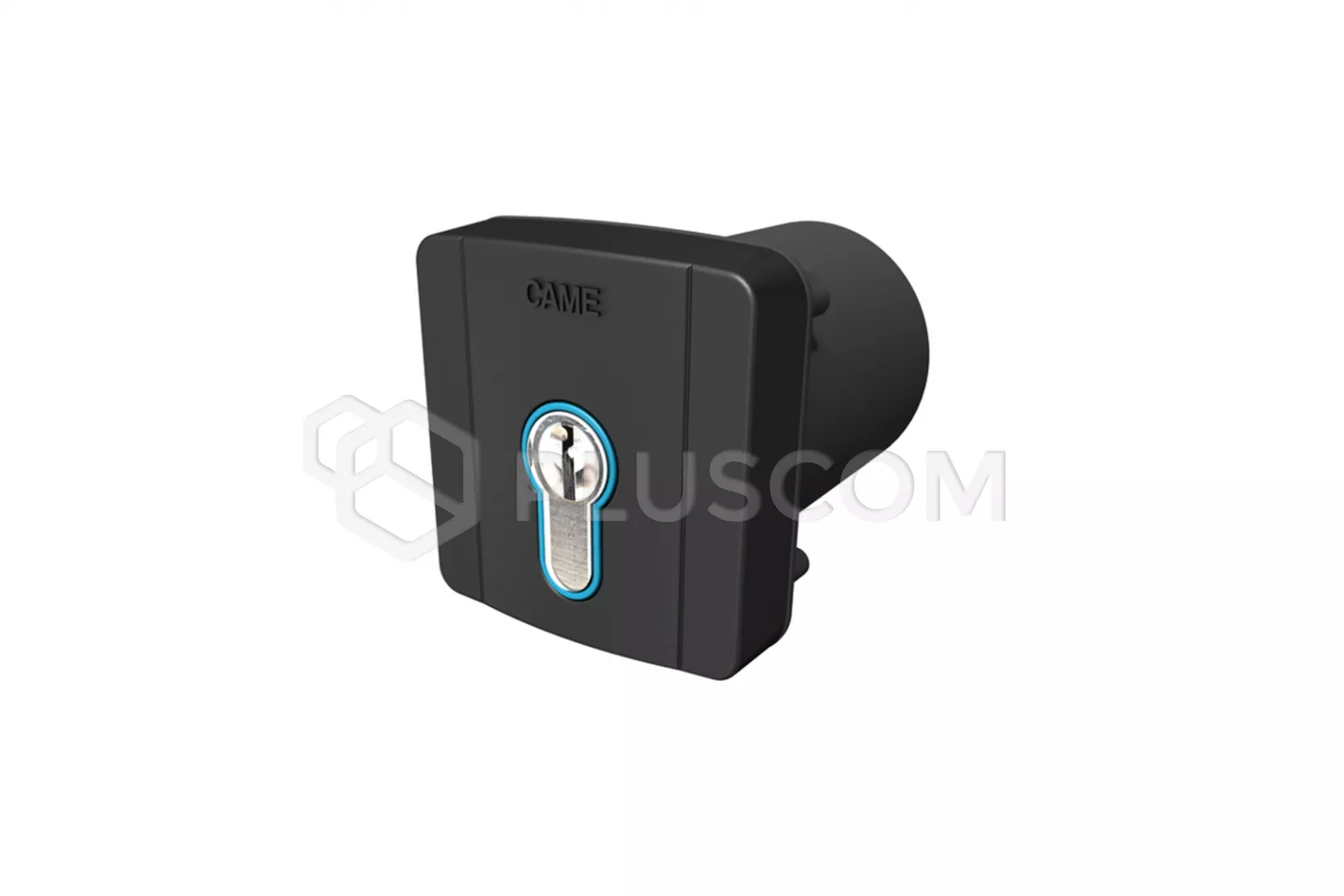

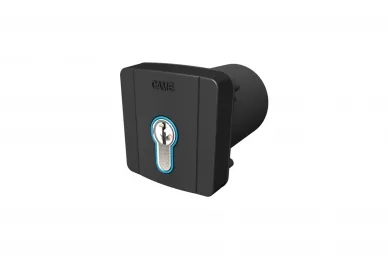

CAME SELD2FDG Surface-mounted key switch 24V with DIN insert


The SELD2FDG key switch with a cylinder with a DIN insert is equipped with a Surface-mounted housing in gray RAL7024 IP44.
The rim of the key cylinder is illuminated in blue (requires a 230V power supply AC). The ignition switch has two NO (normally open) contacts with the output on screw terminals.

The maximum contact load is 3A for 24V.

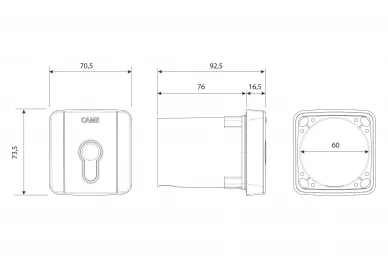

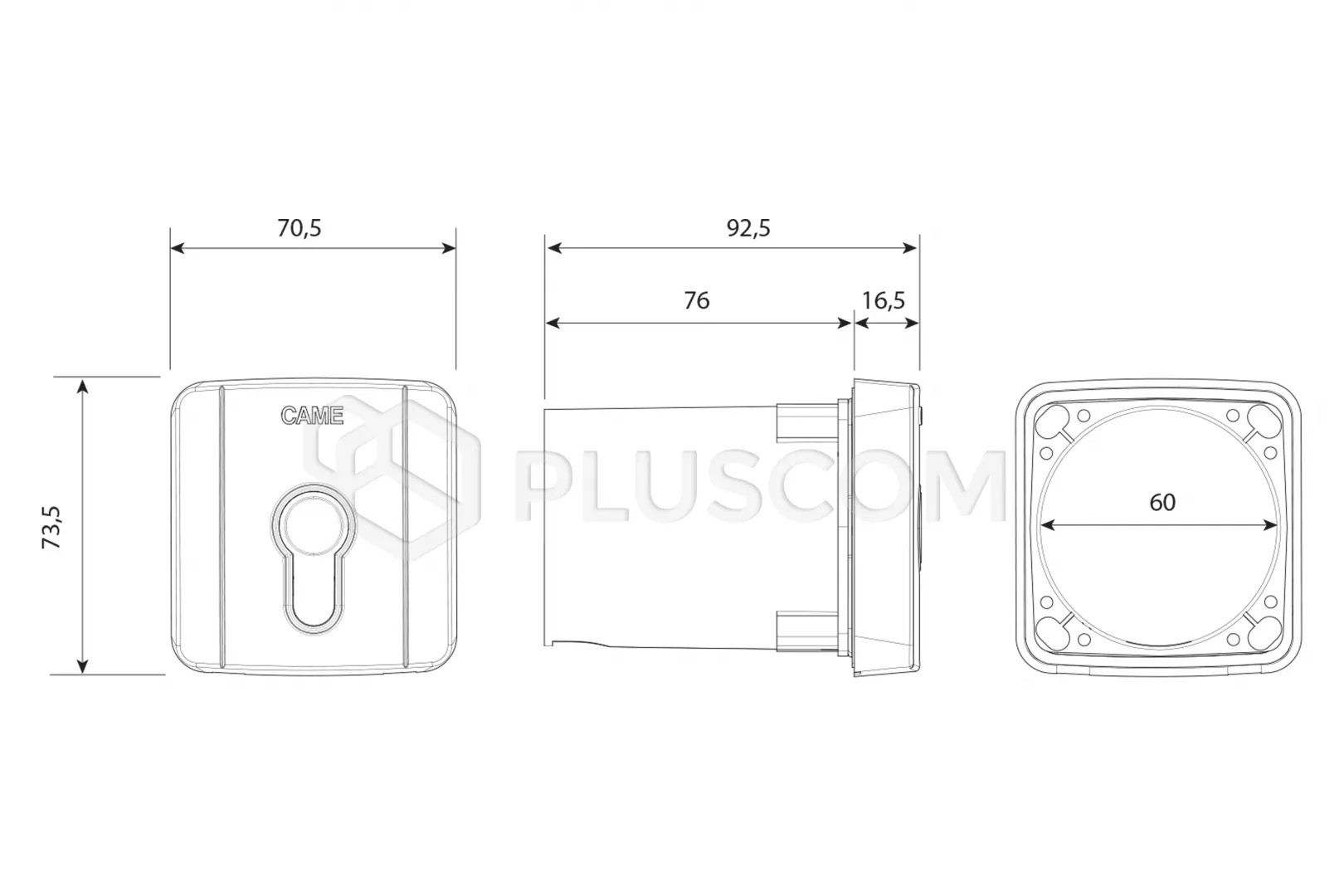

Dimensions:

Dimensions:


Technical data:
  • Power supply: 24V AC-DC
  • Power consumption: 0.3 W
  • Max. contact load 24V: 3A
  • Current consumption: 12 mA
  • Temperature: -20 ° C to + 55 ° C
  • Degree of protection (IP): 44
  • Dimensions: 73.5x70.5x64mm

Download
Manual 0.65 MB
