Came SELD1FDG Surface mounted key switch with DIN insert 24V

54,49 EUR including 23.00% VAT
Product code: #26291
Manufacturer: CAME
  • DIN insert
  • For surface mounting
  • Blue backlight
  • Power: 24V
  • IP44

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

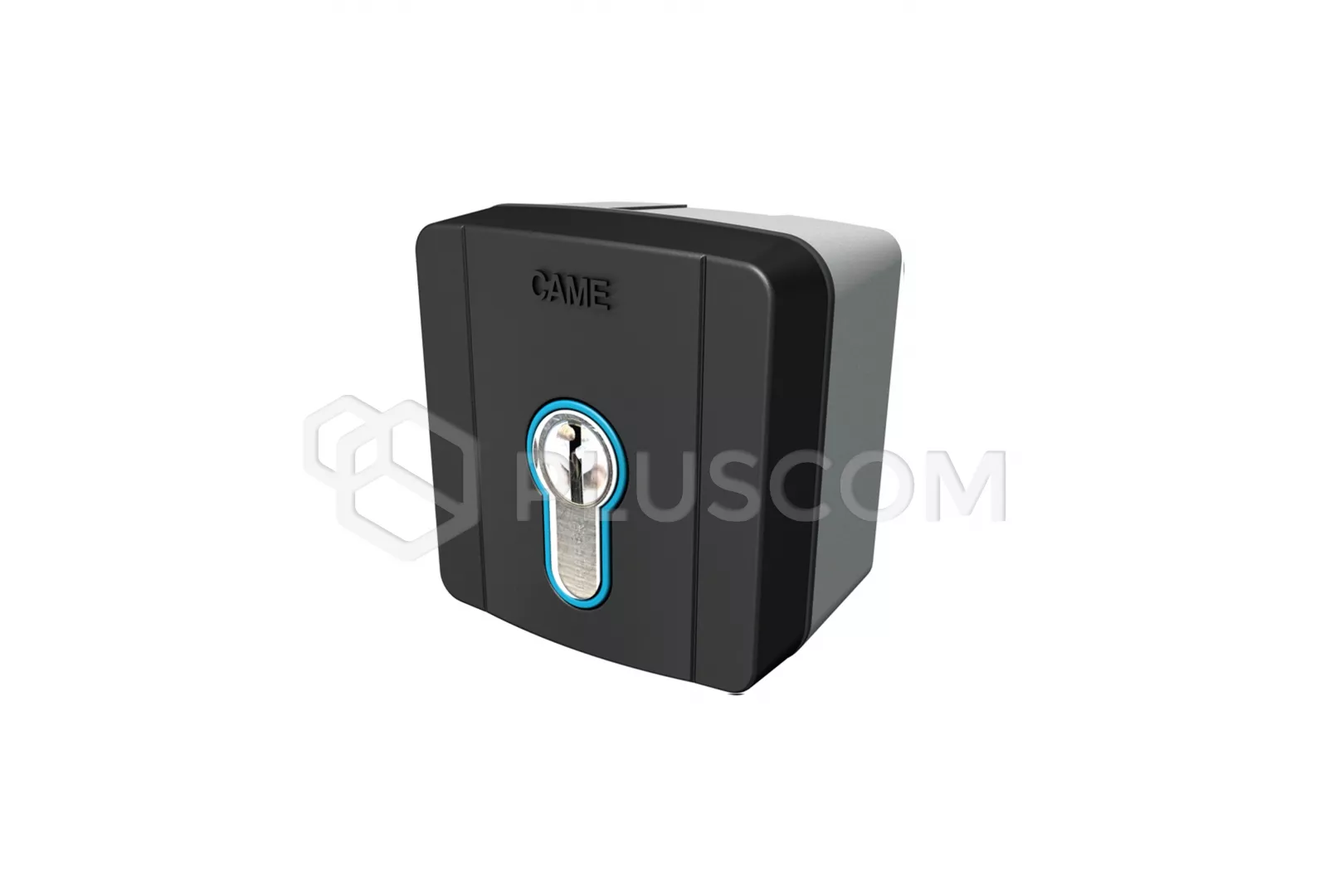

CAME SELD1FDG Surface mounted switch with DIN insert 24V


The CSELD1FDG key switch with a cylinder with a DIN insert is equipped with a Surface-mounted housing in gray RAL7024 IP44.
The rim of the key cylinder is illuminated in blue (requires a 24V power supply AC / DC). The ignition switch has two NO (normally open) contacts with the output on screw terminals.

The maximum contact load is 3A for 24V.

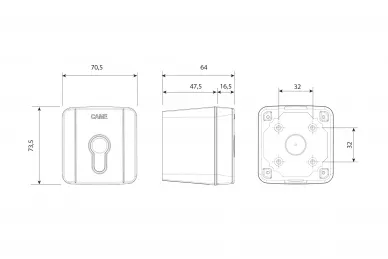

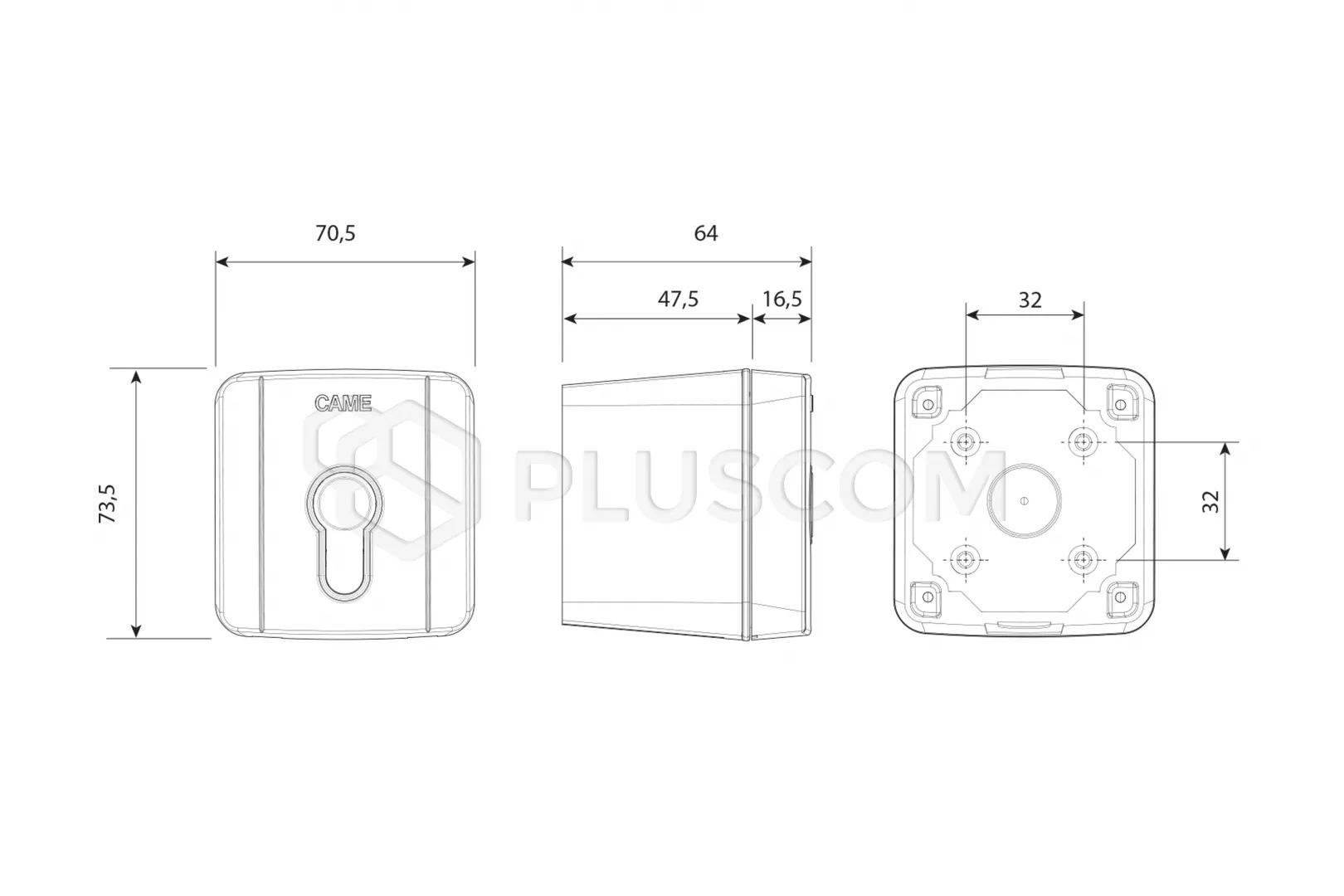

Dimensions:

Dimensions:


Technical data:
  • Power supply: 24V AC-DC
  • Power consumption: 0.3 W
  • Max. contact load 24V: 3A
  • Current consumption: 12 mA
  • Temperature: -20 ° C to + 55 ° C
  • Degree of protection (IP): 44
  • Dimensions: 73.5x70.5x64mm

Download
Manual 0.65 MB
