Came SELD1FAG Surface mounted key switch with DIN insert 230V

52,72 EUR including 19.00% VAT
Product code: #26293
Manufacturer: CAME
  • DIN insert
  • For surface mounting
  • Power: 230V
  • IP44

Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

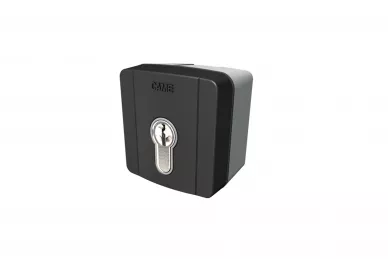

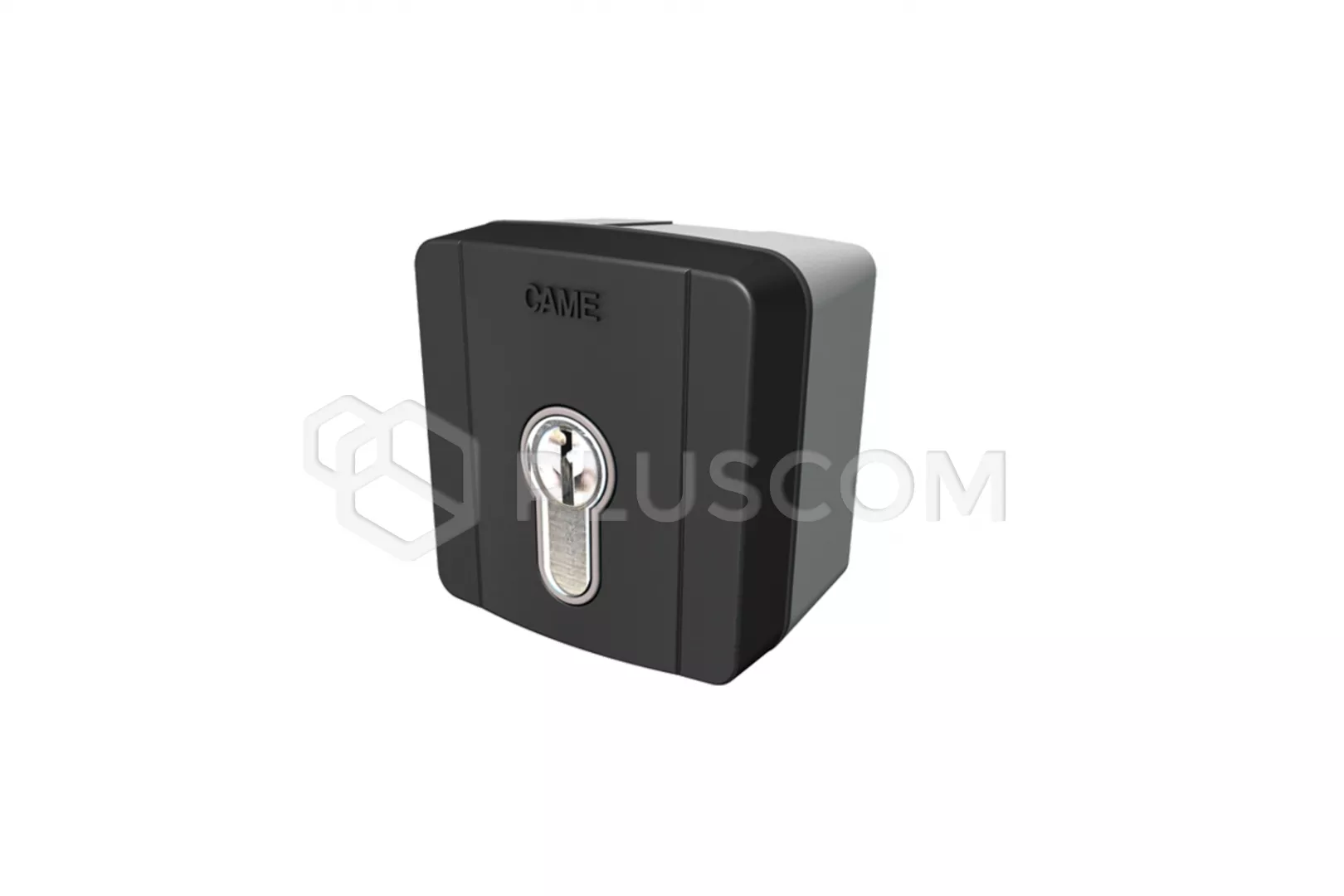

CAME SELD1FAG Surface mounted switch with DIN 230V insert


The SELD1FAG key switch with a cylinder with a DIN insert is equipped with a Surface-mounted housing in gray RAL7024 IP44.

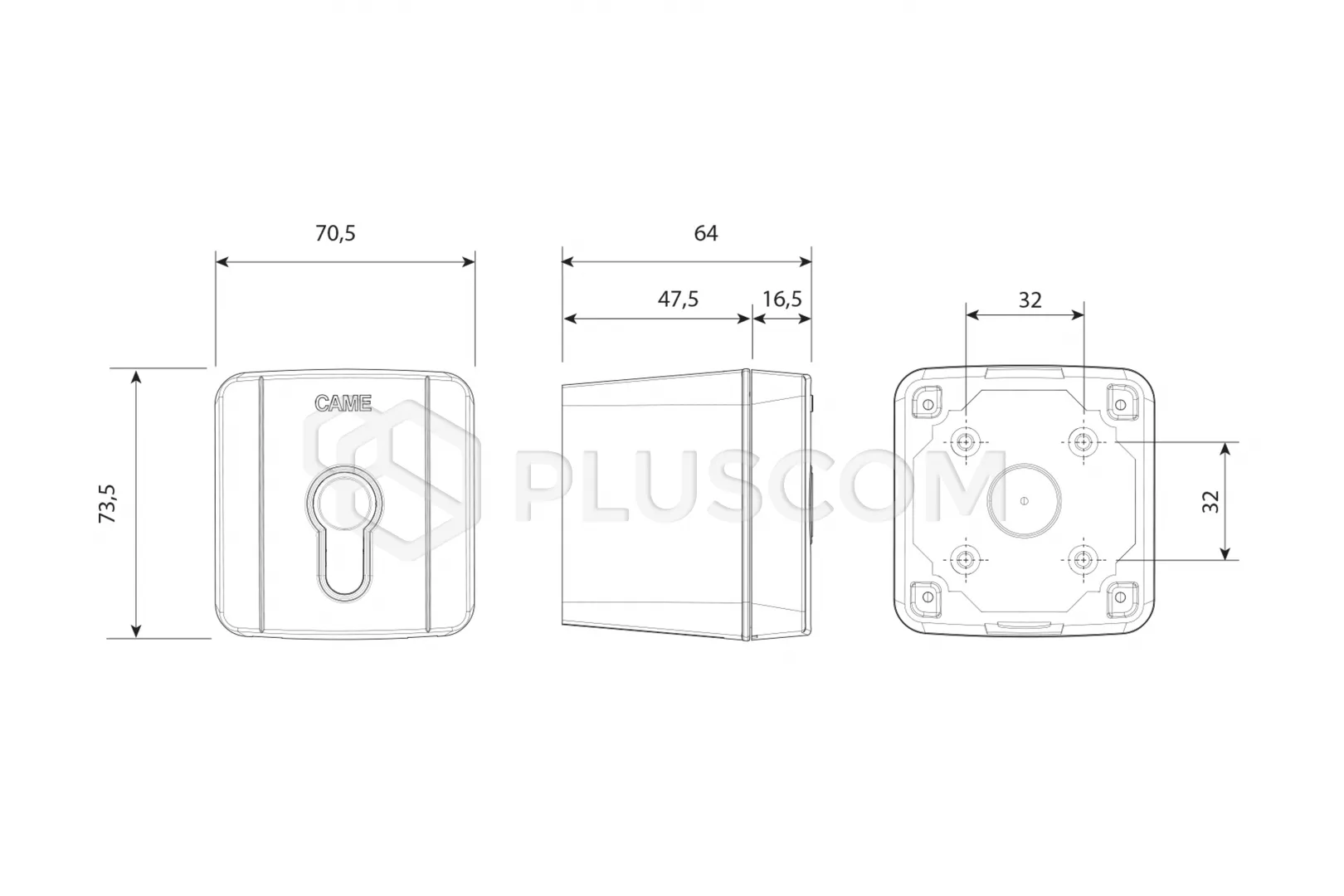

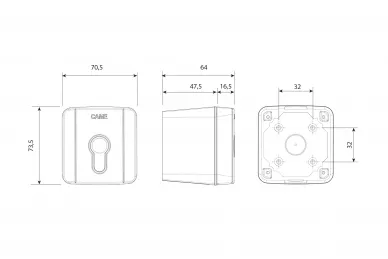

Dimensions:

Dimensions:


Technical data:
  • Power supply: 230V AC
  • Rated current: 0.8A
  • Temperature: -20 ° C to + 55 ° C
  • Degree of protection (IP): 44
  • Dimensions: 73.5x70.5x64mm

Download
Manual 0.65 MB
