Came SELC2FDG Flush mounted switch with cylinder lock 24V

38,92 EUR including 23.00% VAT
Product code: #26296
Manufacturer: CAME
  • Cylinder lock
  • For flush mounting
  • Blue backlight
  • Power: 24V
  • IP44

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

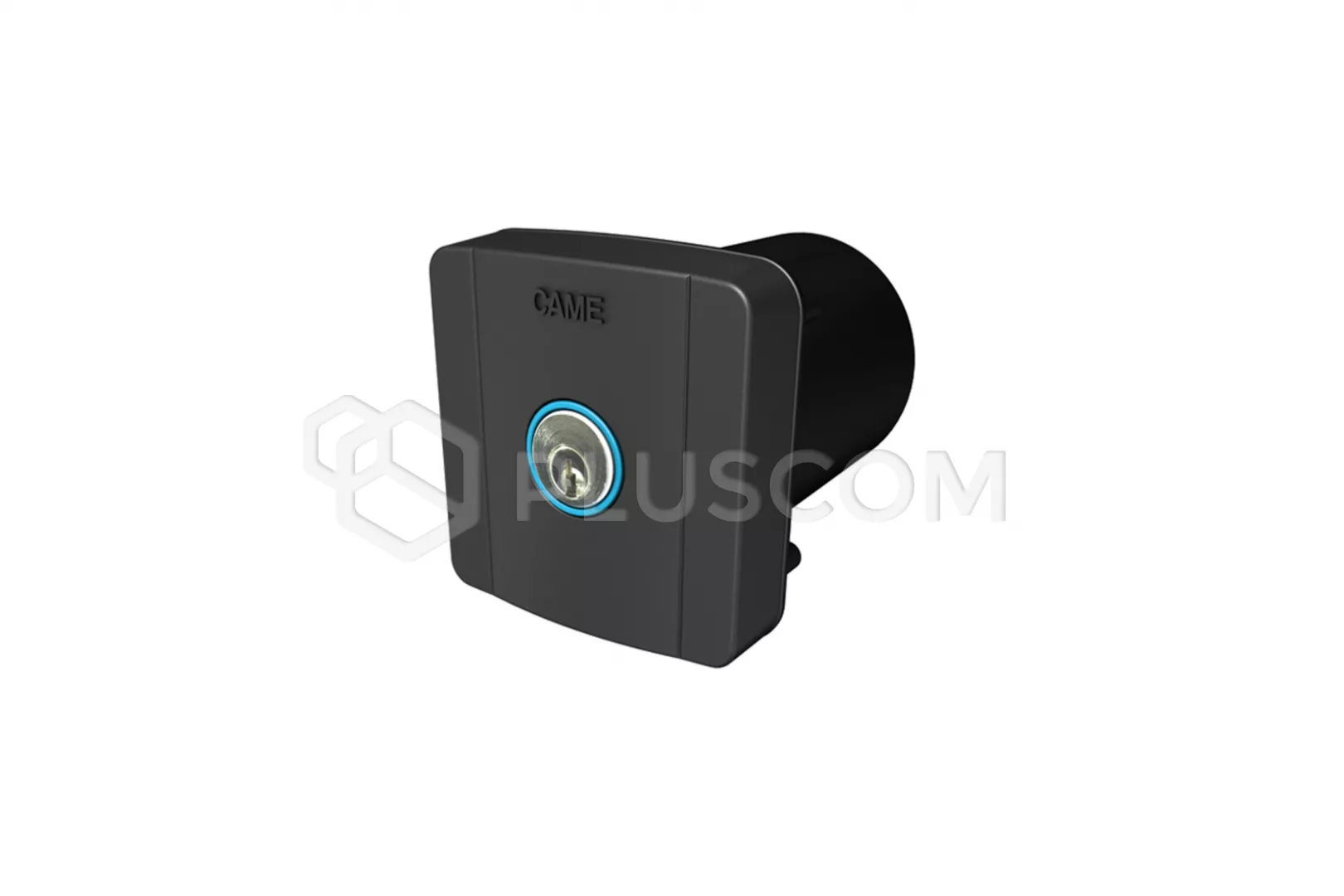

CAME SELC2FDG Flush mounted switch with cylinder lock 24V


SELC2FDG key switch with cylindrical lock, equipped with flush-mounted housing in gray RAL7024 IP44.
The rim of the lock is highlighted in blue (requires a 24V power supply AC / DC). The ignition switch has two NO (normally open) contacts with the output on screw terminals.

The maximum contact load is 3A for 24V.

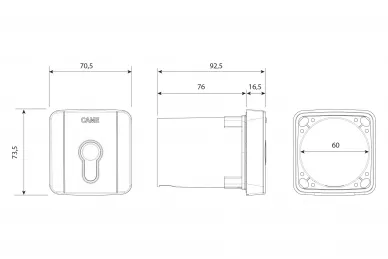

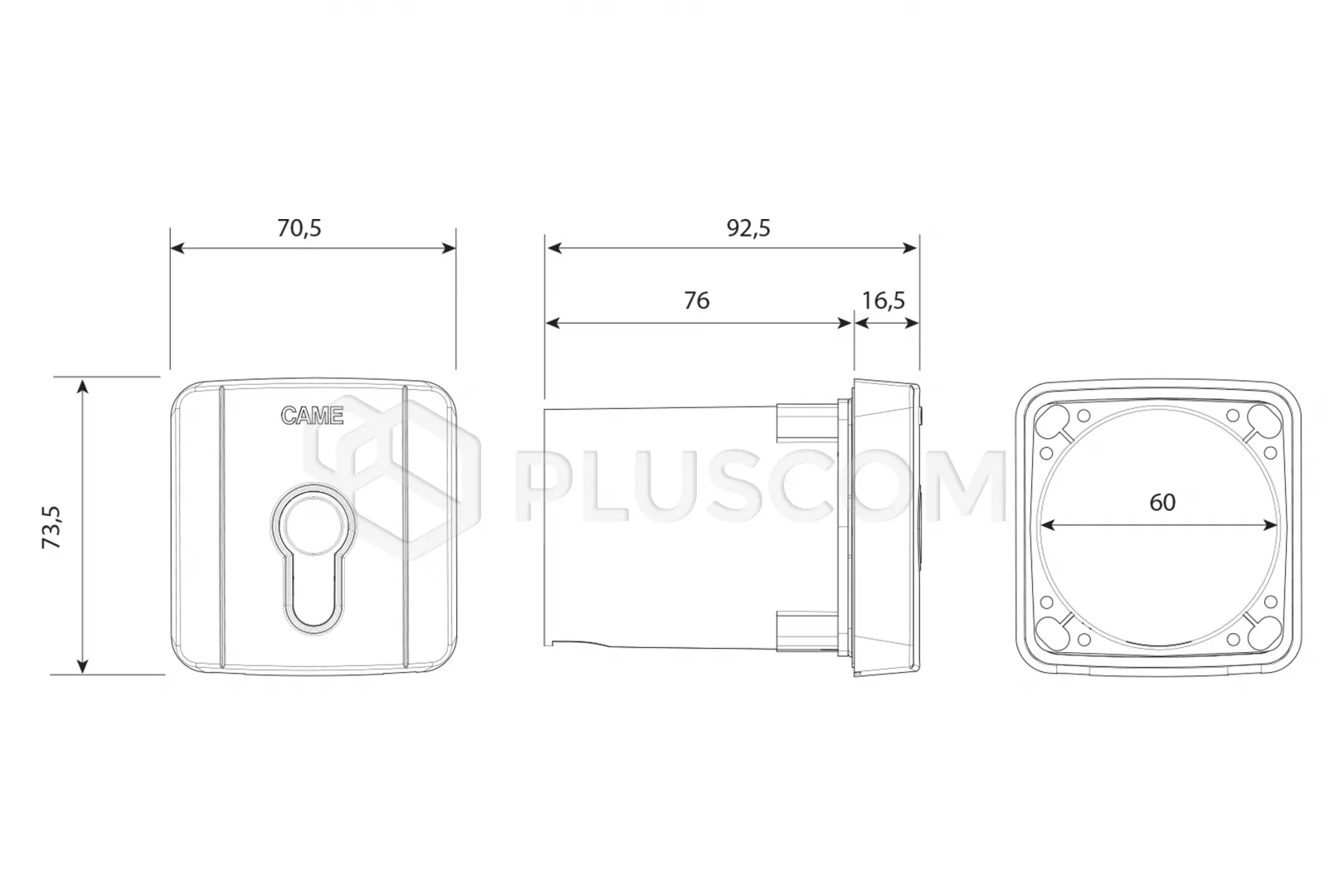

Dimensions:

Dimensions:


Technical data:
  • Power supply: 24V AC-DC
  • Power consumption: 0.3 W
  • Max. contact load 24V: 3A
  • Current consumption: 12 mA
  • Temperature: -20 ° C to + 55 ° C
  • Degree of protection (IP): 44
  • Dimensions: 73.5x70.5x64mm

Download
Manual 0.57 MB
