Came SELC1FDG Surface mounted switch with cylinder lock 24V

43,59 EUR including 23.00% VAT
Product code: #26295
Manufacturer: CAME
  • Cylinder lock
  • For surface mounting
  • Blue backlight
  • Power: 24V
  • IP44

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

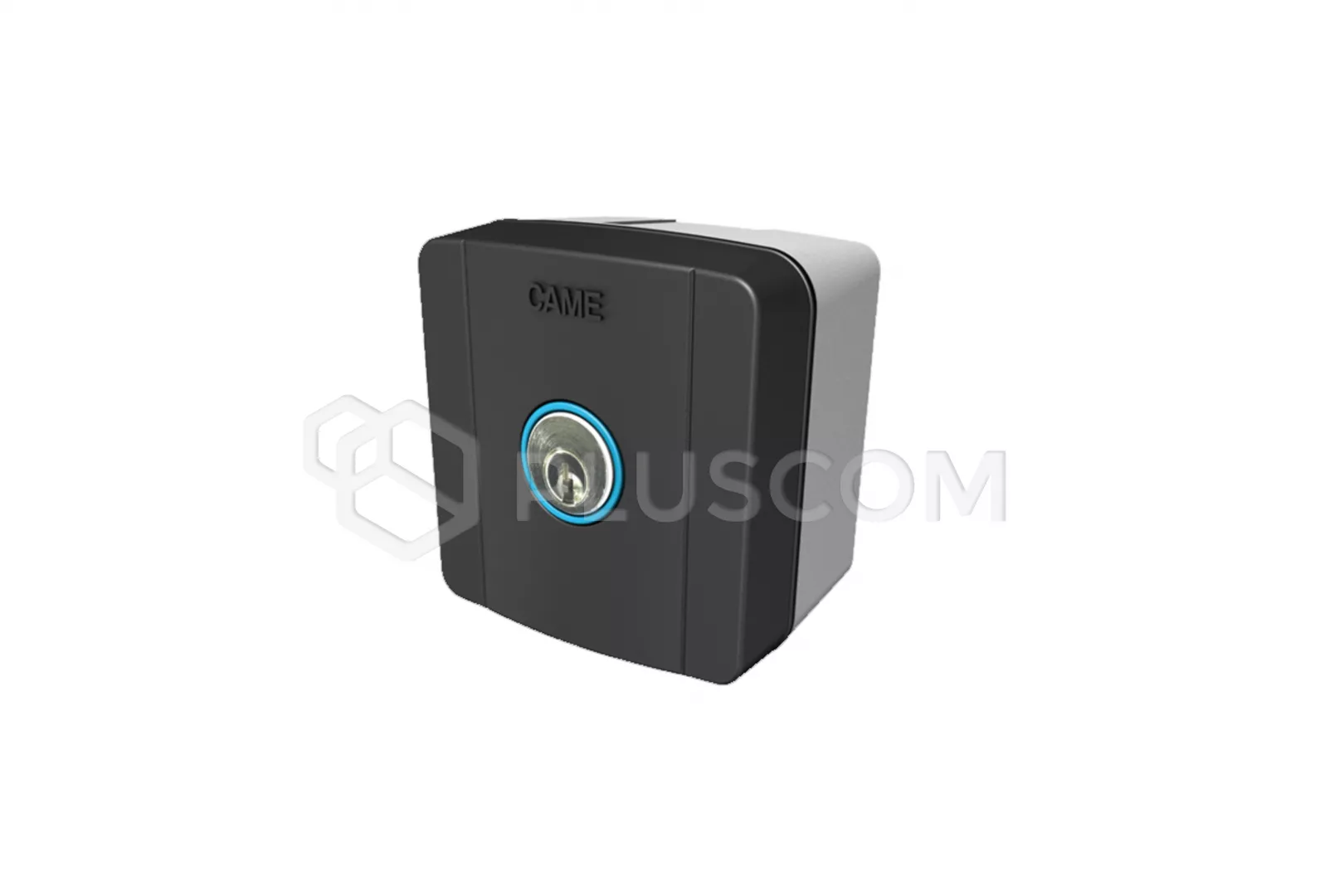

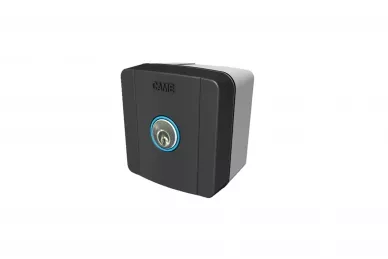

CAME SELC1FDG Surface mounted switch with cylinder lock 24V


SELC1FDG key switch with cylindrical lock, equipped with Surface-mounted housing in gray RAL7024 IP44.
The rim of the lock is highlighted in blue (requires a 24V power supply AC / DC). The ignition switch has two NO (normally open) contacts with the output on screw terminals.

The maximum contact load is 3A for 24V.

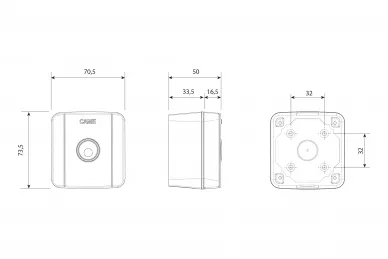

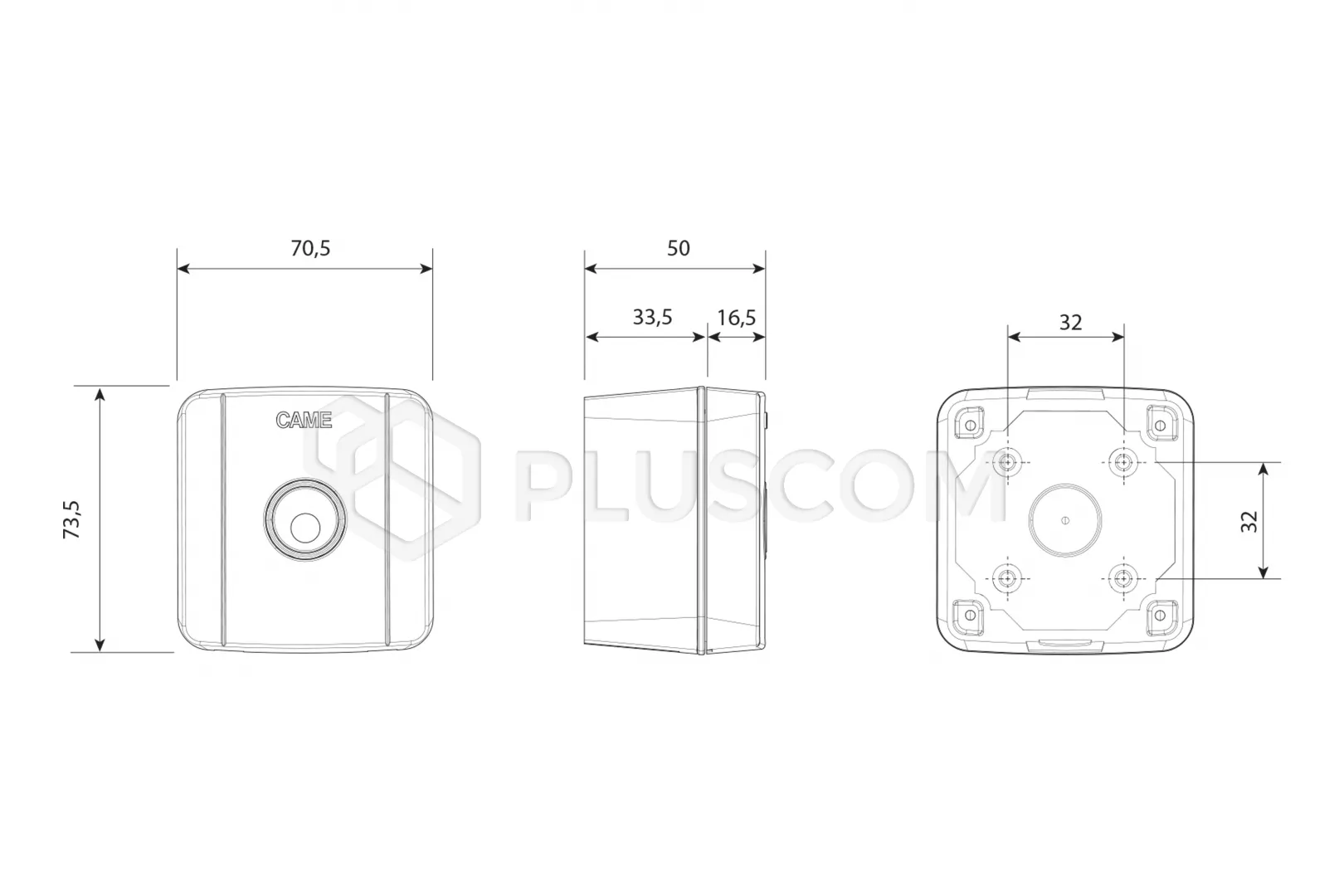

Dimensions:

Dimensions:


Technical data:
  • Power supply: 24V AC-DC
  • Power consumption: 0.3 W
  • Max. contact load 24V: 3A
  • Current consumption: 12 mA
  • Temperature: -20 ° C to + 55 ° C
  • Degree of protection (IP): 44
  • Dimensions: 73.5x70.5x64mm
