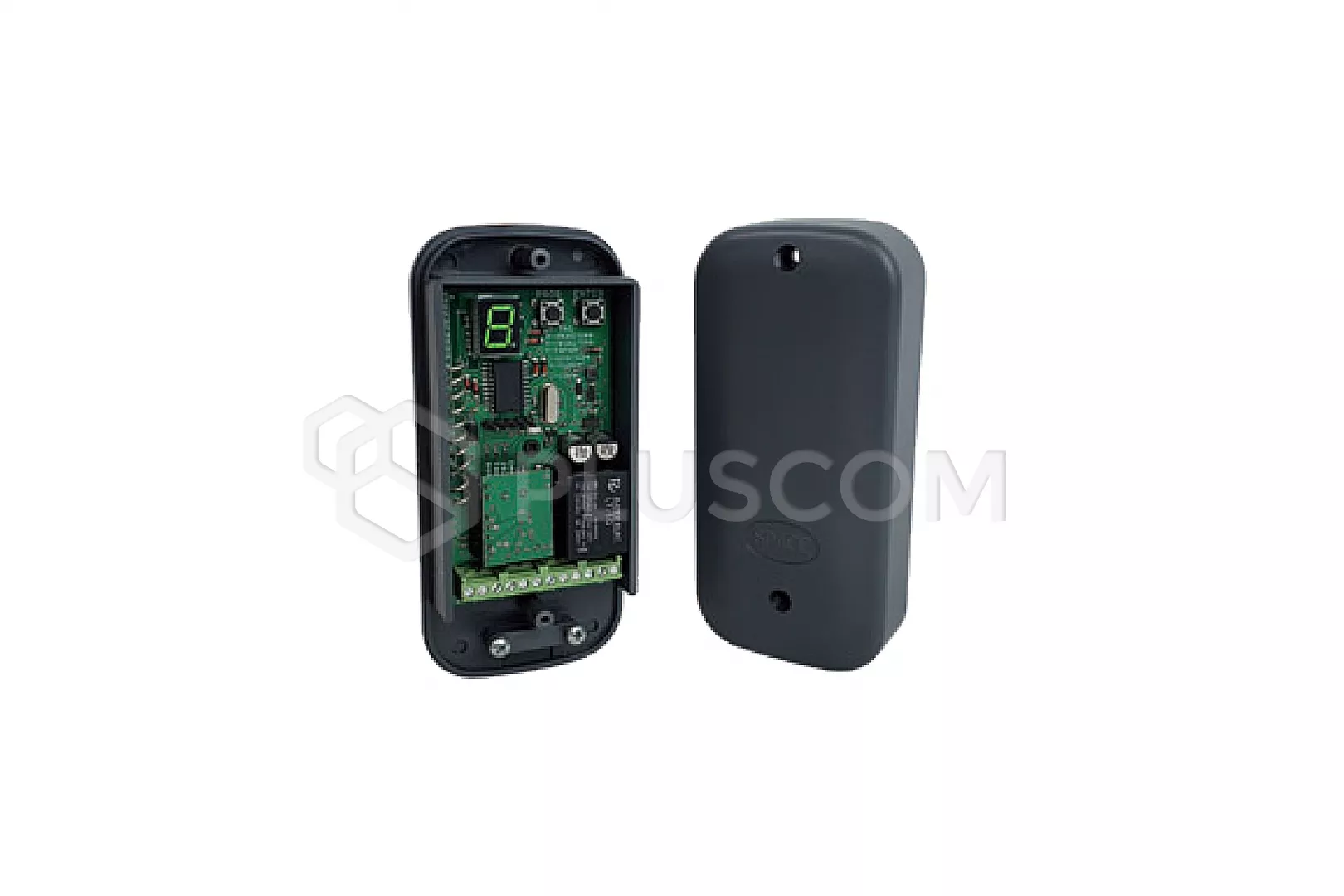

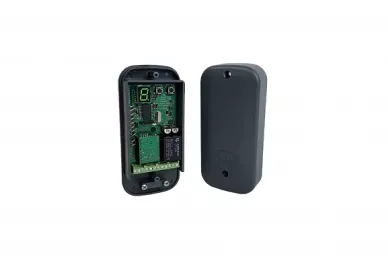

Came RE-868 HF EASY PASS active TAG reader

77,85 EUR including 23.00% VAT
Product code: #27058
Manufacturer: CAME
  • Power supply: 8-24 V A.C./D.C.
  • Range: 2-15 m
  • Memory in standalone mode: max. 60 TAGs
  • Communication protocol: WIEGAND 26/34
  • Integrated antenna
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came SP4HF 4-channel remote control with built-in active TAG Came TAG868SP Active TAG of Easy Pass system Came SP2 2-channel remote control

CAME RE-868HF EASY PASS active tag reader


The RE-868HF radio receiver has been designed to work with active devices TAGs of the SPACE series. It decodes the encrypted transmission from the active TAG, when this will be within the receiver's operating range.

The device can work as a TAG reader in access control systems, or as a standalone device.
As a reader detects the signal from the active TAG and after confirming the correctness of the transmission, sends the TAG number via the Wiegand protocol to access control system. It can work with the Wiegand 26 or Wiegand 34 protocol.
As a standalone device receiver after signal detection and validation correctness of transmission, compares the TAG number with the numbers saved in the memory receiver. If a given TAG is in memory, it is launched the relay for a pre-set time. Transmission takes place at the same time TAG number with the Wiegand protocol. Wiegand transmission always occurs after the receiver confirms the correct transmission of the TAG, regardless of whether it is a given one TAG is in memory or not.

Each TAG has its own unique number which is the same as the number factory remote SP2 / 4HF in which the TAG is mounted. The TAG is powered separate 3V lithium battery type CR1632. The battery life is approx. 2 years.

The active TAG system works in the 868MHz frequency band. Thanks to both systems do not interfere.

TECHNICAL DATA
  • Power supply: 8-24V DC AC
  • Power consumption: 0.4W max.
  • Antenna: integrated
  • Receiver sensitivity: adjustable from -75dBm to -95dBm
  • Relay contacts (resistive load): 3A 28V DC, 3A 220V AC
  • Contact configuration: SPDT (Single-Pole-Double-Throw) single changeover contact
  • Block input: active low (0 zero)
  • Low Battery output: open drain, 40V DC max. 1A DC max.
  • WIEGAND D0, D1, GND output: Wiegand 26 or 34
  • Reader lock time (dead time): adjustable 0-60sec.
  • Relay ON time: adjustable 0-30sec.
  • TAG memory capacity: 60
  • Reader lock function, for TAGs in permanent range: max 6 TAGs
  • Working temperature: -20 ° C - + 50 ° C
