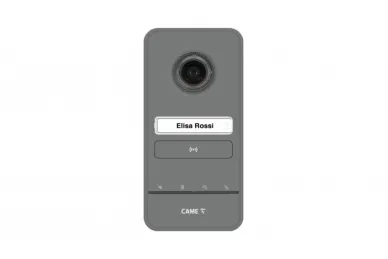

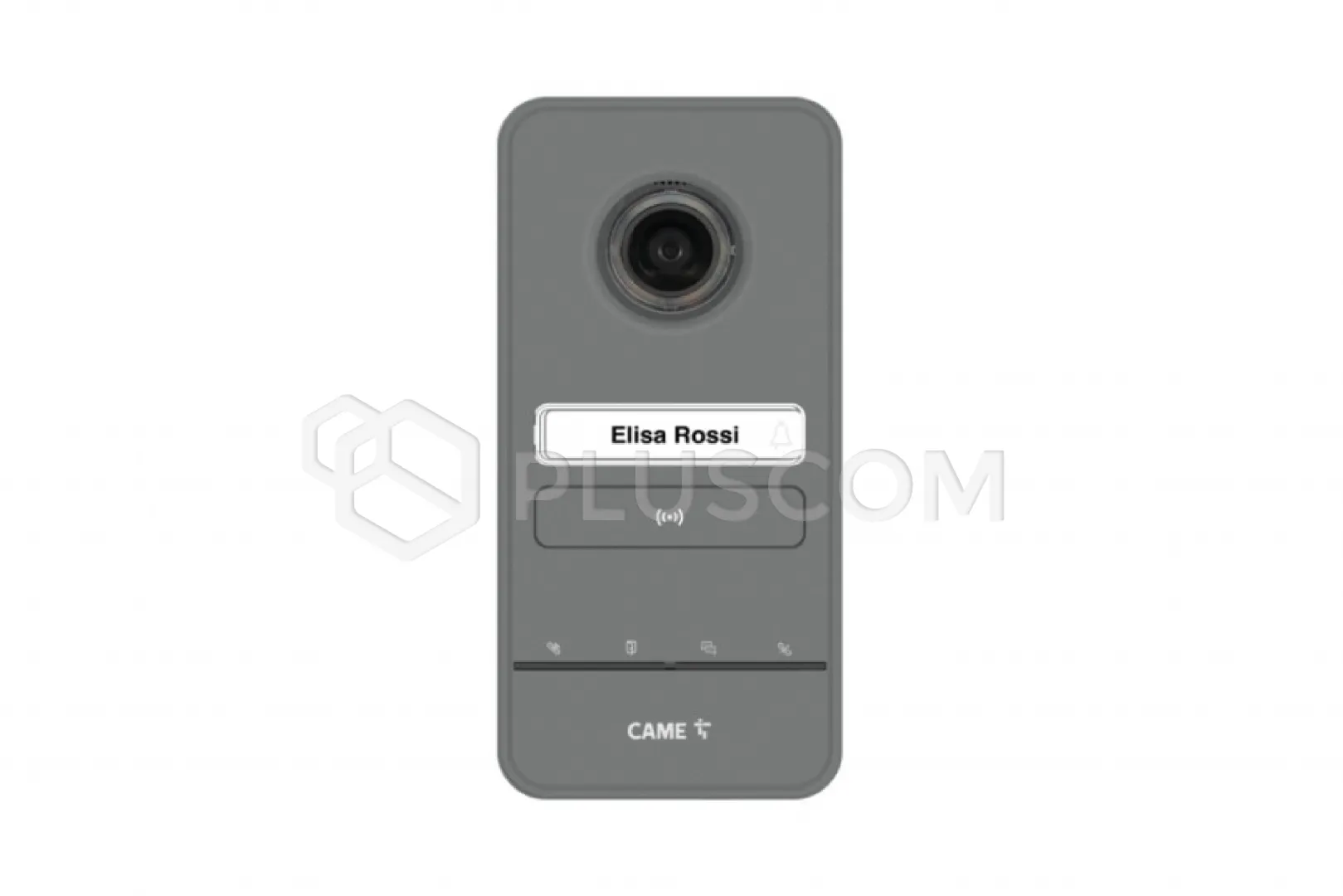

Came LHS V/O1 Video Input Panel (840AA-0040)

451,48 EUR including 23.00% VAT
Product code: #30812
Manufacturer: CAME
  • PAL camera with 728 x 560 pixel resolution, wide eye optics
  • Intercom call handling
  • Relay output for controlling the gate automatic, voltage output for the electric lock
  • Mechanical resistance IK09
  • IP54 water and dust protection
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came LHS PD Double button (6 pcs) (840XA-0020) Came LHS CI Flush mount frame (840XC-0330) Came LHS PS Single button (6 pcs.) (840XA-0010) Came LSI Flush-mounted box (60090640) Came LHS TS Single button cover (6 pcs.) (840XA-0030) Came LHS TP Rain Cover with Visor (840XC-0340)

CAME LHS V/O1 Video Entry Panel (840AA-0040)


The LHS series external panel is an ideal solution for single-family buildings and small multi-family housing estates. The construction made of an alloy of zinc and aluminum (ZnAl) guarantees excellent resistance to impacts and weather conditions.

The LHS series panels provide a very high level of vandal resistance (IK09) and resistance to water and dust penetration (IP54). The LHS series includes an audio model and two video models. The LHS video is available in the PLUS version equipped with wireless Bluetooth 5.0 technology working with a dedicated application for smartphones as well as an RFID reader.

FEATURES:

  • Monolithic external panel made of ZnAL casting
  • Programmed manually or from the CAME SetUp application (Adndroid / iOS) via the CAME KEY interface
  • In the VIDEO version, a PAL camera with a resolution of 728 x 560 pixels
  • In the VIDEO version, the optics "wide eye" with a horizontal viewing angle of 98° and a vertical viewing angle of 72°
  • Expandable to 4 call buttons
  • Intercom call support
  • Call buttons with white LED backlight
  • Voltage output for electric strike
  • Relay output for gate automation
  • Mechanical resistance IK09
  • Water and dust protection class IP54
  • Dimensions in flush mounting: 135 x 243 x 11 mm
  • Dimensions in surface mounting: 97 x 205 x 23 mm
