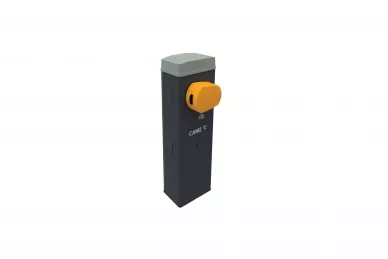

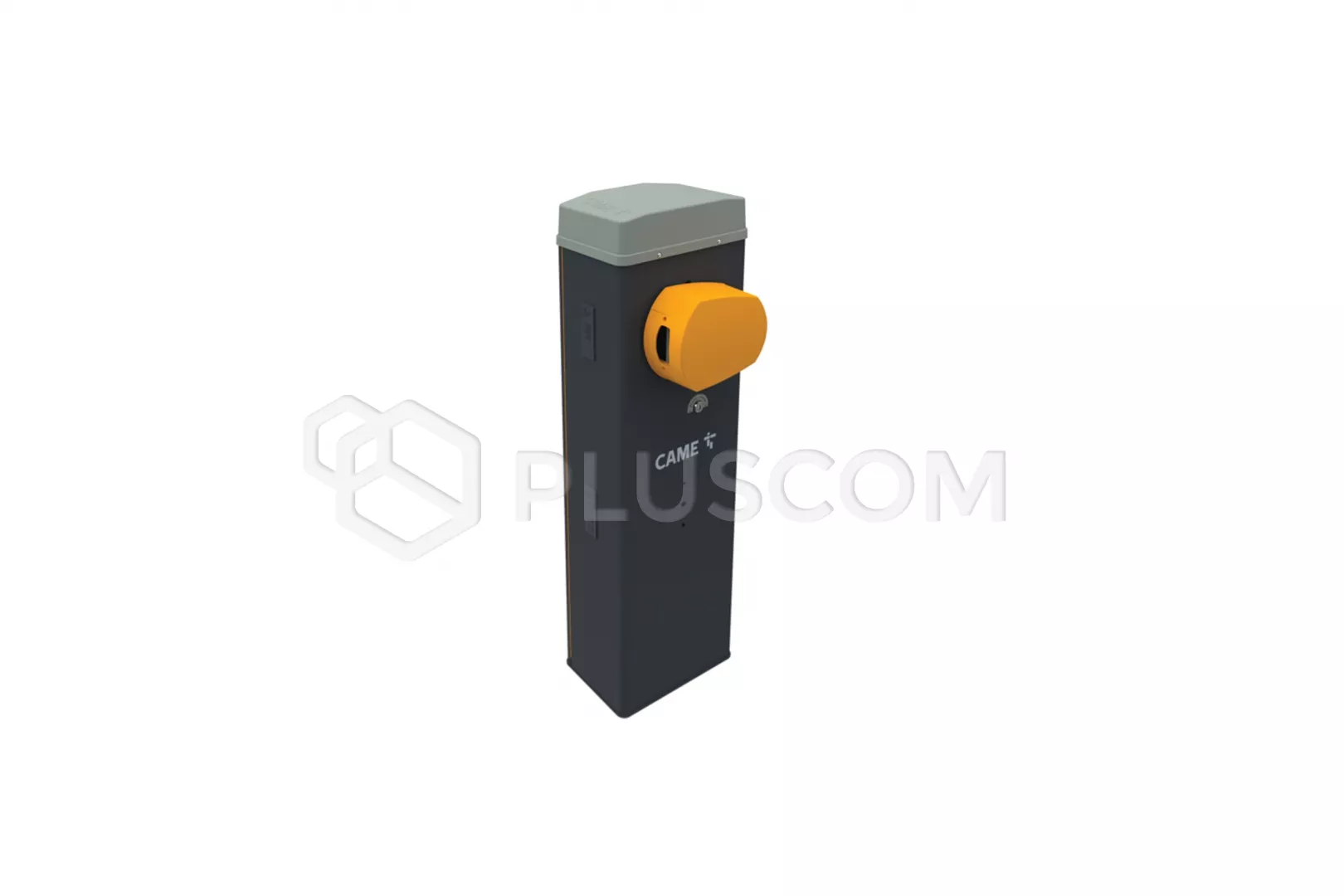

CAME GLS40AGS BARRIER CENTRAL UNIT FOR ARM UP TO 4m
GLS40AGS electromechanical barrier from the LS4 series with a built-in control
panel and a balancing spring, perfect for controlling access to facilities
industrial and high-traffic crossings. It is irreplaceable on crossings where
fast and reliable operation is required. Solid the design makes the barrier
suitable for intensive work. Maximal opening/closing speed is 2 to 4 seconds.
The control unit is located directly under the housing cover. Thanks Therefore,
all configuration and maintenance steps can be performed in comfortable
standing position, with the housing closed, in complete conditions safety.
RELIABLE
Thanks to the 24 V DC motor with ENCODER and the ADVANCED
system SPEED CONTROL for full control of the arm's speed.
SAFE
Complies with EN 12453, easily passes tests crashworthy.
ADVANCED ELECTRONICS
Compatible with CAME CONNECT technology allowing
for remote management.
ADVANCED SPEED CONTROL
New gearmotor with a 24 V DC motor equipped with
in the encoder, enables advanced control of the arm speed. Thanks to this one
innovative function, the movement of the arm is smooth and constant both during
opening and closing, which helps prevent the risk of damage integrity of the
arm's mechanical system.
The control module constantly analyzes the forces that act on the arm and
adapts speed based on detected parameters to ensure durability and reliability
in all climatic conditions. Compatible with CAME technology CONNECT allowing
for remote management.
FEATURES:
- new gear motor controlled by an encoder, ensuring smooth operation
- balancing system with one type of spring
- two types of arms to choose from: rectangular G0401 and round G0402
- possibility to install LED lighting under protective rubbers (G0401)
- emergency power supply with batteries mounted in the barrier housing
- CAME KEY slot
- possibility of direct connection of CAME readers and keyboards
- protective inputs supporting 8k2 resistive strips
- output for a lamp operating in semaphore mode (KLT lamp)
In the event of a power outage or in any emergency situation in which it
occurs problem with electricity supply, GARD LS4 is able to operate completely
safely thanks auxiliary battery power system.
During normal operation with mains power the system keeps the batteries fully
charged, to ensure maximum reliability in the event of an emergency an
emergency situation occurs.
TECHNICAL DATA
- Power supply: 230V 50/60 Hz
- Motor power supply: 24V DC
- Maximum current consumption: 0.8 A
- Power consumption in standby mode: 7W
- Power: 190W
- Torque: 140 Nm
- Opening time (90°): 2~4s
- Cycles/hour: 300
- Cycles/day: 5400
- Operating temperature: -20°C ~ 55°C
- Average life: 1,500,000
- Insulation class: I
- Tightness class: IP54
- Dimensions: 326x340x1140mm
- Weight: 56kg
