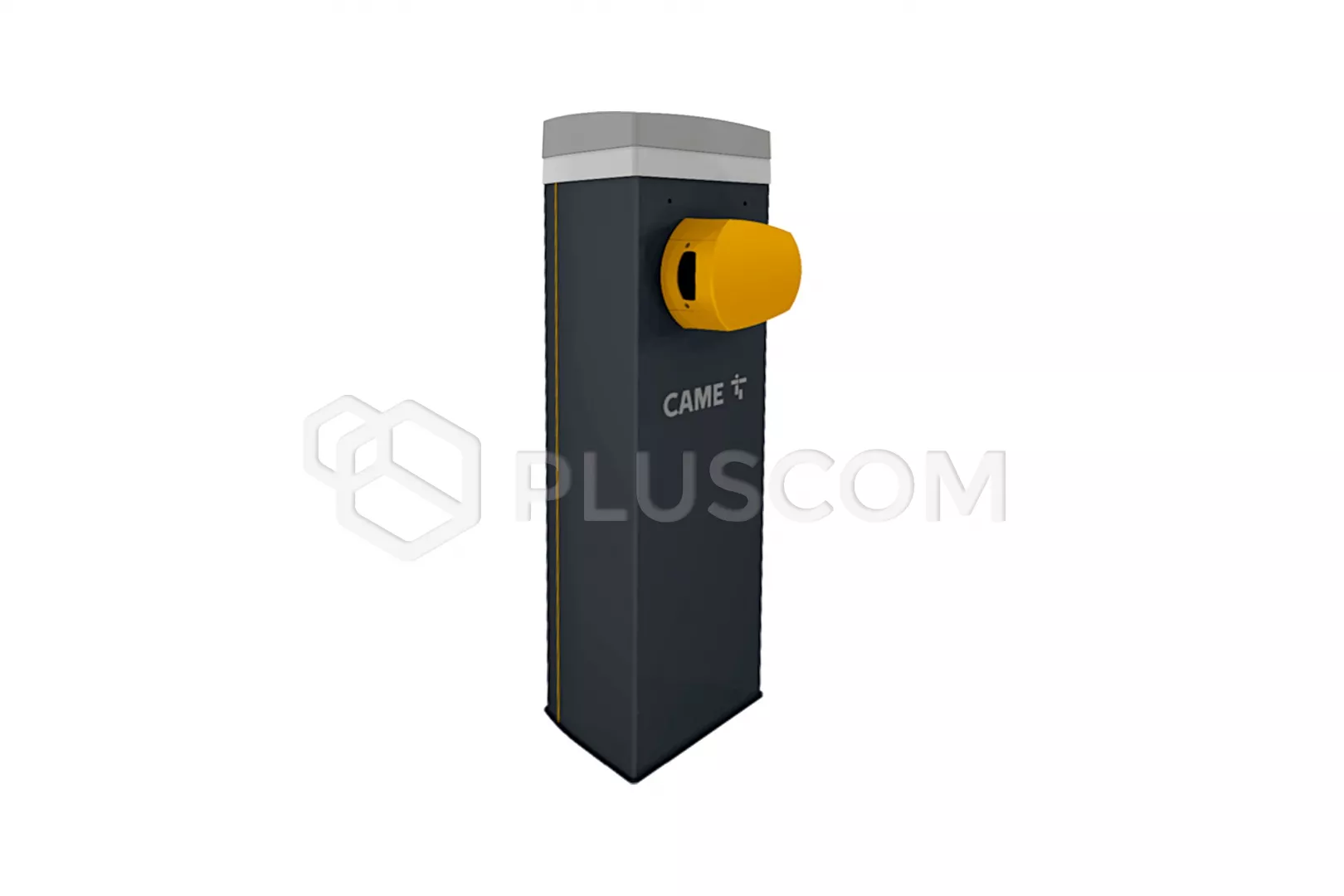

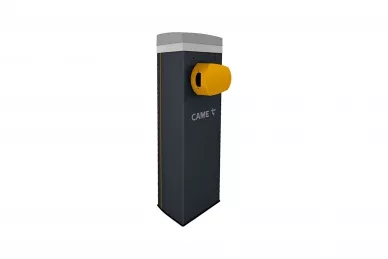

Came GARD PX MGP Electromechanical barrier up to 3.8m

BLADE CAME GARD PX MGP 803BB-0100 UNIT CENTRAL FOR ARM UP TO 3.8m

The GARD PX MGP barrier in an aluminum housing, complete with the ZLB30 control card, 100/240 V power supply, SMA loop, I.O./RS485 card to direct connection to PARKARE systems. Dedicated is parking systems and places with high traffic. Combined brushless motor with its unobtrusive gearbox, it provides an extremely durable solution (MCBF = 10 million cycles!), Quiet operation and high efficiency.
GARD PX MGP performs the maneuver thanks to the brushless technology opening in just 1.2s with the 3m arm.

The assembly of the barrier does not require any special preparations. It has a technological prepared openings in the housing for the installation of photocells and accessories directly on the barrier structure. A very large number additional accessories allow the GARD barrier to be uniquely adapted to specific installation location.

Gard PX MGP has a built-in control unit located directly below the housing cover. Thanks to this, all stages of setup and maintenance can be carried out in a comfortable standing position with the housing closed.
It is equipped with a graphic display with a full-text menu that guides the installer through a simple procedure available in 7 languages.
The electronic board is equipped with an adapter for ETHERNET connection to integrate the barrier with parking and access control systems. All CAME accessories can be connected directly to the board thanks to the modules R700 / 800. ,

PROPERTIES

• brushless technology
• Built-in ZLB30 control panel with easy access and display
• high performance with continuous cycle
• operational reliability
• 3 safety inputs for photocells and accessories security
• possibility to connect CAME Connect module
• up to 2.5m of arm without spring (3.8m with spring)
• quiet running
• force pair and speed control
• monitoring arm position
• simple manual release system
• wide range of accessories
• Integrated LED lighting in the upper part of the housing (red and green)
• one version of the barrier for installation both right and left hand side
• USB port for software update and data saving

TECHNICAL DATA

• power supply: 100 - 240V 50/60 Hz
• motor power: 36V DC
• power: 270W
• standby power consumption: 3.3W
• torque: 100 Nm
• open time up to 90 °: 1.2-2.4s
• work cycle: intensive work
• isolation class: I
• degree of protection: IP 54
• working temperature: -20 ° C ~ 55 ° C

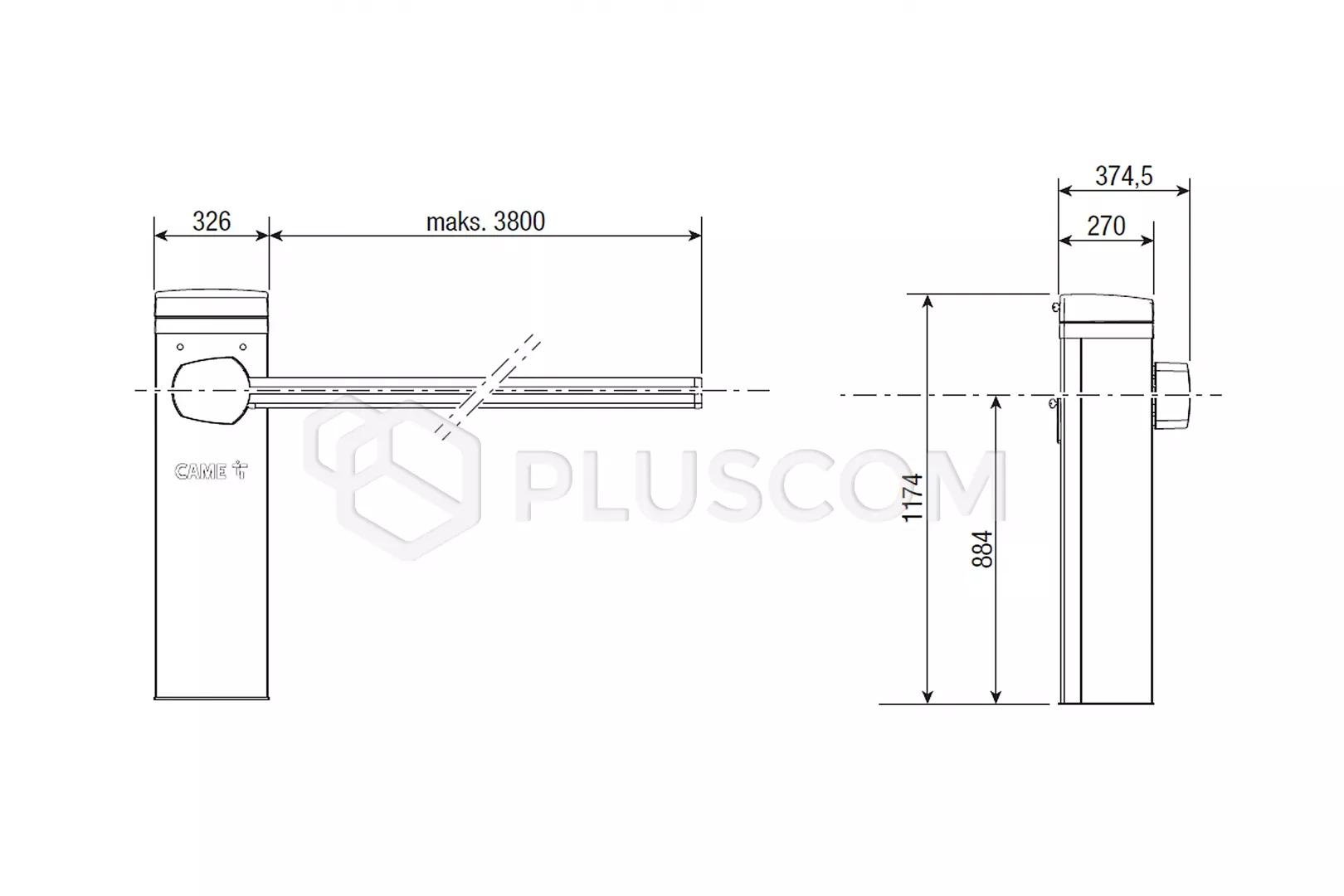

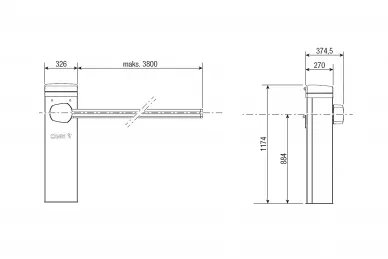

• dimensions: 1174 x x326 x 374.5mm
• weight: 62.5 kg
