Came GARD PX - MCBF 10M CYCLES Set with 3.8m arm

CAME GARD PX - MCBF 10M CYCLES Set with arm 3.8m

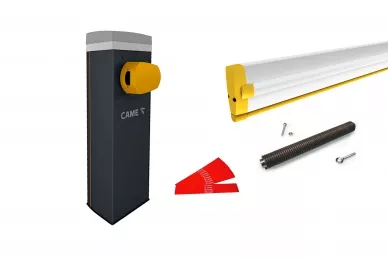

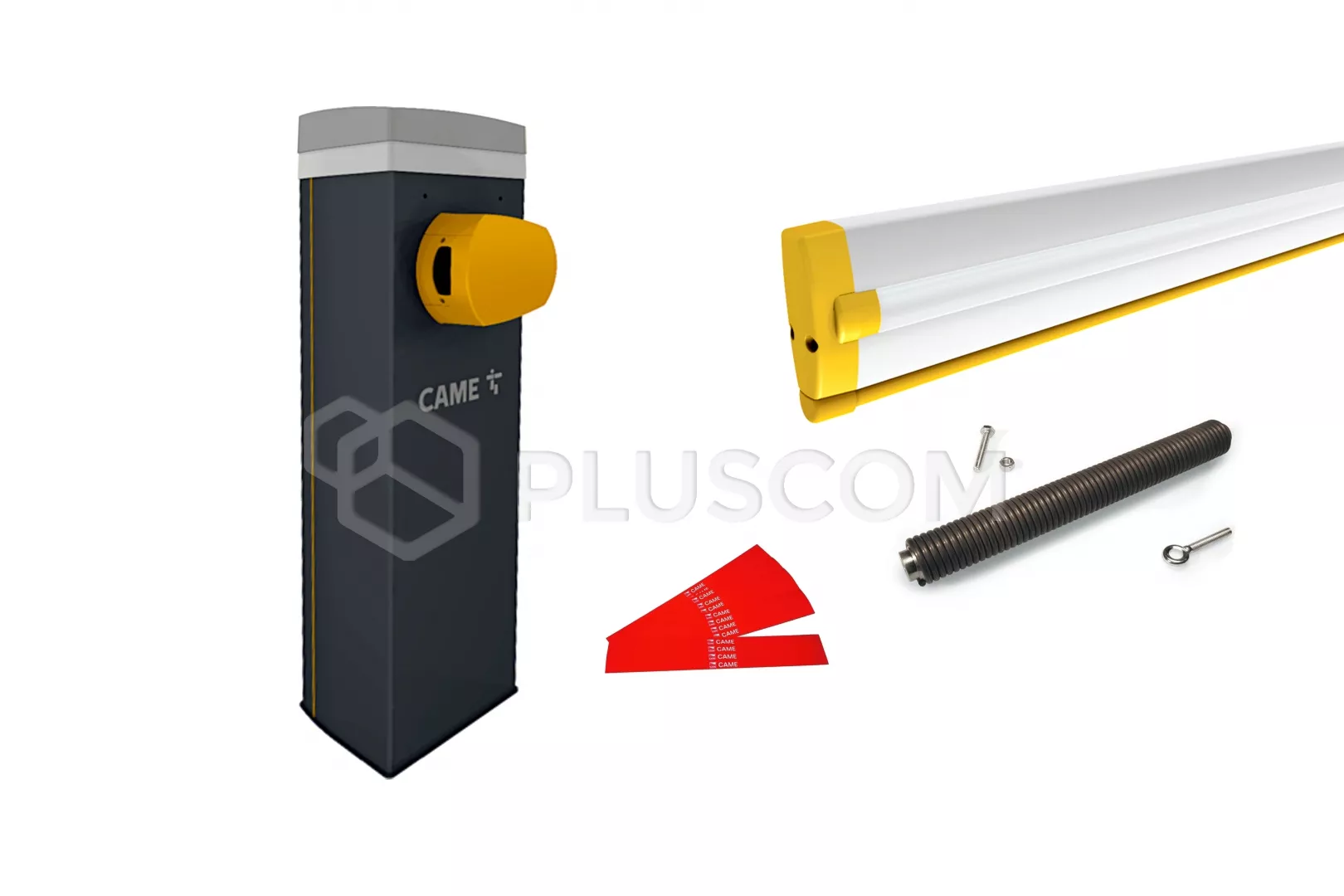

PACKAGE CONTAINS 803BB-0120 - central unit 803XA-0050 - 4050mm semi-oval arm G04060 - balancing spring Ø 50 mm G02809 - set of 20 warning stickers

CAME GARD PX - MCBF 10M CYCLES Set with 3.8m arm

GARD PX MGS barrier in an aluminum housing, complete with a card ZLB30 control unit, 100/240 V power supply, dedicated to parking systems and places with high traffic. Brushless motor combined with the unobtrusive gearbox provides a solution of extreme durability (MCBF = 10 million cycles!), Quiet operation and high efficiency.
GARD PX MGS performs the maneuver thanks to the brushless technology opening in just 1.2s with the 3m arm.
The electronic board is equipped with an adapter for ETHERNET connection to integrate the barrier with parking and access control systems. All CAME accessories can be connected directly to the board thanks to the modules R700 / 800. ,

PROPERTIES

• brushless technology
• Built-in ZLB30 control panel with easy access and display
• high performance with continuous cycle
• operational reliability
• 3 safety inputs for photocells and accessories security
• possibility to connect CAME Connect module
• up to 2.5m of arm without spring (3.8m with spring)
• quiet running
• force pair and speed control
• monitoring arm position
• simple manual release system
• wide range of accessories
• Integrated LED lighting in the upper part of the housing (red and green)
• one version of the barrier for installation both right and left hand side
• USB port for software update and data saving

803XA-0050 semi-oval arm painted white, dimensions 90 x 35 mm, with a cover strip and an impact-resistant rubber profile
Length: 4050 mm.
The arm can be equipped with additional accessories such as warning stickers, curtains and supports (fixed or movable) - they have a very important function shock absorption when stopping the arm.

The set includes a balancing spring G04060 Ø 50 mm (green) and stickers warning G02809 glued to the white arm of the barrier significantly improves arm visibility. They are made of reflective foil.

TECHNICAL DATA

• power supply: 100 - 240V 50/60 Hz
• motor power: 36V DC
• power: 270W
• standby power consumption: 2.5W
• torque: 100 Nm
• open time up to 90 °: 1.2-2.4s
• work cycle: intensive work
• isolation class: I
• degree of protection: IP 54
• working temperature: -20 ° C ~ 55 ° C

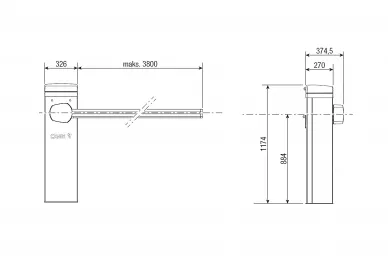

• dimensions: 1174 x x326 x 374.5mm
• weight: 62 kg
