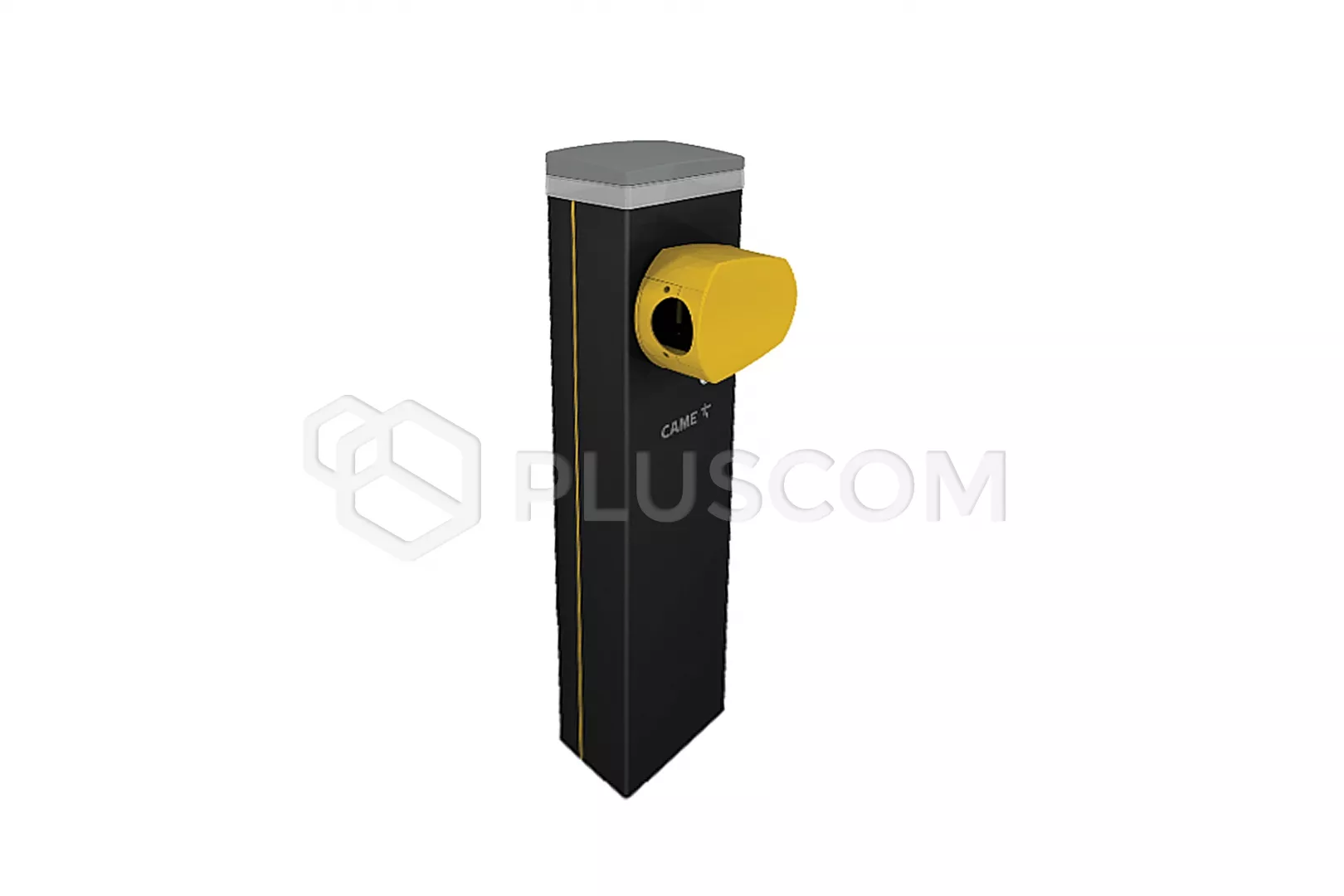

Came GARD PT Electromechanical barrier up to 4m

BLADE CAME GARD PT 803BB-0330 UNIT CENTRAL FOR ARM UP TO 3.8m

The GARD PT barrier in an aluminum housing is dedicated to parking systems and places with high traffic. Brushless motor combined with the unobtrusive gearbox provides a solution of extreme durability (MCBF = 4 million cycles!), Quiet operation and high efficiency.
GARD PT performs the maneuver thanks to the brushless technology opening in just 1.2s with a 3m arm.

The assembly of the barrier does not require any special preparations. It has a technological prepared openings in the housing for the installation of photocells and accessories directly on the barrier structure. A very large number additional accessories allow the GARD barrier to be uniquely adapted to specific installation location.

Gard PT has a built-in control unit located directly below the the housing cover. Thanks to this, all stages of setup and maintenance can be carried out in a comfortable standing position with the housing closed.
It is equipped with a 7-segment display for easy management installation thanks to the standard procedure.
The electronic board is equipped with an adapter for ETHERNET connection to integrate the barrier with parking and access control systems. All CAME accessories can be connected directly to the board thanks to the modules R700 / 800. ,

PROPERTIES

• brushless technology
• Built-in control panel with easy access and display
• high performance with continuous cycle
• operational reliability
• 3 safety inputs for photocells and accessories security
• possibility to connect CAME Connect module
• up to 2.5m of arm without spring (3.8m with spring)
• quiet running
• force pair and speed control
• monitoring arm position
• simple manual release system
• wide range of accessories
• Integrated LED lighting in the upper part of the housing (red and green)
• one version of the barrier for installation both right and left hand side
• USB port for software update and data saving

TECHNICAL DATA

• power supply: 230V 50/60 Hz
• motor power supply: 36V DC
• power: 350W
• standby power consumption: 12W
• current draw: 1.5A
• torque without springs: 80Nm
• torque with springs: 140Nm
• open time up to 90 ° 1.2-4s
• duty cycle (with springs and arm up to 3.8 m): continuous operation
• duty cycle (without springs and arm up to 2.5 m): intensive work
• transformer thermal protection: 120 ° C
• isolation class: I
• protection rating: IP 54
• working temperature: -20 ° C ~ 55 ° C

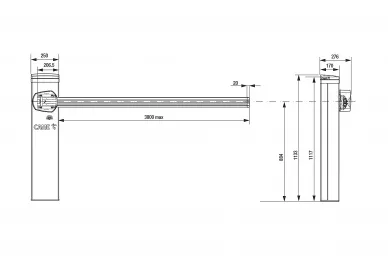

• dimensions: 1133 x x250 x 276mm
• weight: 37 kg
