Came GARD G12000 Set up to 12m

CAME GARD G12000 Set with arm up to 12m

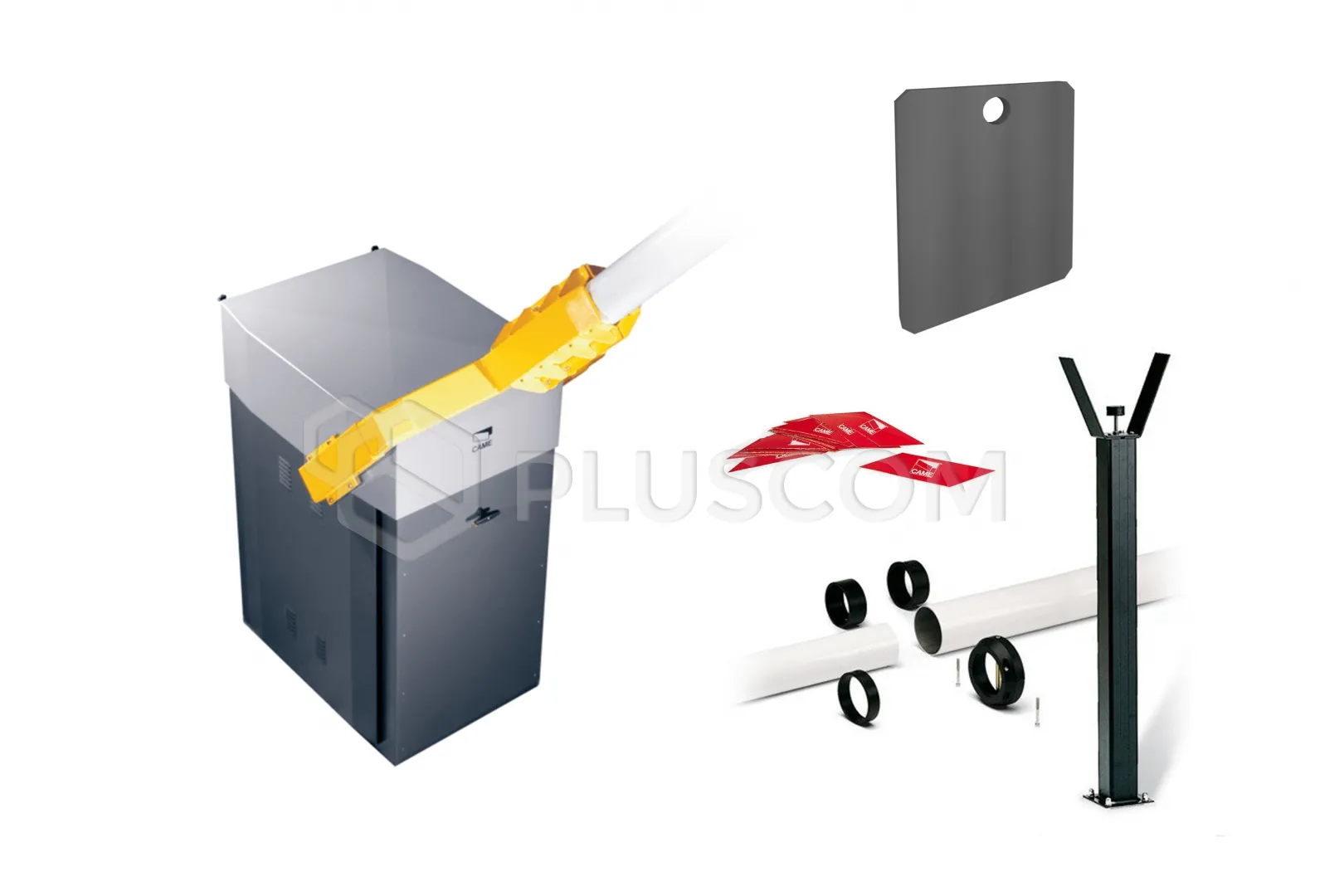

SET INCLUDES G12000K Electromechanical barrier GARD 12m G0121 Aluminum tube arm 6200mm + 6000m G1325 Mandatory Counterweight G0461 Set of 24 warning stickers

CAME GARD G12000 Set up to 12m

The G12000 electromechanical barrier is perfect for access control industrial facilities and high-traffic crossings. Is irreplaceable on crossings where fast and reliable work is necessary. The solid construction makes the barrier suitable for intensive work.
It has two 24 V DC gear motors installed inside the housing and mounted on the same axis, which guarantees greater torque.

The barrier is suitable for both left and right-side installation. It has a built-in control unit with a single-channel radio decoder, springs balancing the arm, amperometric obstacle detection system during opening and closing, and a manual system that releases the arm with a key, incl in case of power failure. The control board powers the motor and all accessories with low voltage (24 V) - making the system very safe.

Aluminum tubular arm consisting of two elements with dimensions: Ø 120 × 6200 mm and Ø 100 × 6000 mm, the connector of these arms and the fixed support.
It is dedicated to GARD series barriers. guarantees resistance to mechanical damage and wear as well as smooth operation. Additionally, the round shape of the profile gives very good resistance to strong wind.

Warning stickers G0461 glued to the white arm barrier significantly improves the visibility of the arm. They are made of foil reflective.

TECHNICAL DATA:

• Power supply: 230V AC
• Motor power supply: 24V DC
• Current consumption: 15A
• Motor power: 300 W
• Duty cycle: intensive work
• Open time to 90°: 10 sec
• Torque: 600 Nm
• Protection level: IP 54
• Operating temperature: -20°C ~ 5°C
• Dimensions: 1230x865x760mm
