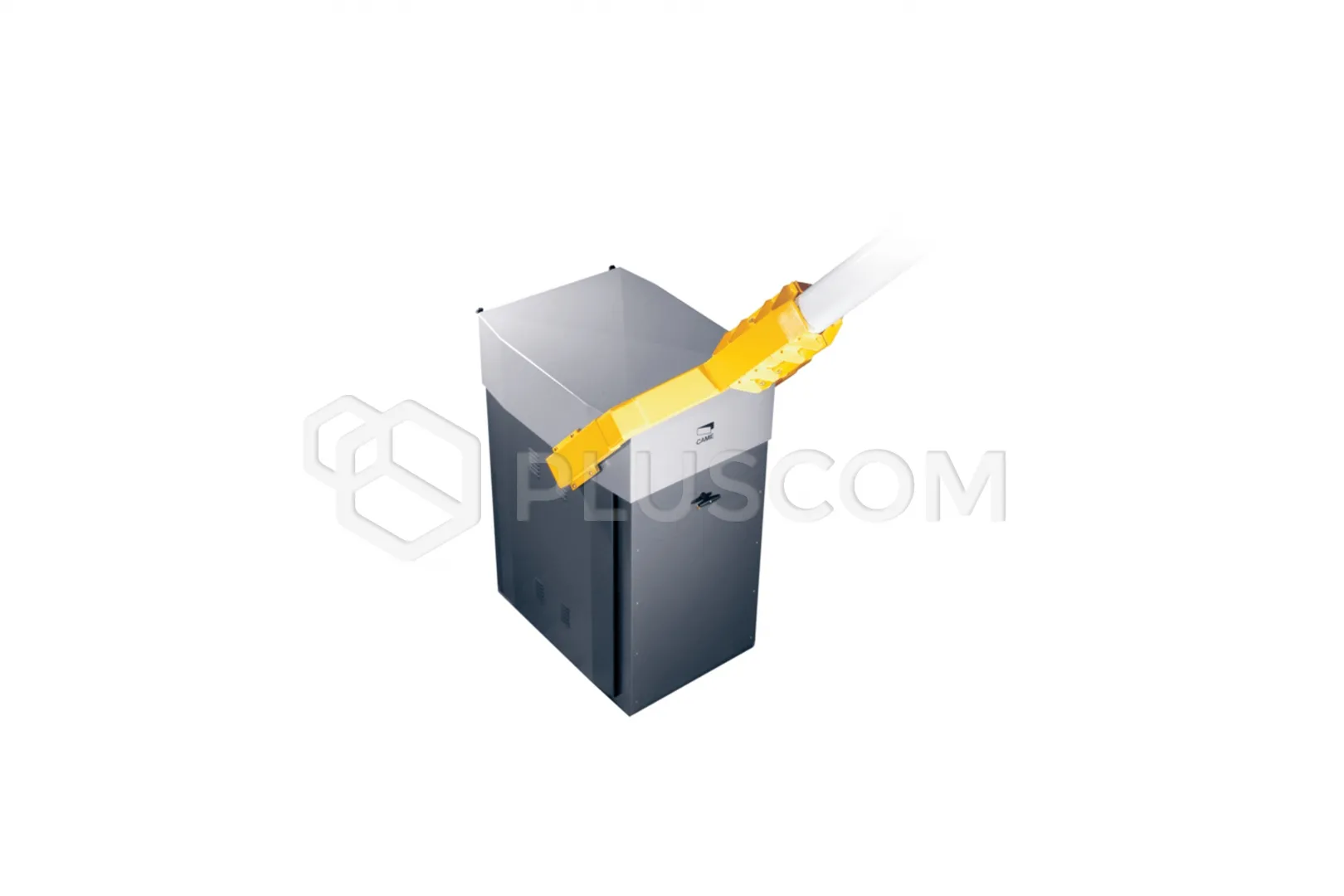

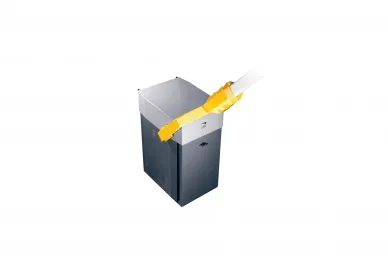

Came G12000K Electromechanical road barrier up to 12m

CAME GARD G12000 BARRIER CENTRAL UNIT FOR ARMS UP TO 12m

The G12000 electromechanical barrier is perfect for access control industrial facilities and high-traffic crossings. Is irreplaceable on crossings where fast and reliable work is necessary. The solid construction makes the barrier suitable for intensive work.
It has two 24V DC gear motors installed inside the housing and mounted in the same axis, which guarantee greater torque.

Installation of the barrier does not require any special preparations. It has technologically prepared holes in the housing for installation of keypads and key locks, photocells and a warning lamp. A very large number of additional accessories allows the GARD barrier to be uniquely adjusted to a specific location installation.

The barrier is suitable for both left and right-side installation. It has a built-in control unit with a single-channel radio decoder, springs balancing the arm, amperometric obstacle detection system during opening and closing, and a manual system that releases the arm with a key, incl in case of power failure. The control board powers the motor and all accessories with low voltage (24 V) - making the system very safe.
Housing made of galvanized and painted steel.

ADVANTAGES OF G6001

• SELF CODING between transmitter and receiver
• AUTOMATIC CLOSING - time adjustable with trimmer
• AMPEROMETRIC OBSTACLE DETECTION - adjustable
• TOTMAN - barrier movement only when the button is pressed
• ARM SPEED ADJUSTMENT
• IMMEDIATELY CLOSING after vehicle detection
• MASTER-SLAVE FUNCTION enabling connection of two barriers

TECHNICAL DATA:

• Power supply: 230V AC
• Motor power supply: 24V DC
• Current consumption: 15A
• Motor power: 300 W
• Duty cycle: intensive work
• Open time to 90°: 10 sec
• Torque: 600 Nm
• Protection level: IP 54
• Operating temperature: -20°C ~ 5°C
• Dimensions: 1230x865x760mm
