CAME FTX15 SAFE set for swing gates with a maximum leaf weight 250kg and
max. 2 m long

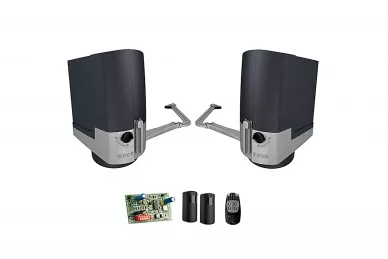

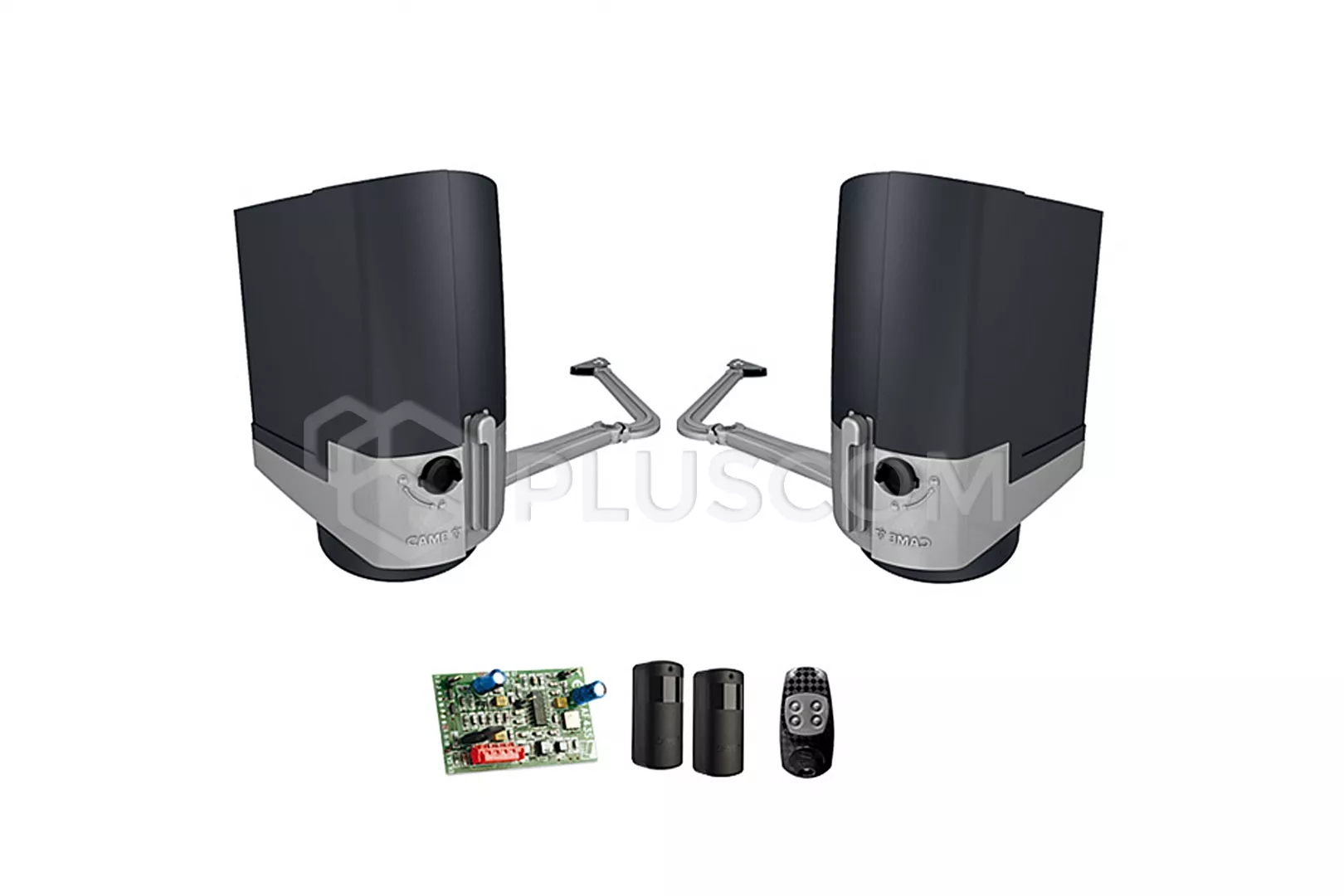

SET CONTAINS:
|
CAME FTX15 SAFE Set
|
The CAME FTX15 drive are technologically advanced
actuators that have been designed to ensure reliable operation and high
functionality. Each actuator can be mounted on small and medium-sized posts.
Its advantages include automatic detection of obstacles, which allows safe use
of the gate, and quiet operation, which ensures comfort of use. The FTX15 swing
gate drive is also easy to install and use.
To increase the comfort of using the gate, you can install a GSM module that
will enable you to remotely open and close the gate using a GSM telephone.
Max. distance from the hinge axis to the end of the post Cmax = 15
cm
Actuators are characterized by:
- the motor is powered by 24 V
- work intensity is up to 40 cycles per hour
- smooth and linear movement of the gate
- quiet and safe operation
- maximum mounting depth of the hinge - up to 15 cm
AT04EV remote control provides radio control with a
dynamically variable code with a frequency of 433.92 MHz, which ensures a high
level of safety in use, and makes the code impossible to copy.
Each time you press the transmitter button, one of over 4 is sent billions of
possible code combinations according to a complex algorithm that only the
receiver can decode it. This technique makes cloning impossible code being
sent.
DXR20CAP is a new generation photocell in a swivel housing.
The infrared beam is adjustable in the range of 180° in the horizontal axis and
5° in the axis vertical and can be locked in the desired position using a
durable lock latching housing. The effectiveness of the action radius in each
direction is ensured by a high-quality lens, specially designed for optimizing
device performance and ensuring perfect pairing in each direction.
MOST IMPORTANT FEATURES:
- ADJUSTMENT OF THE RADIUS RANGE up to 20 m
- SYNCHRONIZATION OF UP TO 8 PAIRS OF PHOTOCELLS without
interference or connection wired between the transmitter and the
receiver
- FILTER FUNCTION to avoid false detections caused by bad
weather conditions or sunlight
- ADJUSTABLE CONTACT OUTPUT for using the photocell also
as control device
- COMPATIBLE with supporting columns from the DIR series
(also with double height)
AF43S frequency card, included in the set, works in frequency
433.92MHz and supports TOP and TAM fixed code control and ATOMO variable code.
