Came CAT-X24 CAT 24V actuator with control unit and radio

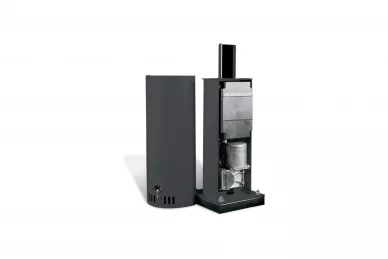

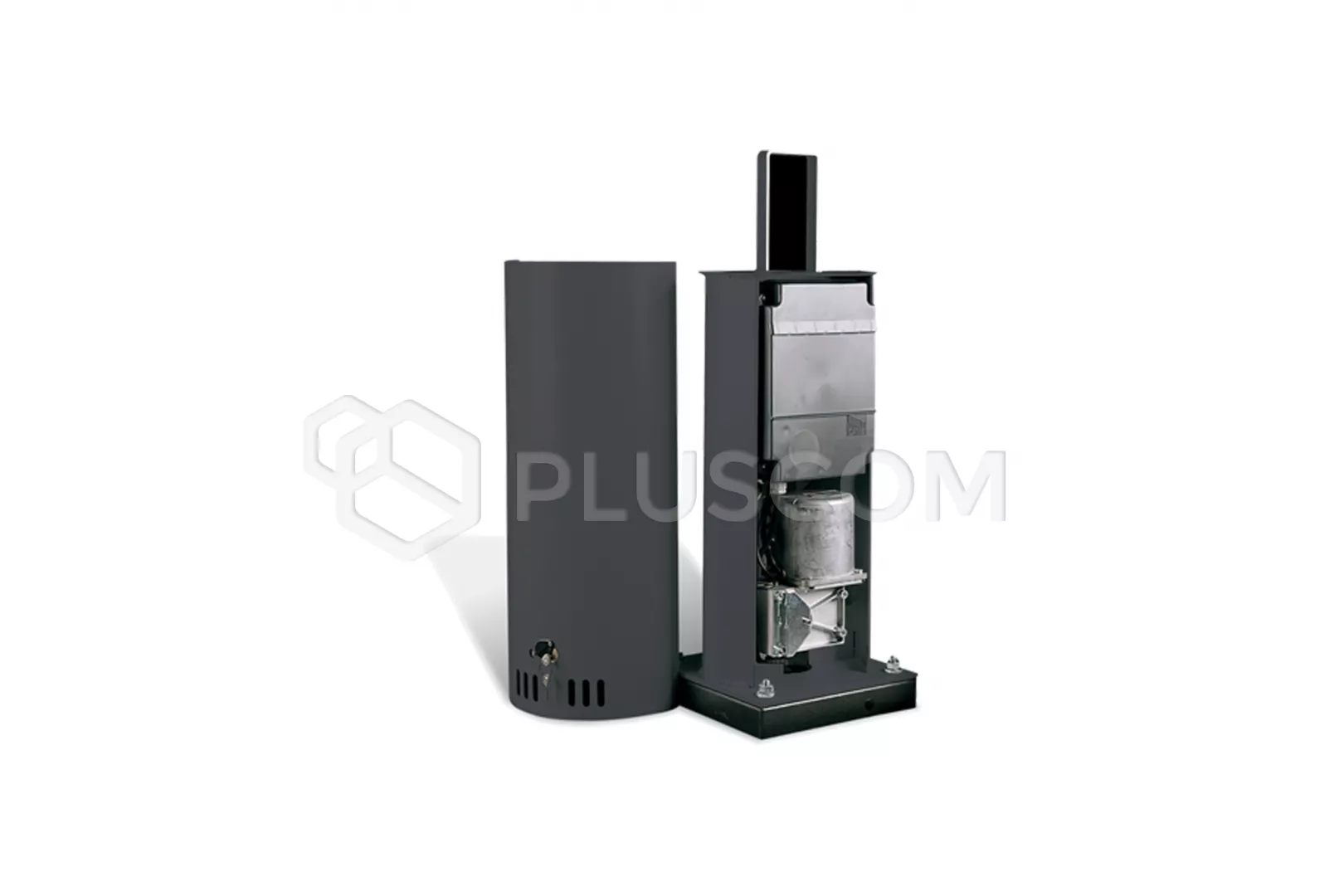

CAME CAT-X24 Automatic chain barrier with built-in gear motor and control panel

CAT-X24 Self-locking electromechanical actuator for securing private parking spaces, designed to be visually appealing fit even the most architecturally demanding facilities.
It has a built-in control unit with a single-channel radio decoder torque regulation.

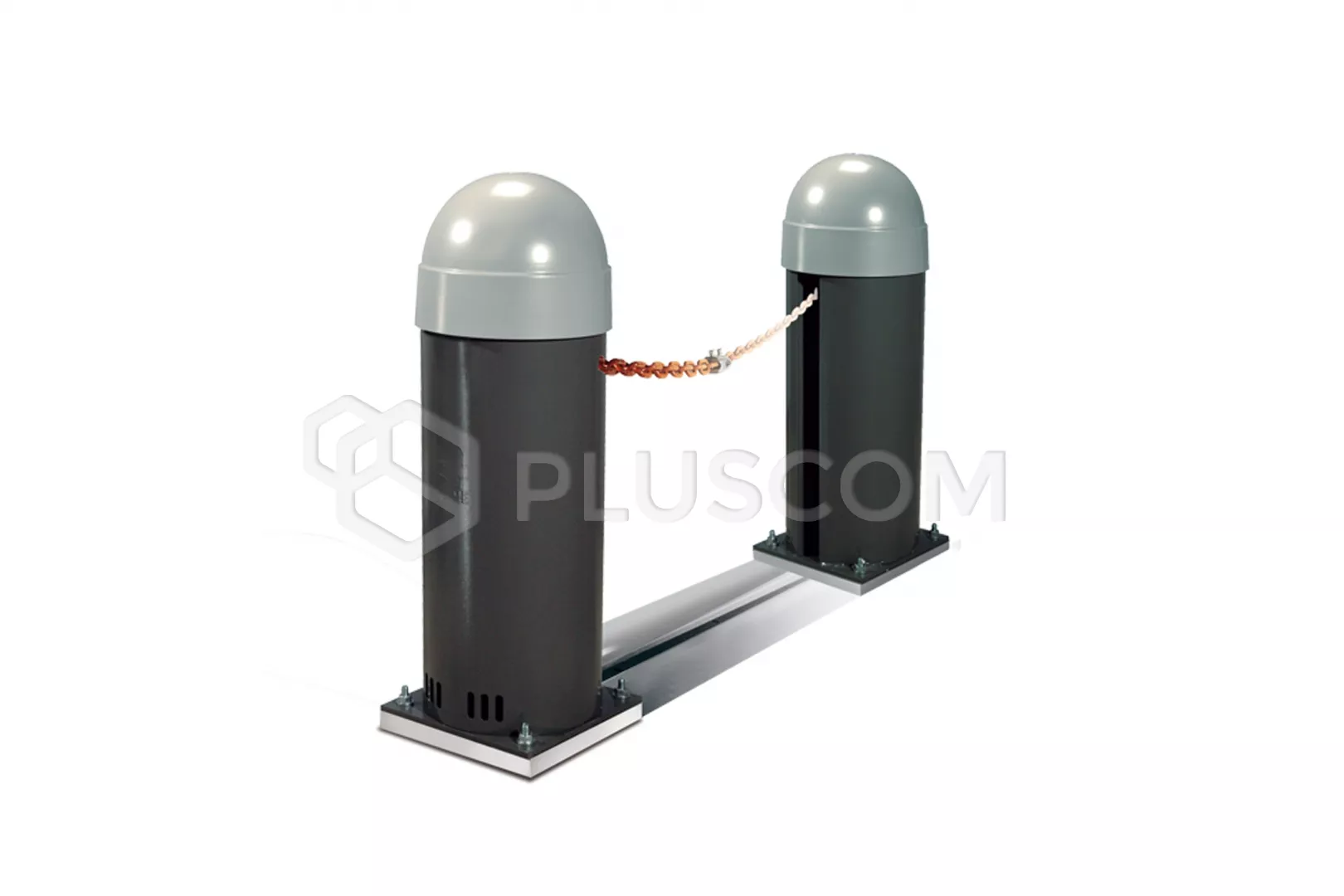

Huge freedom in installation allows you to secure a wide passage up to 16 m long using an actuator, counterweight and chain.
The control board powers the motor and all accessories low voltage (24 V), making the system more safe.
Amperometric sensor detects an obstacle encountered and stops the movement of the chain. This mechanism provides a lot safe use at every installation location.

CAT-X24 is designed for intensive work and the adjustable opening time of the passage is 9-14 seconds.

PRODUCT ADVANTAGES

• self-coding between transmitter and receiver
• automatic closing - time adjustable with trimmer
• amperometric detection of obstacles
• TOTMAN - chain movement only when the button is pressed
• opening speed adjustment

Technical data:

• Power supply: 230V 50/60 Hz
• Motor power supply: 24 V D.C.
• Maximum engine power: 240W
• Motor current consumption: 10A max.
• Lifting force: 50kg
• Duty cycle: 50%
• Open time: 9 - 14 s
• Protection rating: IP54
• Color: RAL 7035
• Operating temperature: -20°C - +55°C
• Dimensions: 780x280x280mm
