Came CAT-X CAT 230V actuator with control unit

1432,30 EUR including 23.00% VAT
Product code: #26275
Manufacturer: CAME
  • Engine power: 230V AC
  • Travel by max. width: up to 16 m
  • Torque adjustment
  • Opening time 11 s
  • Lifting force: 50kg
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came CAT-I Column - counterweight for the actuator Came CAT-15 5mm chain Came CAR-4 Underground profile for chain protection Came CAR-2 Ground profile for chain protection Came PL0033 12V 7Ah battery

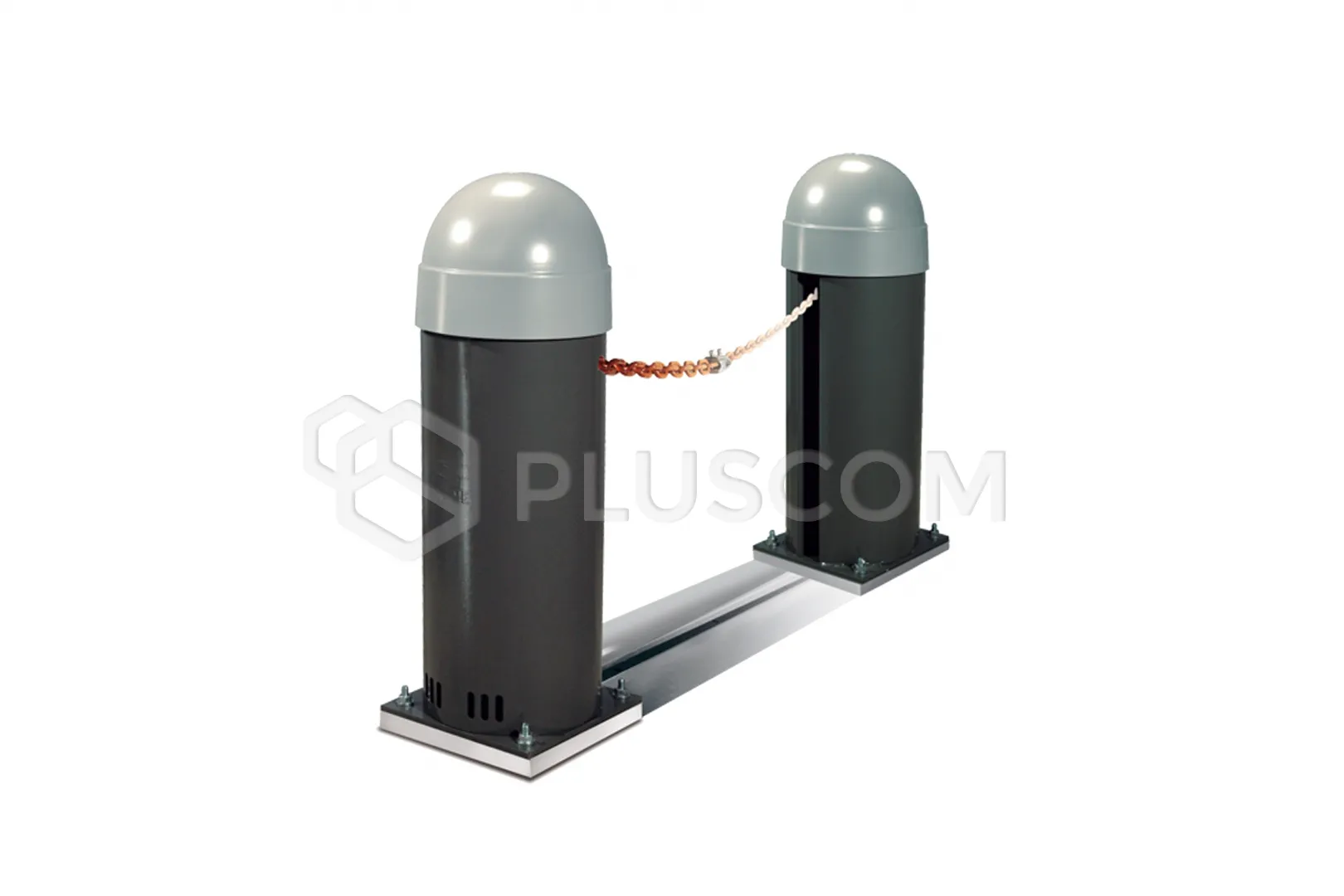

CAME CAT-X Automatic chain barrier with built-in gear motor and control panel

CAT-X Self-locking electromechanical actuator for securing private parking spaces, designed to be visually appealing fit even the most architecturally demanding facilities.

Huge freedom in installation allows you to secure a wide passage up to 16 m long using an actuator, counterweight and chain.

PRODUCT ADVANTAGES

  • self-coding between transmitter and receiver
  • automatic closing - time adjustable with trimmer
  • TOTMAN - chain movement only when the button is pressed

Technical data:

  • Power supply: 230V 50/60 Hz
  • Motor power supply: 230 V AC
  • Maximum engine power: 300W
  • Motor current consumption: 2.7A max.
  • Lifting force: 50kg
  • Duty cycle: 30%
  • Open time: 11 s
  • Protection rating: IP54
  • Color: RAL 7035
  • Operating temperature: -20°C - +55°C
  • Dimensions: 780x280x280mm
Download
User manual 5.66 MB
