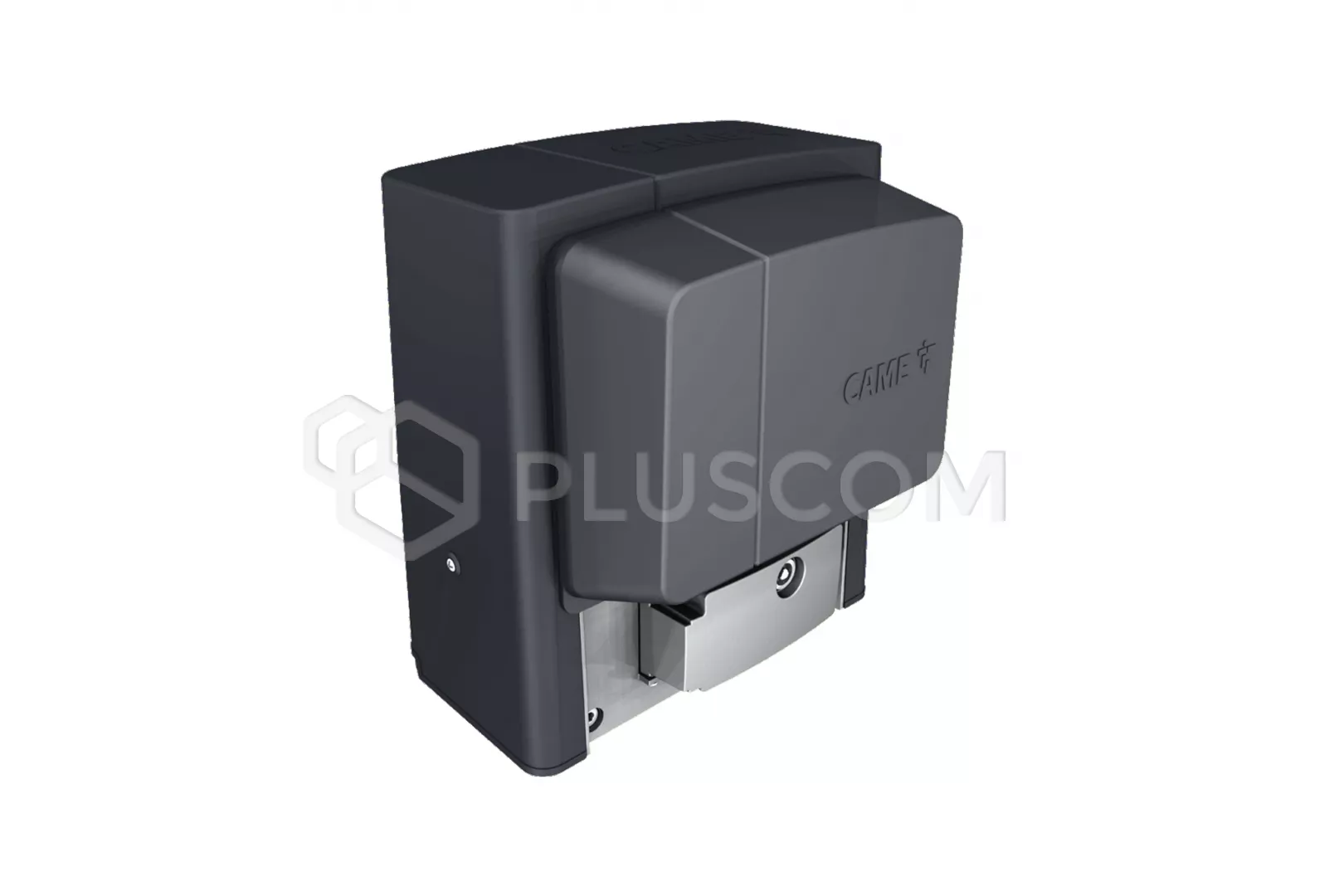

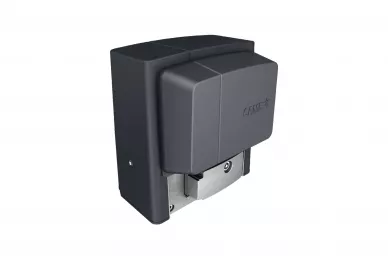

Came BXV608AGS Sliding gate operator up to 800 kg

CAME BXV608AGS Sliding gate operator up to 800 kg

DRIVE PURPOSE: BXV608AGS The gearmotor enables the automation of sliding gates with: up to 800kg maximum length 14m travel speeds: 10m / min

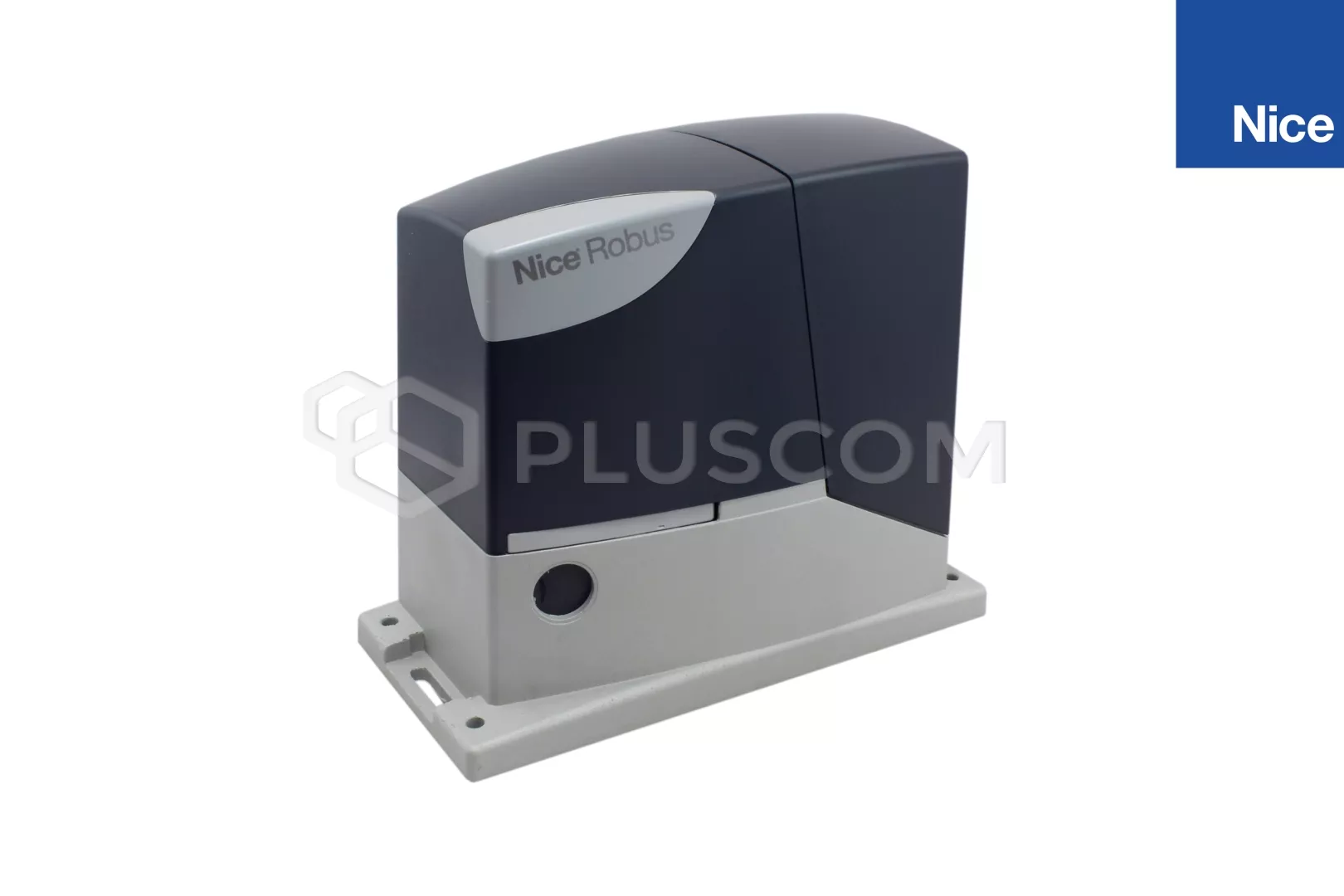

Nice Robus 400 R10 gear motor with built-in control unit

The BX series operator is a reliable solution for applications in both private homes as well as intensive use.
It is equipped with an electronics board with separate terminals to facilitate phases commissioning and diagnostics and a programming display.

The most important advantages of the drive and the set include:

• drive with encoder for stroke control
• electronic board with separate terminals and display to facilitate startup and diagnostic phases
• ability to remember up to 250 different users
• Rolling code radio decoder with built-in Key Code (Twin) function
• configurable safety inputs for direct management of resistive safety edges (8k2Ω)
• management of Rio series wireless security accessories with the help of the appropriate plug
• self-diagnosis of safety devices in wired version i wireless
• Direct management of CAME keyboards with the R800 or by connecting CAME proximity switches with the help of the R700

TECHNICAL DATA:

• Power supply: 230V
• Motor power: 230V
• Standby power consumption: 4.5W
• Power consumption with RGP1: 0.8W
• Power: 560W
• Capacitor: 20 μF
• Thrust: 800N
• Maximum speed of movement: 10.5m / min
• Duty cycle: 30%
• Working temperature: -20 ° C to + 55 ° C
• Isolation class: I
• Grade of protection: IP44
• Dimensions: 307.5 x 300 x 241.5mm
• Weight: 15 kg
