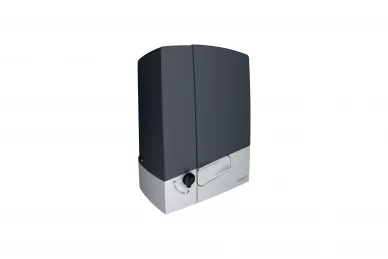

Came BXV08AGS Sliding gate operator up to 800 kg

648,56 EUR including 22.00% VAT
Product code: #25950
Manufacturer: CAME
  • gate weight up to: 800kg, length up to 20m
  • 24V AC motor
  • intensive work
  • built-in motion control and obstacle detection device
  • remote control via the Came Connect module
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came RGP1 Module limiting power consumption Came PL0026 C10MM metal rack with a 10m lock Came PL0032 Battery12V 1.2Ah Came H3000 Release mechanism from the outside Came RSE RS485 communication card Came RSDN003 Heating system Came RSDN002 Set of magnetic limit switches Came RSDN001 cable release for H3000 Came R800 Interface Came R700 Interface

CAME BXV08AGS Motor for sliding gates weighing 800kg and lengths up to 20m


DRIVE PURPOSE:

BXV08AGS The actuator enables the automation of sliding gates with:
  • up to 800kg
  • maximum length 20m
  • work cycle: intensive work
  • travel speeds: 11m / min
CAME BXV08AGS Sliding gate operator up to 800 kg

CAME BXV08AGS Sliding gate operator up to 800 kg
The BXV series drive is a reliable solution for applications in both private homes as well as intensive use, e.g. in housing estates.
It is equipped with an electronics board with separate terminals to facilitate phases commissioning and diagnostics and a programming display.

The most important advantages of the drive and the set include:
  • drive with encoder for stroke control
  • electronic board with separate terminals and display to facilitate startup and diagnostic phases
  • ability to remember up to 250 different users
  • Rolling code radio decoder with built-in Key Code (Twin) function
  • configurable safety inputs for direct management of resistive safety edges (8k2Ω)
  • management of Rio series wireless security accessories with the help of the appropriate plug
  • self-diagnosis of safety devices in wired version i wireless
  • devices designed to connect to the cloud using technology CAME Connect
  • Direct management of CAME keyboards with the R800 or by connecting CAME proximity switches with the help of the R700
The drive is compatible with CAME CONNECT technology up to advanced management and remote control of the installation.
CAME BXV08AGS Sliding gate operator up to 800 kg

CAME BXV08AGS Sliding gate operator up to 800 kg


TECHNICAL DATA:
  • Power supply: 230V
  • Motor power: 24V
  • Standby power consumption: 5.5W
  • Power consumption with RGP1: 0.5W
  • Power: 400W
  • Thrust: 800N
  • Duty cycle: intensive work
  • Travel speed: 11m / min
  • Working temperature: -20 ° C to + 55 ° C
  • Isolation class: I
  • Grade of protection: IP44

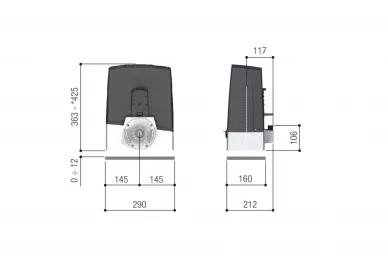

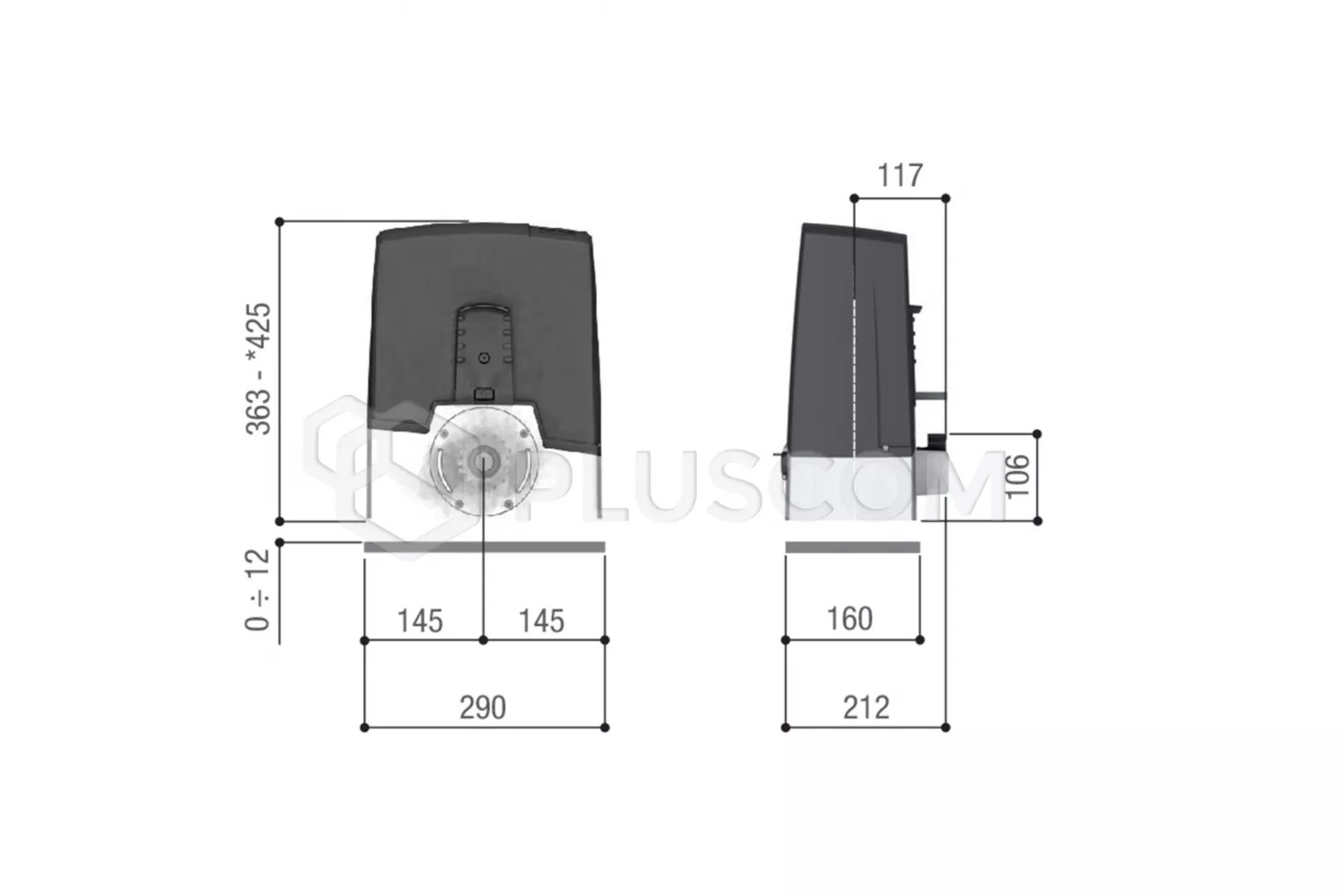

  • Dimensions: 290x212x363mm
  • Weight: 11.5kg
Download
Manual 31.27 MB
