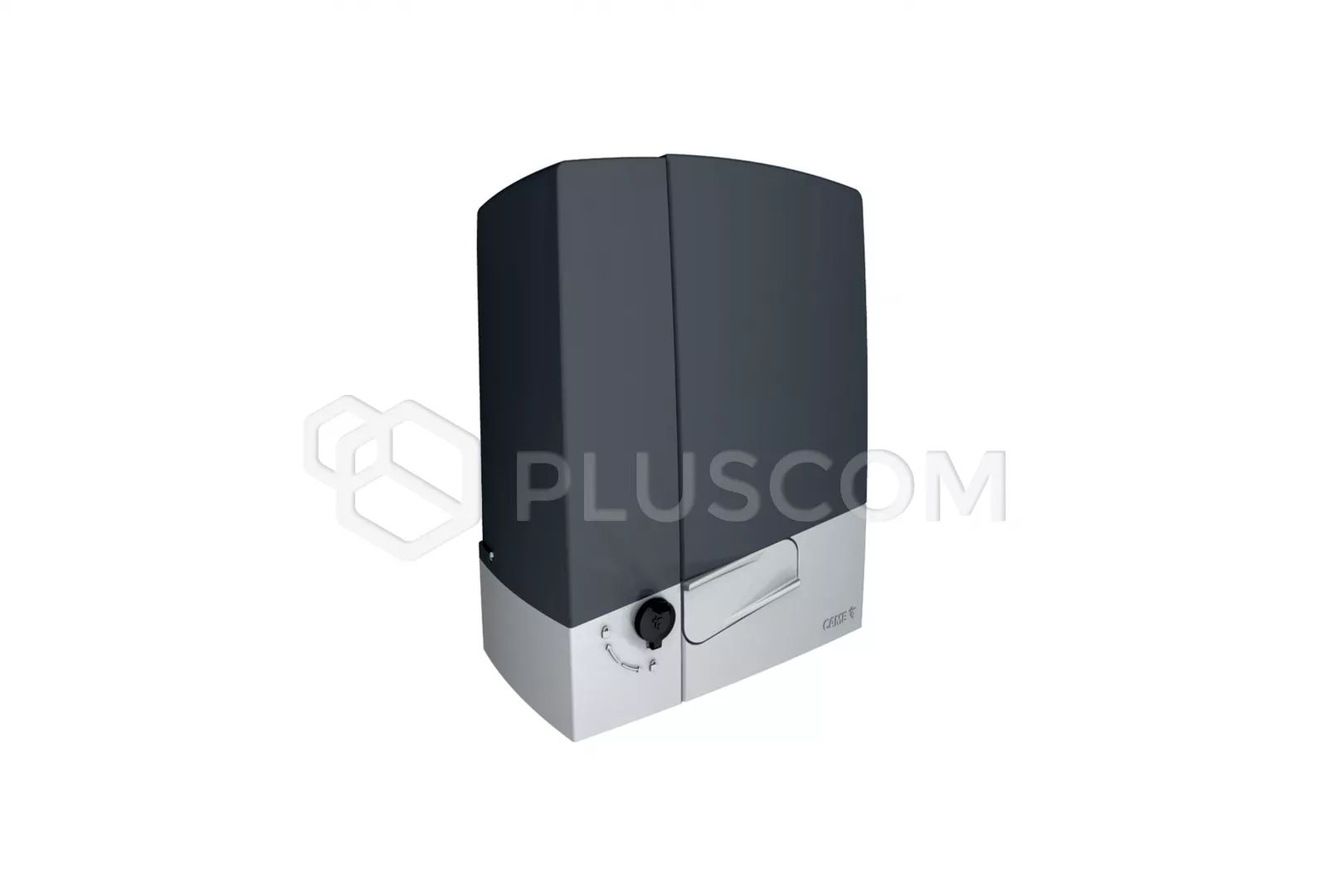

Came BXV06AGM Operator for sliding gates up to 600 kg

CAME BXV06AGM Drive for sliding gates weighing 600kg and length up to 18m

The BXV series drive is a reliable solution for your application both in private homes and intensive use, e.g. in housing estates.
It is equipped with an electronics board with separate terminals to facilitate phases commissioning and diagnostics and a display for programming.

The most important advantages of the drive and the set include:

• drive with encoder for movement control
• electronic board with separate terminals and display to facilitate startup and diagnostic phases
• possibility to remember up to 250 different users
• rolling code radio decoder with built-in Key Code (Twin)
• configurable safety inputs intended for direct management of resistive safety edges (8k2Ω)
• magnetic limit switch
• manage your Rio wireless security accessories using the appropriate plugin
• self-diagnosis of wired and security devices wireless
• devices designed to connect to the cloud using technology CAME Connect
• CAME keypads can be managed directly with the R800 or by connecting CAME proximity switches with R700

The drive is compatible with CAME CONNECT to advanced technology management and remote control of the installation.

TECHNICAL DATA:

• Power: 230V
• Motor power: 24V
• Standby power consumption: 5.5W
• Power consumption with RGP1 module: 0.5W
• Power: 270W
• Thrust: 600N
• Duty cycle: intensive work
• Travel speed: 12m/min.
• Operating temperature: -20°C to +55°C
• Protection grade: IP44

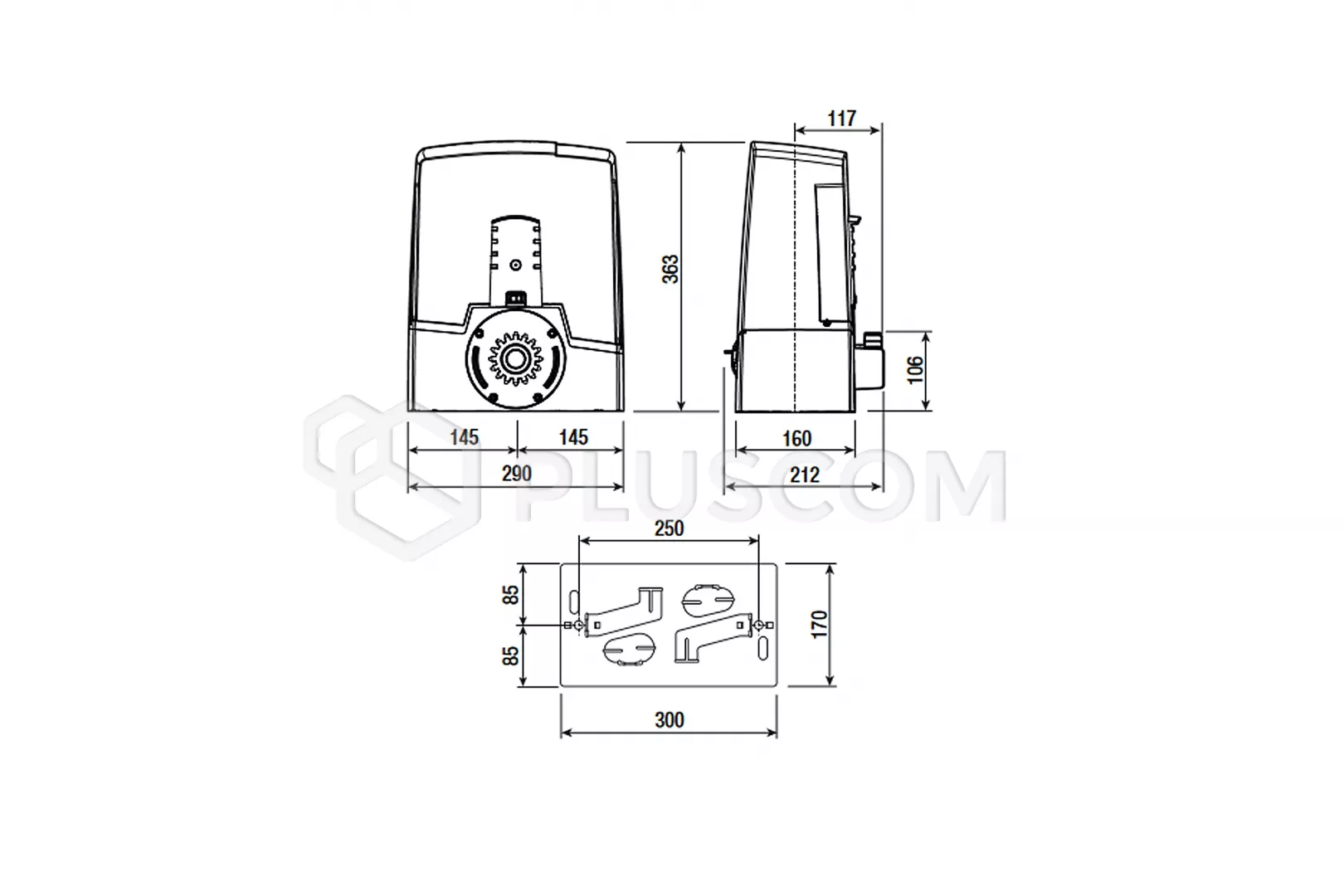

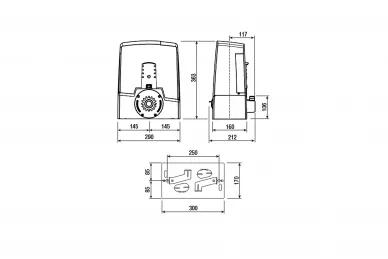

• Dimensions: 290x212x363mm
• Weight: 11.5kg
