CAME BXV 4 RAPID ATOMO set for sliding gates with
weight 400kg

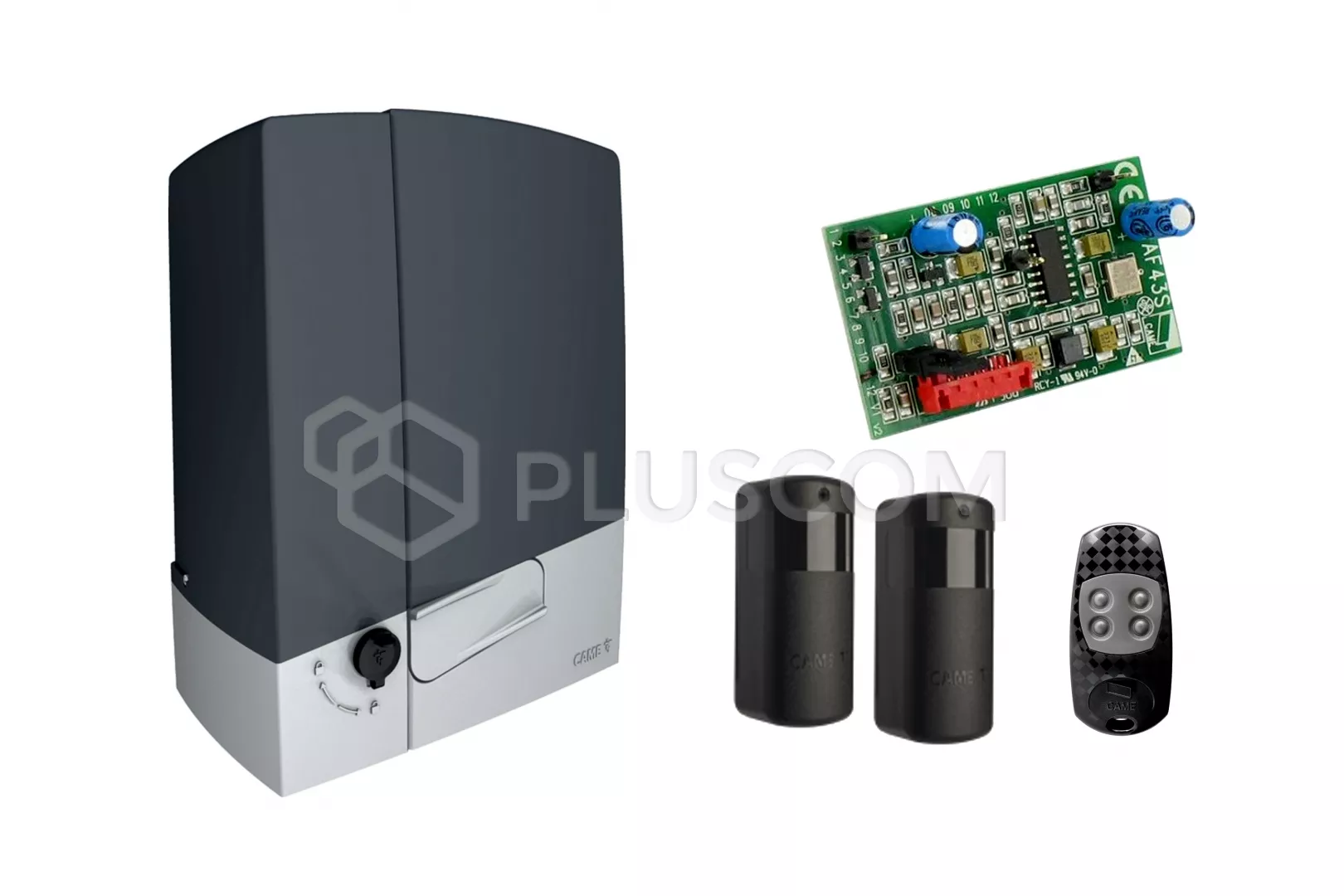

PACK CONTAINS:
|
CAME BXV BXV 4 RAPID ATOMO Set
|
The BXV series drive is a reliable solution for
applications in both private homes as well as intensive use, e.g. in housing
estates.
Thanks increased travel speed BXV04AGF RAPID allows opening
and closing gates twice as fast as with standard motors, i.e. 22m /
min.
It is equipped with an electronics board with separate terminals to facilitate
phases commissioning and diagnostics and a programming display.
The most important advantages of the drive and the set
include:
- drive with encoder for stroke control
- electronic board with separate terminals and display to facilitate
startup and diagnostic phases
- ability to remember up to 250 different users
- Rolling code radio decoder with built-in Key Code (Twin) function
- configurable safety inputs for direct management of resistive safety
edges (8k2Ω)
- management of Rio series wireless security accessories with the help of
the appropriate plug
- self-diagnosis of safety devices in wired version i wireless
- devices designed to connect to the cloud using technology CAME
Connect
- Direct management of CAME keyboards with the R800 or by connecting CAME
proximity switches with the help of the R700
The drive is compatible with CAME CONNECT technology up to
advanced management and remote control of the installation.
AT04EV remote control is provides radio control of the
dynamically variable code with the frequency of 433.92 MHz, which gives a high
level of user security and makes the code impossible to be copied.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.
DXR20CAP new generation photocell in a rotating housing. Will
find wide application in places where the installation space and construction
of the installation do not allow for perfect alignment, front to front, of
standard photocells.
The infrared beam is adjustable in the range of 180° in the horizontal axis and
5° in the axis vertical and can be locked in the desired position by a
heavy-duty lock housing. The effectiveness of the radius of action in each
direction is ensured by a high-quality lens, specially designed for the purpose
optimizing device performance and ensuring perfect pairing in each direction.
The AF43S frequency card, included in the kit, operates at
433.92 MHz and supports constant code control TOP and TAM and the ATOMO rolling
code.
TECHNICAL DATA:
- Power supply: 230V
- Motor power: 24V
- Standby power consumption: 5.5W
- Power consumption with RGP1: 0.5W
- Power: 240W
- Thrust: 250N
- Duty cycle: intensive work
- Travel speed: 22m / min
- Working temperature: -20 ° C to + 55 ° C
- Isolation class: I
- Grade of protection: IP44
- Dimensions: 290x212x363mm
- Weight: 10kg
