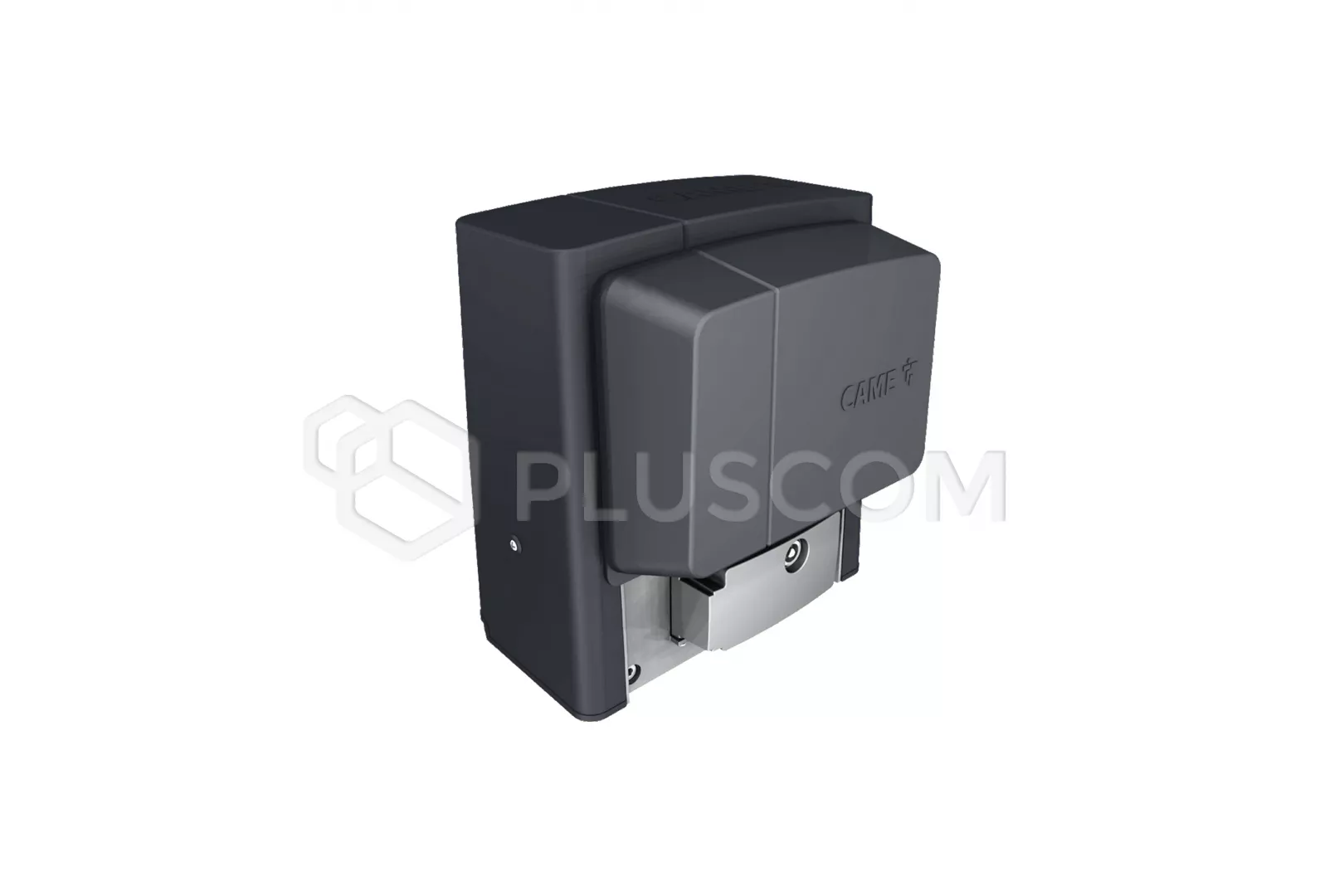

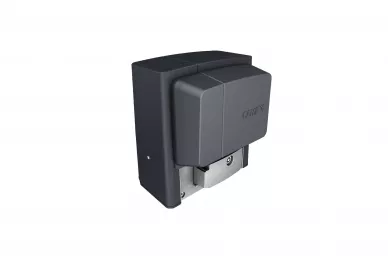

Came BX708AGM Operator for sliding gates up to 800 kg

Product code: #31943
Manufacturer: CAME
  • gate weight up to: 800kg, length up to 14m
  • motor power supply: 230V
  • built-in encoder and motion control and obstacle detection device
  • mechanical limit switches
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,46 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came KRX1FXSO Orange 24 / 230V warning lamp Came RGP1 Module limiting power consumption Came RSE RS485 communication card Came R800 Interface Came R700 Interface TULPLAST LZP/40 Polyamide rack with steel core 1.2m TULPLAST LZP/33 Polyamide rack with steel core 1m Came KLED LED Warning Light 120-230V Came KRX1FXSW Yellow 24/230V warning lamp Came KRX1FXSW White 24 / 230V warning lamp

CAME BX708AGM Drive for sliding gates weighing 800 kg and length up to 14 m


The BX708AGM drive is a reliable solution for your application both in private homes and in intensive use.
It is equipped with an electronics board with a display for programming, built-in a radio decoder, a device for traffic control and obstacle detection, and magnetic limit switches.
It is designed for sliding gates weighing up to 800 kg and length up to 14 m.

TECHNICAL DATA:
  • Power: 230V
  • Motor power supply: 230V
  • Standby power consumption: 2.4W
  • Power consumption with RGP1 module: 0.5W
  • Power: 530W
  • Capacitor: 20 μF
  • Thrust: 800N
  • Maximum movement speed: 10m/min
  • Duty cycle: 30%
  • Operating temperature: -20°C to +55°C
  • Insulation class: I
  • Protection grade: IP44
  • Dimensions: 307.5x300x241.5mm
  • Weight: 15 kg
