CAME Set BX STRONG MAGNETIC ATOMO for gates
sliding doors weighing 800 kg
KIT INCLUDES:
|

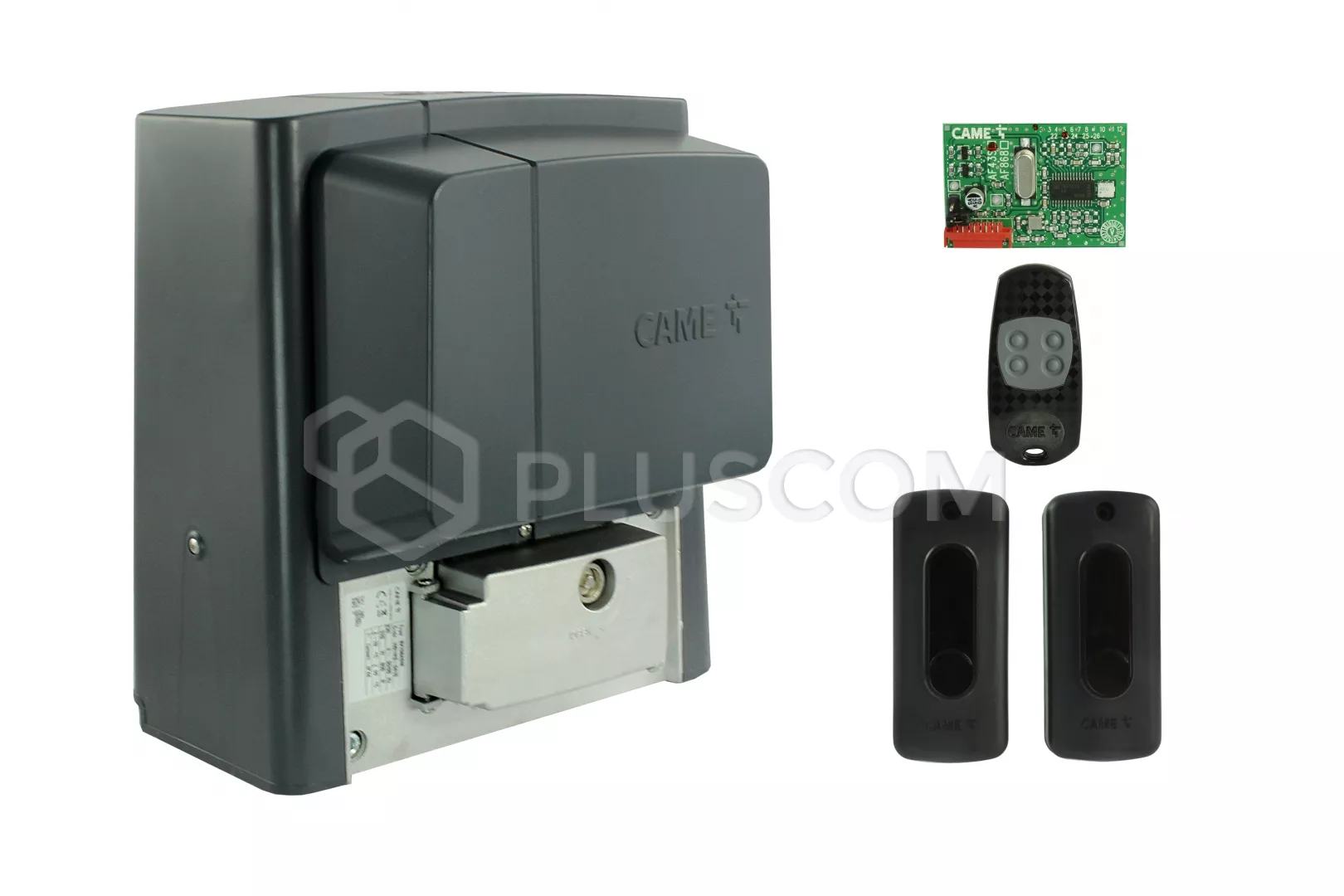

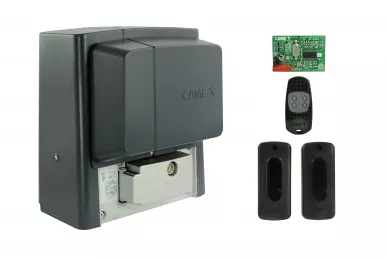

CAME BX STRONG MAGNETIC ATOMO set for sliding gates
|
The
BX708AGM drive is a reliable solution for your
application both in private homes and in intensive use.
It is equipped with an electronics board with a programming display, a built-in
radio decoder, a device for motion control and detection obstacles and magnetic
limit switches. It is designed for sliding gates weighing up to 800 kg and
lengths up to 14 m.
The
AT04EV remote control provides radio control with a
dynamically variable o code frequency of 433.92 MHz, which ensures a high level
of safety of use, i makes the code uncopyable.
Each time the transmitter button is pressed, one of more than 4 is sent billion
possible code combinations according to a complex algorithm that only the
receiver can decipher it. This technique makes cloning impossible sent code.
DIR photocells are distinguished by their modern design and
very small size sizes. Thanks to the use of the IP54 tightness class and
appropriate mounting accessories, DIR photocells can be mounted both inside and
outside and outside.
They have a modular structure, thanks to which their assembly can be at
different heights.
The principle of operation of the DIR photocell consists in synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver works only with the
corresponding transmitter, eliminating thus the possibility of signal
interference with external sources.
The
AF43S frequency card, included in the set, works in
frequency of 433.92 MHz and supports TOP and TAM fixed code control and ATOMO
rolling code.
TECHNICAL DATA:
- Power: 230V
- Motor power supply: 230V
- Standby power consumption: 2.4W
- Power consumption with RGP1 module: 0.5W
- Power: 530W
- Capacitor: 20 μF
- Thrust: 800N
- Maximum movement speed: 10m/min
- Duty cycle: 30%
- Operating temperature: -20°C to +55°C
- Insulation class: I
- Protection grade: IP44
- Dimensions: 307.5x300x241.5mm
- Weight: 15 kg
