CAME BX PLUS ATOMO set for sliding gates with
weight 400kg

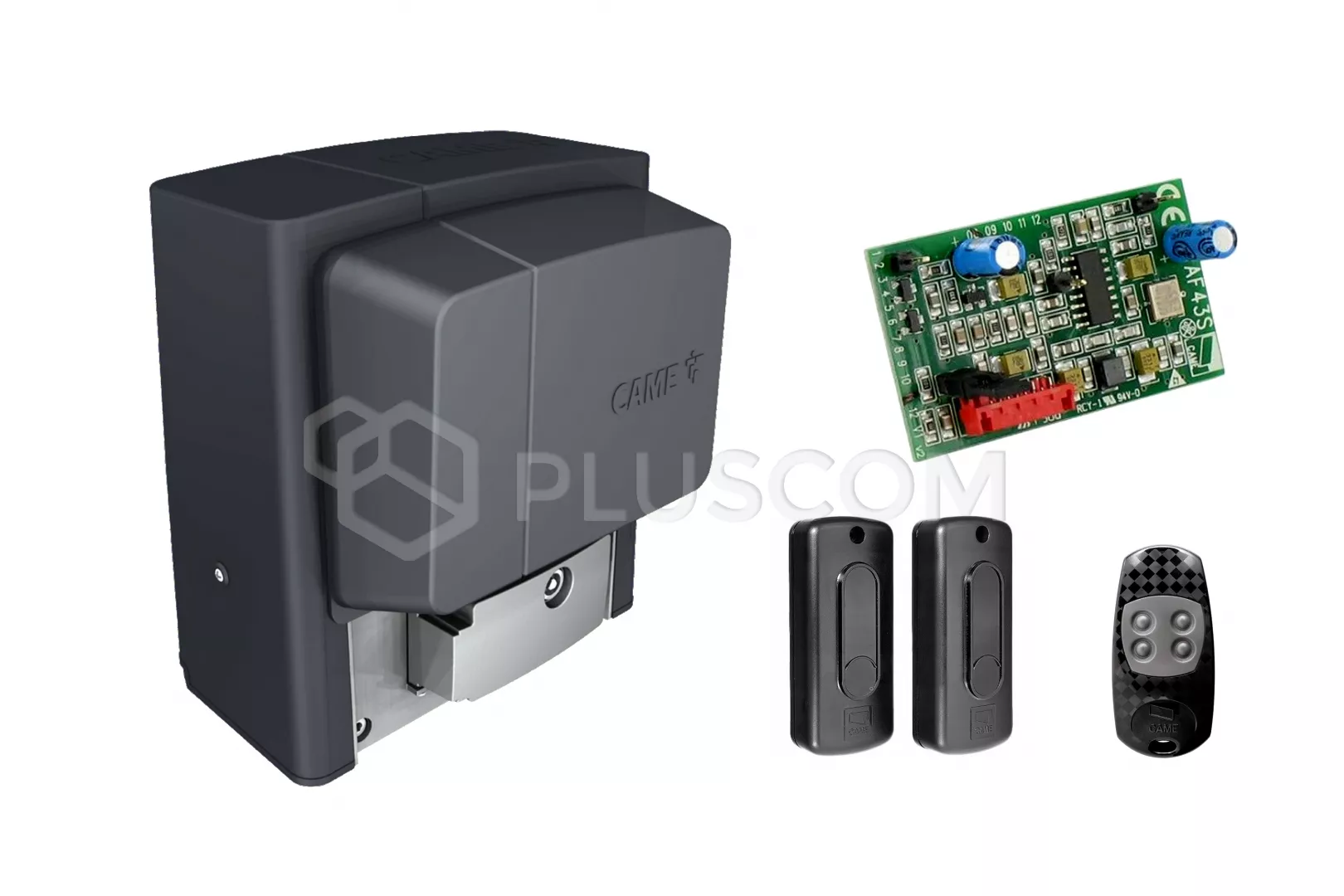

PACK CONTAINS:
|
CAME BX PLUS ATOMO set for sliding gates
|
The BX series operator is a reliable solution for
applications in both private homes as well as intensive use.
It is equipped with an electronics board with separate terminals to facilitate
phases commissioning and diagnostics and a programming display.
The most important advantages of the drive and the set
include:
- drive with encoder for stroke control
- electronic board with separate terminals and display to facilitate
startup and diagnostic phases
- ability to remember up to 250 different users
- Rolling code radio decoder with built-in Key Code (Twin) function
- configurable safety inputs for direct management of resistive safety
edges (8k2Ω)
- management of Rio series wireless security accessories with the help of
the appropriate plug
- self-diagnosis of safety devices in wired version i wireless
- devices designed to connect to the cloud using technology CAME
Connect
- Direct management of CAME keyboards with the R800 or by connecting CAME
proximity switches with the help of the R700
The drive is compatible with CAME CONNECT technology for advanced
management and remote control of the installation.
AT04EV remote control is provides radio control of the
dynamically variable code with the frequency of 433.92 MHz, which gives a high
level of user security and makes the code impossible to be copied.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.
DIR photocells are distinguished by a modern design and very
small dimensions. Thanks to the use of the IP54 tightness class and appropriate
accessories mounting, the DIR photocells can be installed both inside and on
outside.
They have a modular structure, so their assembly can be on different types
heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.
The AF43S frequency card, included in the kit, operates at
433.92 MHz and supports constant code control TOP and TAM and the ATOMO rolling
code.
TECHNICAL DATA:
- Power supply: 230V
- Motor power: 230
- Standby power consumption: 5W
- Power consumption with RGP1: 0.8W
- Power: 560W
- Capacitor: 12 μF
- Current consumption: 2.7A
- Thrust: 600N
- Maximum speed of movement: 10.5m / min
- Cycles / hour: 17
- Duty cycle: 30%
- Travel speed: 10m / min
- Working temperature: -20 ° C to + 55 ° C
- Isolation class: I
- Grade of protection: IP44
- Dimensions: 307.5 x 300 x 241.5mm
- Weight: 15 kg
