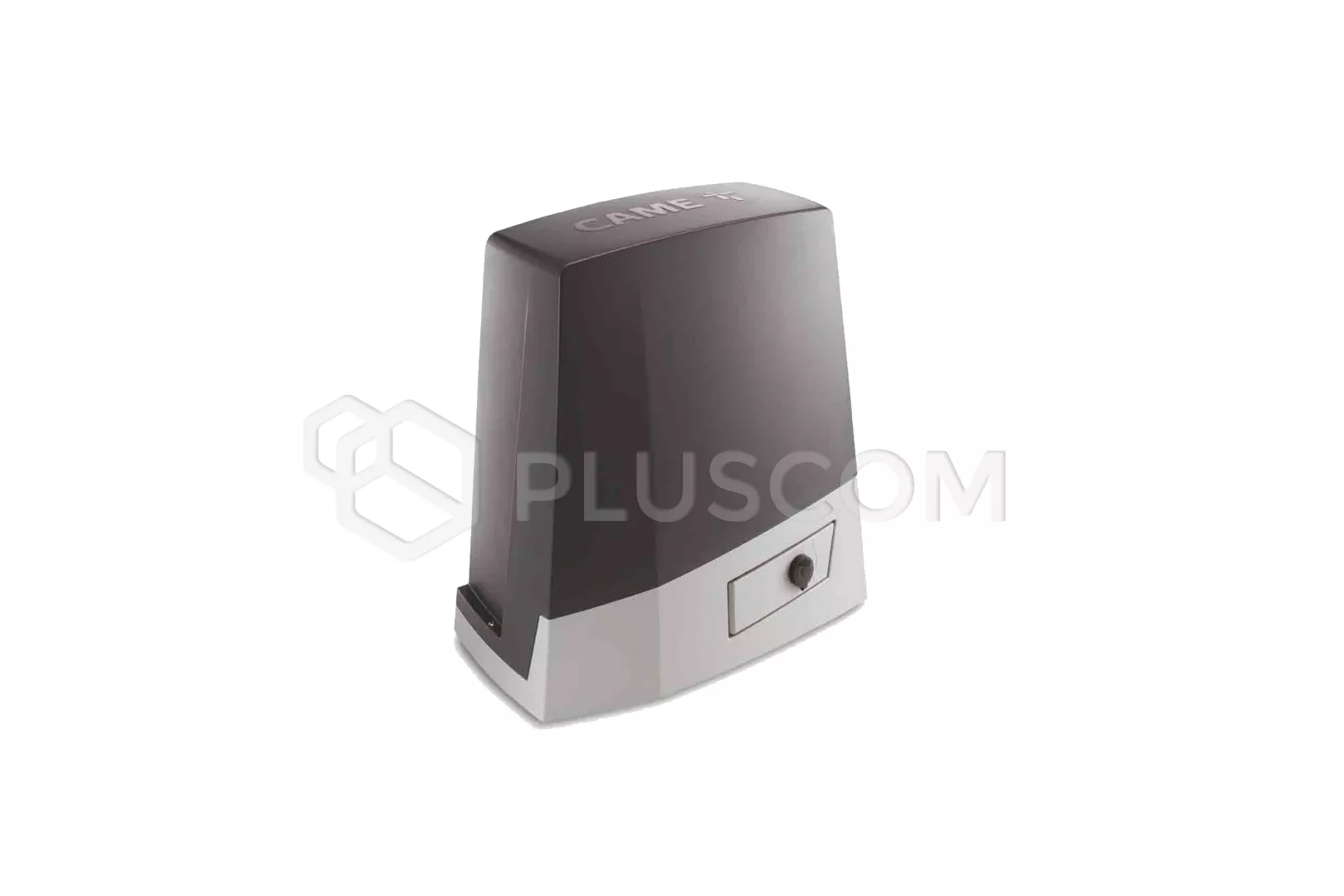

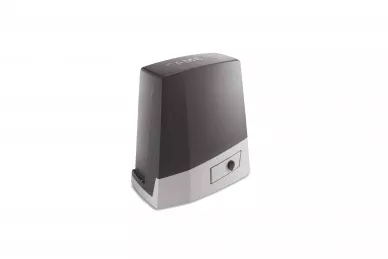

Came BKV15AGS Sliding gate operator up to 1500 kg

CAME BKV15AGS Drive for sliding gates weighing 1500 kg and length up to 20m

DRIVE PURPOSE: BKV15AGS High-performance actuator enables gate automation sliding doors with: weights up to 1500kg maximum length 20m continuous work travel speeds: 12m/min

CAME BKV15AGS Sliding gate operator up to 1500 kg

The BKV15AGS drive is intended for sliding gates weighing up to 1500 kg, designed for intensive use. It is compatible with CAME CONNECT and is equipped with ADAPTIVE TORQUE Technology.
Adaptive Torque Technology constantly assesses load and resistance levels so to maintain the speed at the set co level if obstacles are detected ensures maximum efficiency and low maintenance costs

PROPERTIES:

• 36 V DC motor, equipped with ENCODER
• Drive mounted with 4 SCREWS
• 4 programmable safety inputs for connection
• NC contact safety devices and direct connection of resistive strips (8k2)
• Navigation function allowing you to perform standard configuration in a few simple steps
• Multifunctional graphic display for easy configuration
• TWIN (Key Code) coding with the ability to manage 250 users for radio control and proximity card readers
• Memory for saving and sending data regarding settings and saved users
• Smooth movement during startup and deceleration ensures long product life and consistent performance
• Simple manual release system secured with a key
• Maneuver counter displaying the number of maneuvers performed by the drive directly on the screen, making system maintenance easier

TECHNICAL DATA:

• Power supply: 230V 50/60Hz
• Motor power supply: 36V DC
• Control board power supply: 26V DC
• Power consumption in standby mode: 14W
• Maximum power: 200W
• Thrust force: 800N
• Travel speed: 12m/min
• Gear module: 4
• Duty cycle: continuous operation
• Protection rating: IP54
• Operating temperature: -20°C ~ +55°C
• Sound pressure level: ≤70dB (A)
• Working time: 180s
• Weight: 20kg
