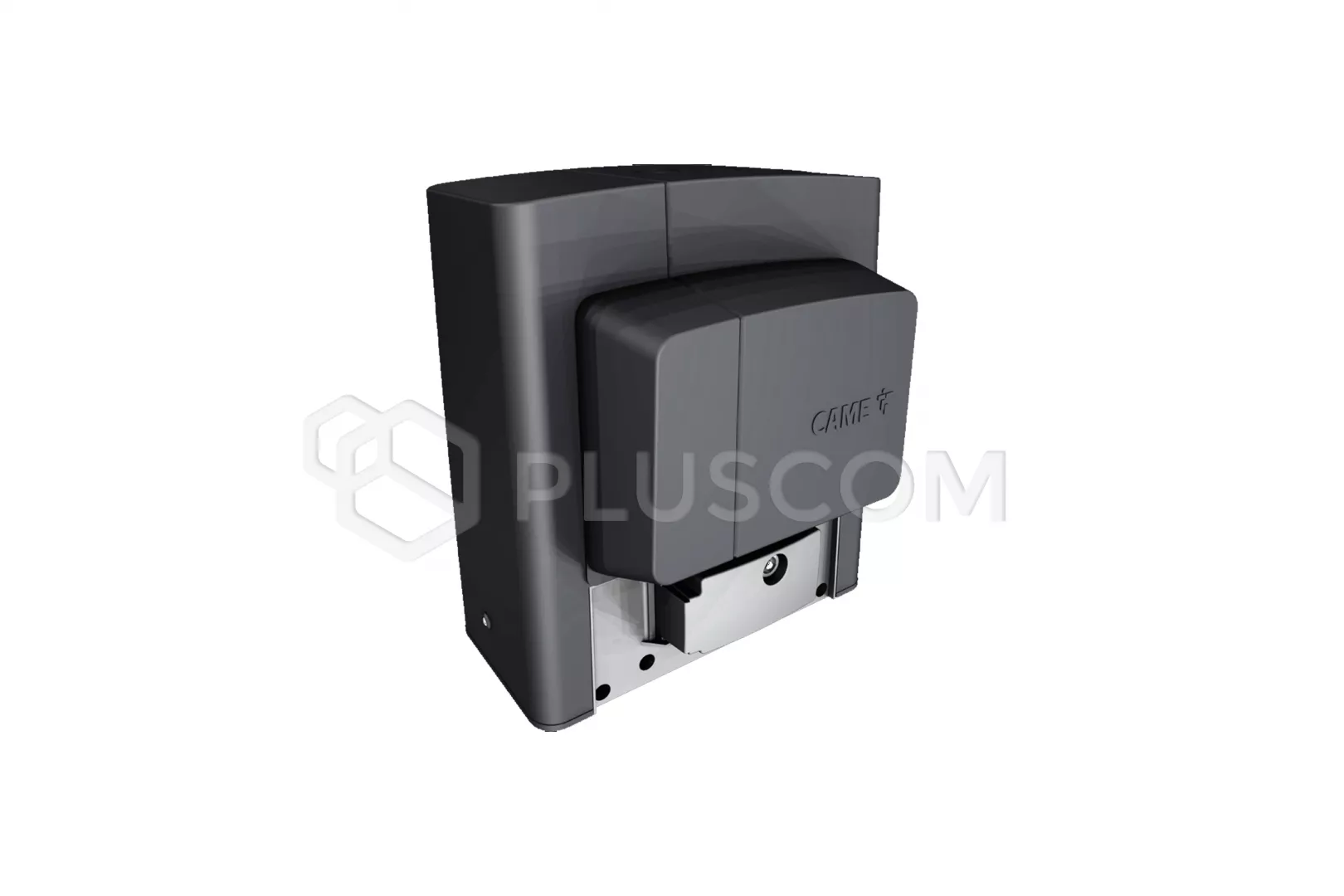

Came BKS22AGE Sliding gate operator up to 2200 kg

1198,77 EUR including 23.00% VAT
Product code: #25977
Manufacturer: CAME
  • gate weight up to: 2200kg, length up to 20m
  • 230V AC motor
  • gear module: 4
  • intensive work
  • traffic control device and obstacle detection
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came R700 Interface Came PL0031 CH8MM 8mm metal rack Came PL0027 C8MM 8mm metal rack with lock Came PL0026 C10MM metal rack with a 10m lock Came CGZ6 Metal rack in 1m sections Came RGP1 Module limiting power consumption Came R001 Cylinder with personal key Came RSE RS485 communication card Came RSDN002 Set of magnetic limit switches Came R800 Interface

CAME BKS22AGE Drive for sliding gates weighing 2200 kg and length up to 20m

DRIVE PURPOSE:

BKS22AGE The actuator enables the automation of sliding gates with:
  • weights up to 2200kg
  • maximum length 20m
  • maximum number of cycles per hour: 14
  • travel speeds: 10.5m/min
CAME BKS22AGE Sliding gate operator up to 2200 kg

CAME BKS22AGE Sliding gate operator up to 2200 kg
The BK series drive is a reliable solution for group operations crossings in housing estates, factories and utility buildings public, etc., as well as intensive use.
It is equipped with a control panel with a graphic display and a device for traffic control and obstacle detection
The control panel performs self-diagnostics of all safety devices connected to the system before each opening or closing cycle. Apart from ordinary control and protection functions of the electronics and itself actuator, provide a number of additional functions and features that ensure complete control over automation.

The most important advantages of the drive and the set include:
  • possible connection to the cloud using CAME CONNECT technology
  • self-diagnosis of safety devices
  • possibility to install magnetic limit switches
  • direct control of CAME keyboards and readers using cards R700 and R800
  • possibility to connect the RIO system
  • control panel with a clear display and easy menu
  • ability to remember 250 different users
  • gear module for rack - 4
  • possibility to connect an 8k2Ω resistive safety strip
The drive is compatible with CAME CONNECT technology up to advanced management and remote control of the installation.

The BKS22AGE actuator is designed for intensive work and is characterized by: high moving speed.

TECHNICAL DATA:
  • Maximum gate weight: 2200 kg
  • Maximum gate length: 20 m
  • Control board power supply: 230 V AC (50/60 Hz)
  • Motor power supply: 230 V AC (50/60 Hz)
  • Current consumption: 4.5 A
  • Maximum power: 580 W
  • Travel speed: 10.5 m/min
  • Efficiency: intensive use
  • Thrust force: 1500 N
  • Capacitor: 35 μF
  • Gear: Module 4
  • Housing: IP54
  • Operating temperature: -20 ~ 55°C
  • Weight: 21 kg
  • Dimensions: 360×325×255 mm
