CAME BKS18AGS set for sliding gates weight
1800kg

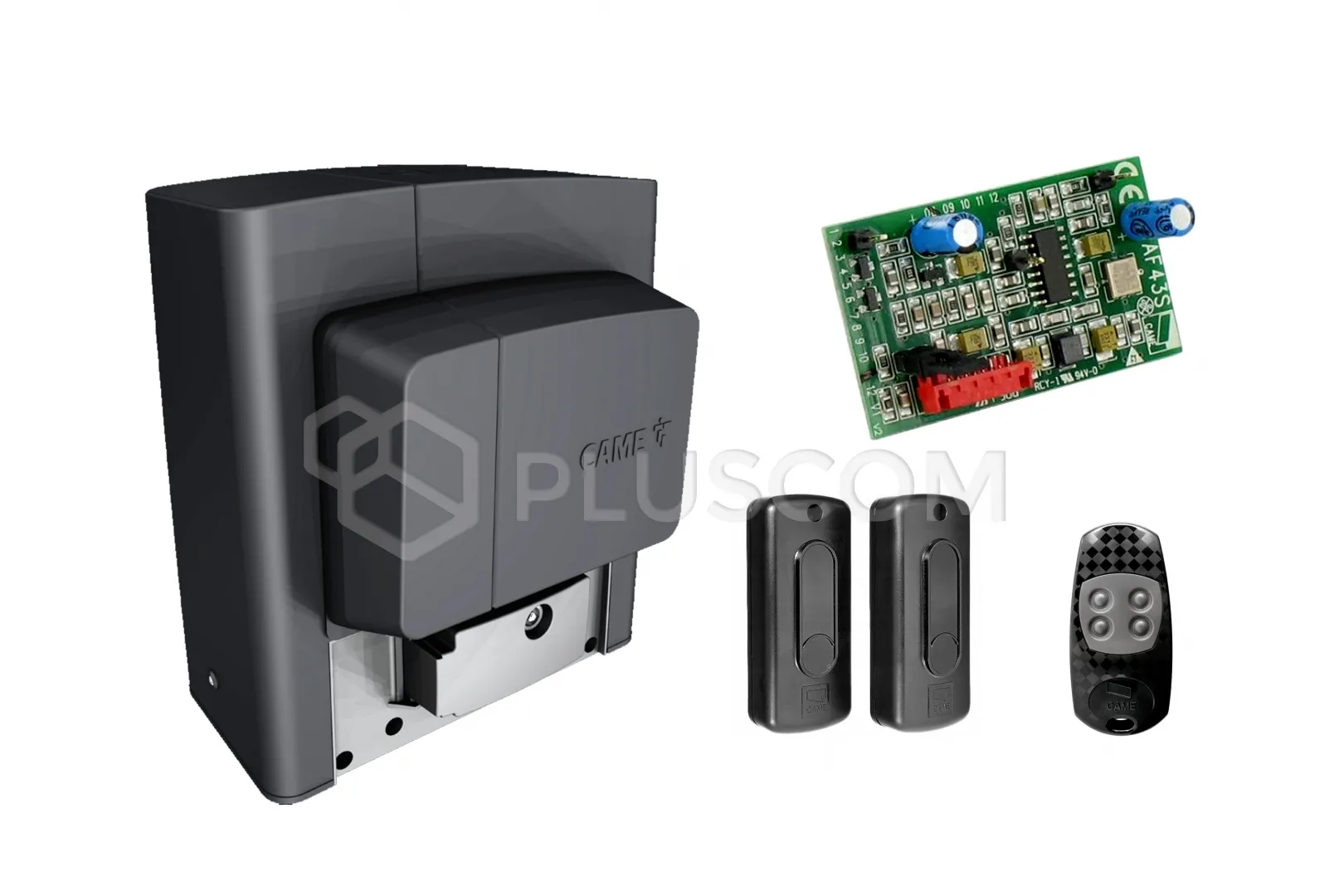

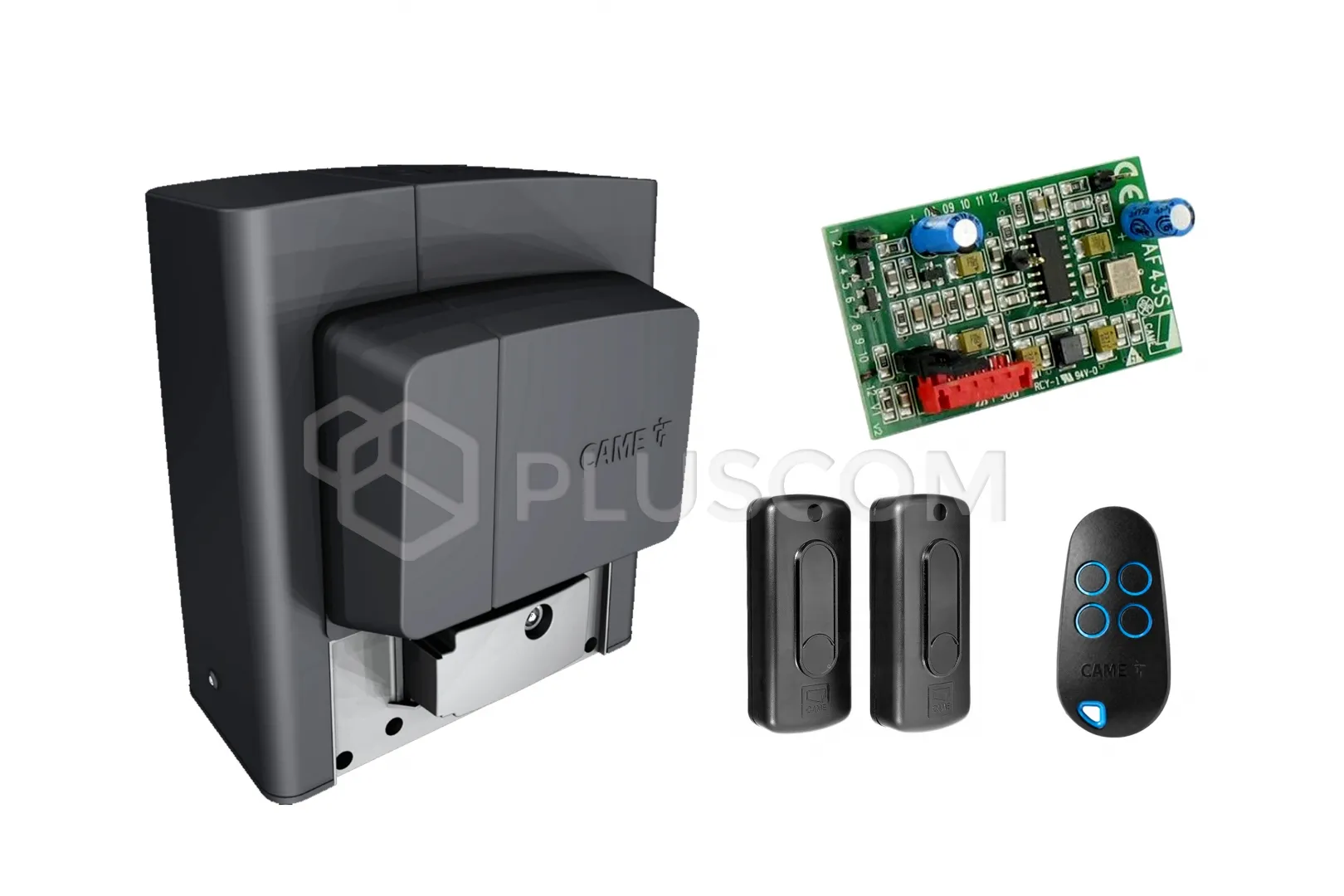

SET CONTAINS:
|
CAME BKS18AGS Set
|
The BK series driveis a reliable solution for group
operations crossings in housing estates, factories and utility buildings
public, etc., as well as intensive use.
It is equipped with a built-in control panel with a graphic display radio
decoder and mechanical limit switches.
The most important advantages of the drive and the set
include:
- possible connection to the cloud using CAME CONNECT technology
- self-diagnosis of safety devices
- possibility to install magnetic limit switches
- direct control of CAME keyboards and readers using cards R700 and
R800
- possibility to connect the RIO system
- control panel with a clear display and easy menu
- ability to remember 250 different users
- gear module for rack - 4
- possibility to connect an 8k2Ω resistive safety strip
The drive is compatible with CAME CONNECT technology up to advanced
management and remote control of the installation.
AT04EVremote control provides dynamic code radio control
variable frequency of 433.92 MHz, which gives a high level of security use, and
makes the code impossible to copy.
Each time you press the transmitter button, one of over 4 is sent billions of
possible code combinations according to a complex algorithm that only the
receiver can decode it. This technique makes cloning impossible code being
sent.
DIR Photocells are distinguished by their modern and very
modern appearance small sizes. Thanks to the use of the IP54 tightness class
and appropriate mounting accessories, DIR photocells can be mounted both
indoors and outdoors and outside.
They have a modular structure, so they can be installed at different heights.
The principle of operation of the DIR photocell is based on synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver works only with the
appropriate transmitter, eliminating thus, there is the possibility of signal
interference from external sources.
The
AF43S frequency card, included in the set, works in
frequency 433.92 MHz and supports TOP and TAM fixed code control and ATOMO
variable code.
TECHNICAL DATA:
- Maximum gate weight: 1800 kg
- Maximum gate length: 20 m
- Control board power supply: 230 V AC (50/60 Hz)
- Motor power supply: 230 V AC (50/60 Hz)
- Current consumption: 4.5 A
- Maximum power: 480 W
- Travel speed: 10.5 m/min
- Efficiency: 50%
- Thrust force: 1150 N
- Capacitor: 31.5 μF
- Gear: Module 4
- Housing: IP54
- Operating temperature: -20 ~ 55°C
- Weight: 19.5 kg
- Dimensions: 360×325×255 mm
